Introduction:
This 4 pin pogo connector is a right angle female magnetic terminal designed for precise 2.2mm pitch docking. It utilizes high-strength N52 nickel-plated magnets to facilitate automatic self-alignment for secure connectivity. The HBI59 brass contacts are finished with 3u” gold plating, supporting a 3A current rating at 5V for efficient power delivery. A hi-temp thermoplastic housing ensures mechanical stability across a temperature range of -30°C to +85°C. This assembly provides a durable quick-release charging and data link for smart wearables and modular industrial electronics requiring a space-saving vertical interface.
Key Features
- Magnetic Alignment: N52 magnets enable automatic self-aligning secure docking.
- High Power: Supports 3A current for efficient power delivery links.
- Space Saving: Right angle orientation optimizes compact device housings.
- Precision Pitch: 2.2mm pitch ensures stable modular circuit integration.
- Durable Contacts: Gold-plated brass contacts prevent oxidation and corrosion.
Main Specifications:
General Information:
| Product No.: | PH1-C22H47-04-FHP | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 4 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Rounded Rectangular | |
| Mounting Orientation: | Right Angle | |
| Pitch(mm): | 2.2mm | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 3A | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | Hi-Temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | HBI59 | |
| contact plating: | 3u” Gold plated over Nickel | |
| Spring Material: | SUS | |
| Magnet: | N52, Nickel plated |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

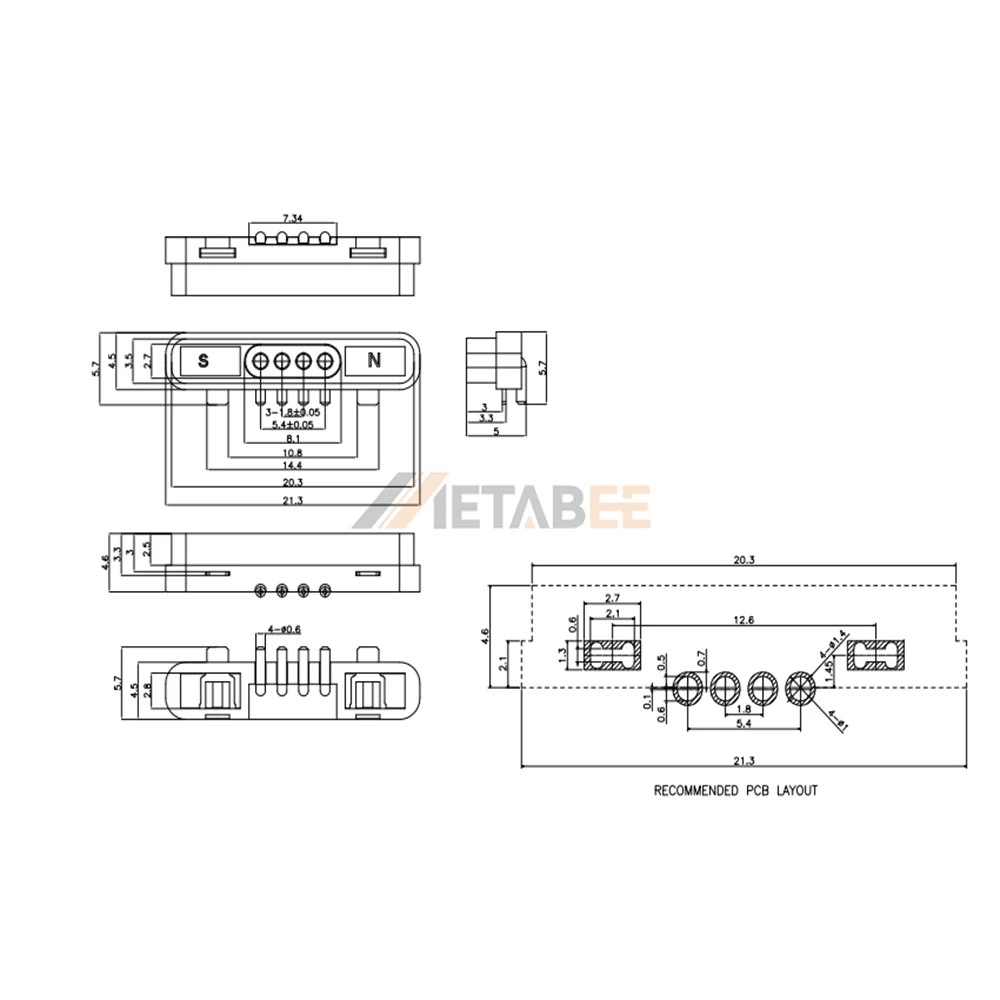

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
