Introduction:
A robust network link relies on the single-port RJ45 magnetic transformer jack, which efficiently handles standard 10/100 Base-T Fast Ethernet data traffic. Full electromagnetic interference protection is guaranteed by a premium nickel-plated brass shield during operation. The black hi-temp thermoplastic housing incorporates a practical board guide and solder retention features to ensure strict mechanical stability on the printed circuit board. Clear visual status tracking is provided by integrated green and yellow LEDs neatly positioned within the tab-up profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20mΩ to secure flawless long-term signal clarity from 0°C to 70°C.
Key Features
- 10/100 Base-T Speed: Manages Fast Ethernet data transmission reliably.
- Brass Metal Shielding: Nickel-plated housing blocks signal interference effectively.
- Hi-Temp Thermoplastic: Durable black housing withstands severe soldering heat.
- Enhanced PCB Mounting: Board guide and solder retention ensure stability.
- Status Indicator LEDs: Green and yellow lights show network activity.

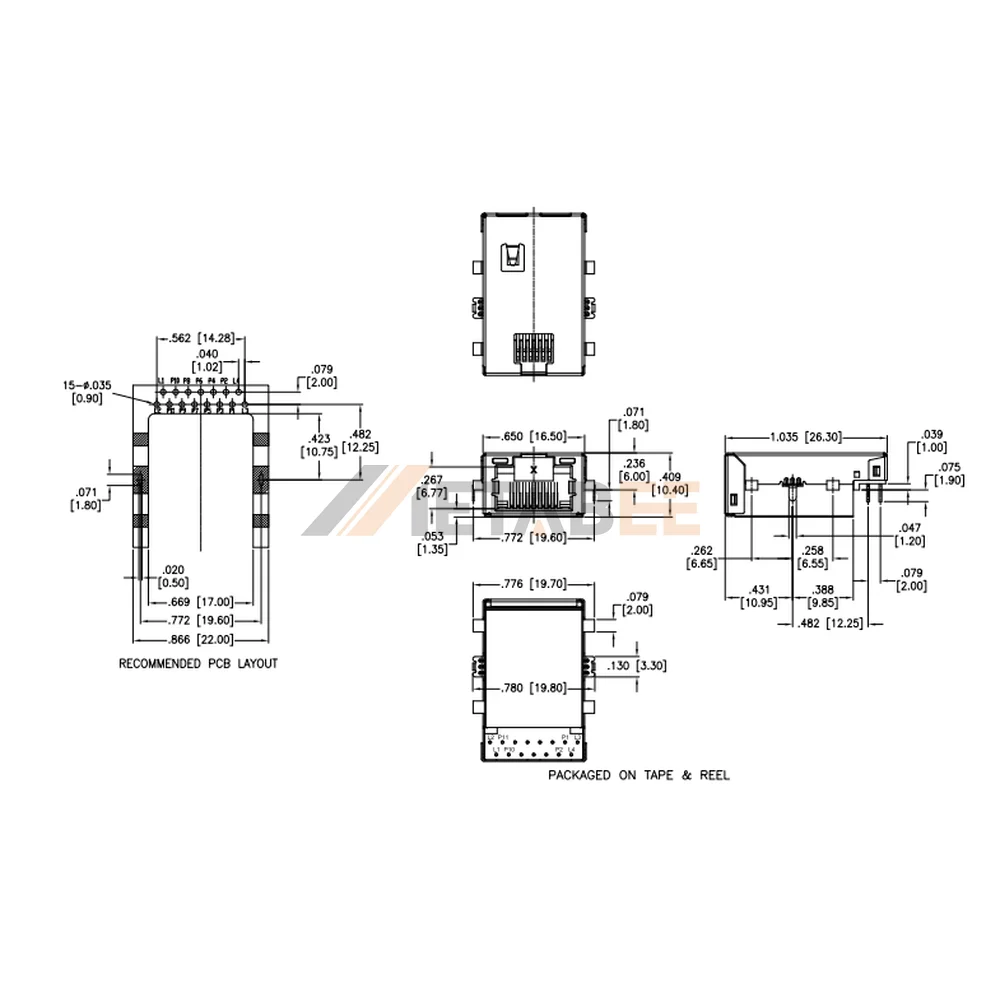

Main Specifications:
General Information:
| Product No.: | MTJ-88BX1-FS-LH-M5C-HT-TR | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
