1×1 Port 8P8C RJ45 Female Connector Socket, Shielded With EMI Finger, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a single port shielded PCB RJ45 modular jack connector designed for robust through hole mounting in data-intensive networking environments. It features a nickel-plated brass shell that provides a full shield against electromagnetic interference to ensure signal clarity. The internal housing is made of Nylon46 hi-temp thermoplastic, allowing the part to withstand intense industrial soldering heat without warping. Integrated yellow and green LEDs allow users to monitor link status and activity immediately. Gold over Nickel plated Phosphor Bronze contacts support a standard 1.5A current while maintaining a high insulation resistance of 1000MΩ. Technicians utilize this reliable Tab-Up interface for industrial controllers and various telecommunication hardware.
Key Features
- Full EMI Shielding: Metallic brass shell protects signals from interference.
- Integrated Link LEDs: Yellow and green lights show network activity.
- Hi-Temp Nylon46 Housing: Survives intense heat during industrial wave soldering.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Ensures high conductivity and lasting signal stability.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1-FSM-PG-P114C | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute (C-C), 1500 VDC or AC Peak for 1 minute (C-S) |
Materials and Plating:
| Housing Material: | PBT, glass reinforced | |
| Housing Color: | Yellow, P114C Pantone | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

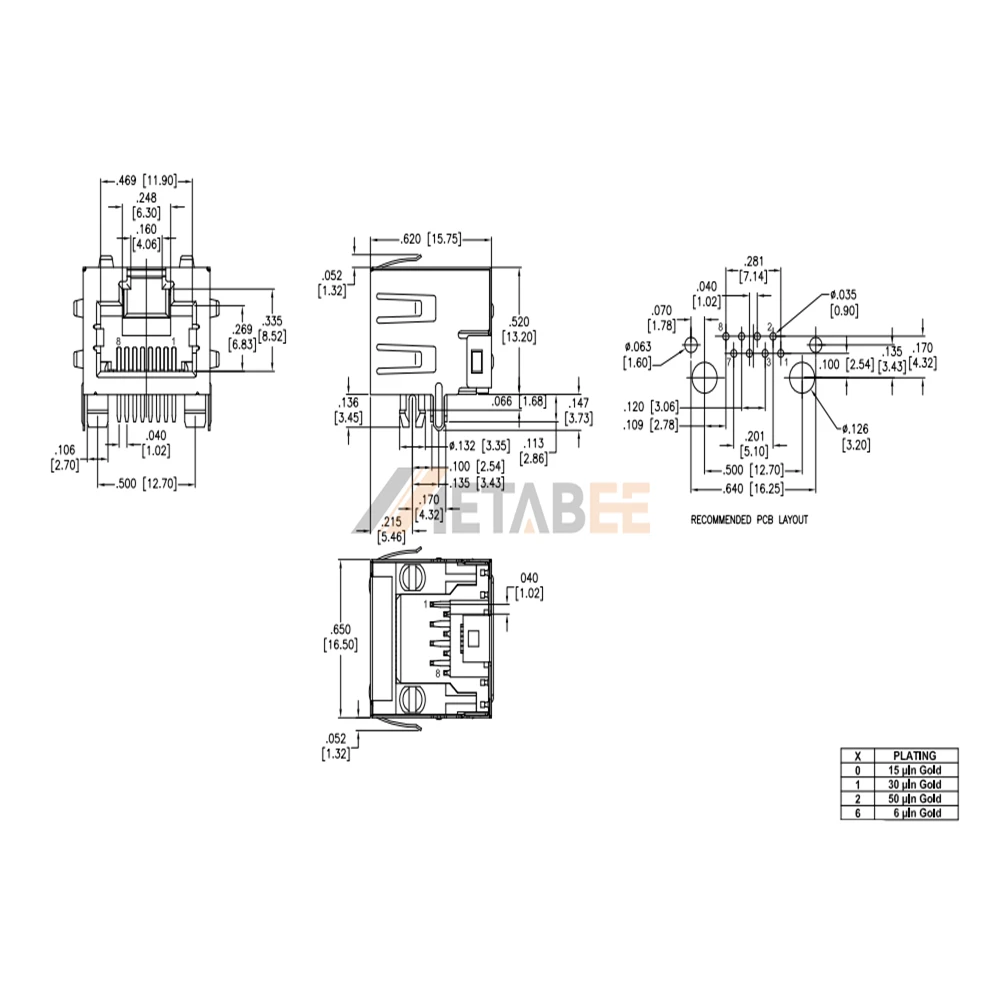

Structure of Modular Jack
