Introduction:
This 1pin magnetic connector is a circular spring-loaded terminal designed for secure docking and charging interfaces. It utilizes a high-strength N35 NdFeB magnet to enable automatic self-alignment, ensuring the plunger centers perfectly on the mating pad for a stable electrical connection. The brass contact features a 5u” Gold over Nickel plating to maintain a maximum resistance of 30 mohms, supporting a 3A current rating and 12VDC power delivery. Encased in high-temperature thermoplastic, it provides reliable mechanical performance over a tested lifespan of 20,000 cycles. This discrete component facilitates efficient power links for wearables and modular hardware in environments from -30°C to +60°C.
Key Features
- Magnetic Alignment: N35 magnet enables automatic self-aligning docking connections.
- Power Capacity: Supports 3A current and 12VDC power delivery.
- Mechanical Life: Tested for 20,000 cycles ensuring long durability.
- Gold Plating: 5u” Gold contacts prevent oxidation and maintain conductivity.
- Compact Design: Circular straight orientation optimizes limited device space.
Main Specifications:
General Information:
| Product No.: | PHR-C3449-02-FVP-570 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 1 Pin | |
| Connector Gender: | Female | |
| Connector Shape: | Circular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | N/A | |
| Working Stroke (mm): | N/A | |
| Life Test: | N/A |
Electrical:
| Rated Current: | 1A | |
| Rated Voltage: | 5V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | (PA46)Hi-Temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | Gold flash plated over Nickel | |
| Spring Material: | N/A | |
| Magnet: | NdFeB |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

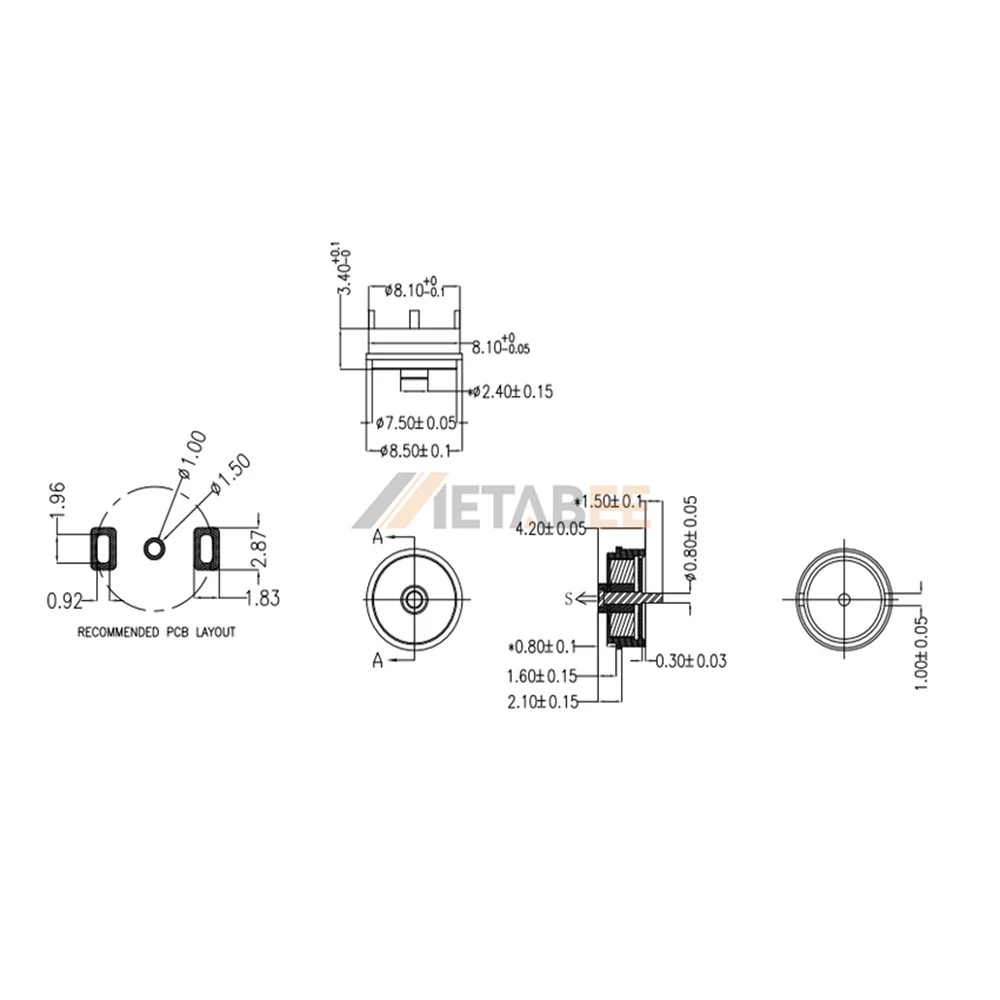

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
