Introduction:
This is a 1P circular magnetic charging connector designed for efficient and reliable power links. It features a straight male pogo pin with a 4.7mm low-profile insulator height. The assembly utilizes powerful N35 NdFeB magnets to enable automatic self-alignment during docking. It supports a 3A current rating and 12V DC for stable charging performance. High-temperature thermoplastic housing ensures durability in demanding environments. Gold-plated brass contacts maintain a low resistance of 30 mohms for superior conductivity. This connector facilitates effortless charging in smart wearables and compact electronic modules.
Key Features
- Magnetic Alignment: N35 magnet enables easy automatic self-aligning connection.
- Standard Rating: Supports 3A current and 12VDC power delivery.
- Low Profile: 4.7mm height optimizes space in compact device housings.
- Durable Contacts: Gold-plated brass ensures low resistance and conductivity.
- Industrial Housing: Hi-temp thermoplastic operates reliably in varied environments.
Main Specifications:
General Information:
| Product No.: | PHR-C4777-02A-MVP-800 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 1 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Circular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | N/A | |
| Working Stroke (mm): | N/A | |
| Life Test: | 20,000 Cycles |
Electrical:
| Rated Current: | 3A | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30 mohms max |
Materials and Plating:
| Insulator Material: | Hi-Temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Brass | |
| contact plating: | 5u” Gold over Nickel | |
| Spring Material: | N/A | |
| Magnet: | N35 NdFeB, Ni-Cu-Ni plated |
Environmental:
| Operating Temperature: | -30°C to +60°C | |
| Flammability Rating: | UL 94 V-0 |

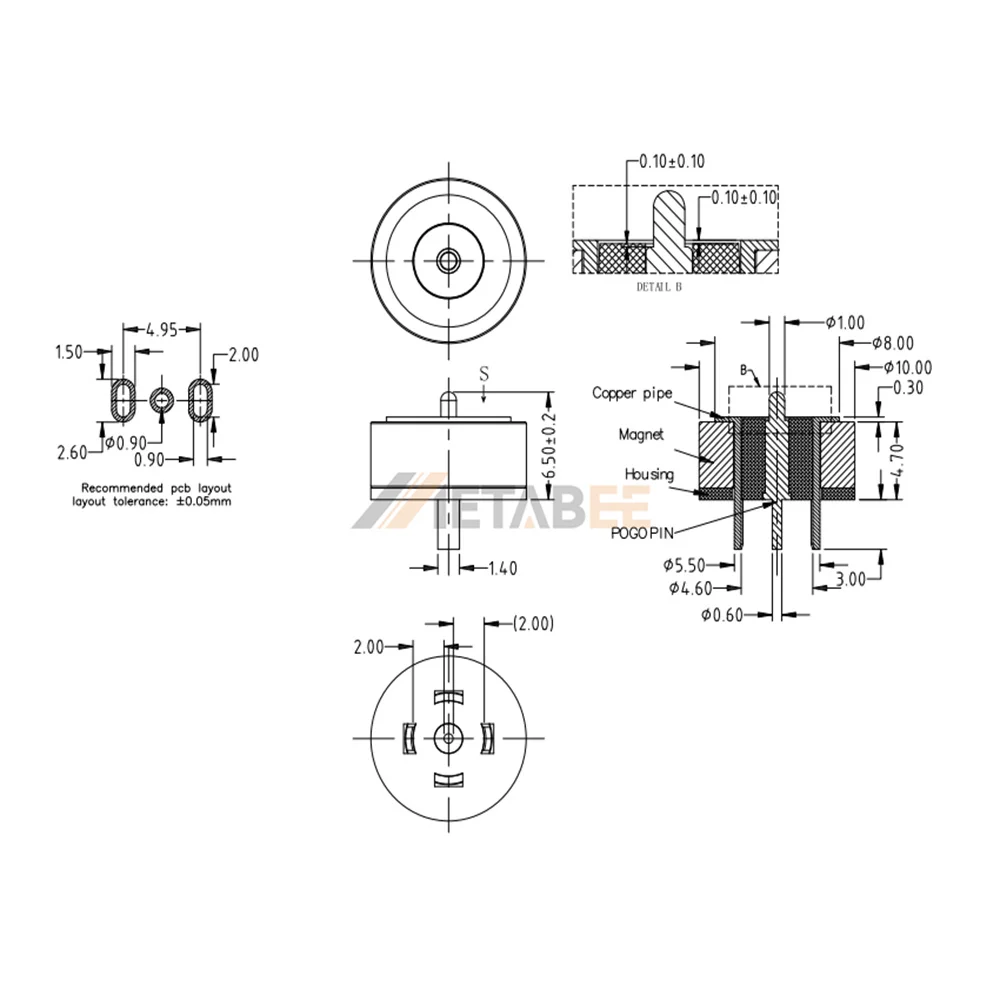

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
