10P10C RJ50 Modular Plug Connector for 24-26 AWG Stranded Flat Cable, Unshielded, Cat3, Long Body
Introduction:
This 10p10c modular connector provides a practical solution for terminating RJ50 communication cables. Designed with 2-prong contacts, the plug effectively pierces the insulation of stranded flat cables to establish consistent electrical paths. Its unshielded Cat3 performance suits standard voice circuits and low-speed data transmissions efficiently. At a 22.5 mm body length, the connector integrates into standard modular interfaces without physical interference. The compatibility with 24-26 AWG wire ensures it works with common gauge sizes found in telecommunication environments. Technicians utilize this specific component for proprietary equipment links and specialized networking hardware where ten-pin connectivity is required.
Key Features
- 10P10C RJ50 Interface: Supports specialized ten-pin data and voice connections.
- 2-Prong Contact: Provides reliable insulation piercing for stranded flat cables.
- Unshielded Cat3 Performance: Meets standard requirements for low-speed communication links.
- 22.5 mm Body Length: Fits standard modular ports in various telecommunication devices.
- 24-26 AWG Compatibility: Works with common wire gauges for versatile installation.
Main Specifications:
General Information:
| Product No.: | MTP-1010 | |
| Series: | MTP | |
| Category: | Modular Plugs | |
| Product Type: | Wire Plug | |
| Number of Positions/Contacts: | 10P10C | |
| Number of Ports: | 1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Cable Mount | |
| Shielding: | Unshielded | |
| Performance Category: | CAT3 | |
| Wire Type: | Stranded | |
| Cable Type: | Flat | |
| Wire range: | 24-26 AWG | |

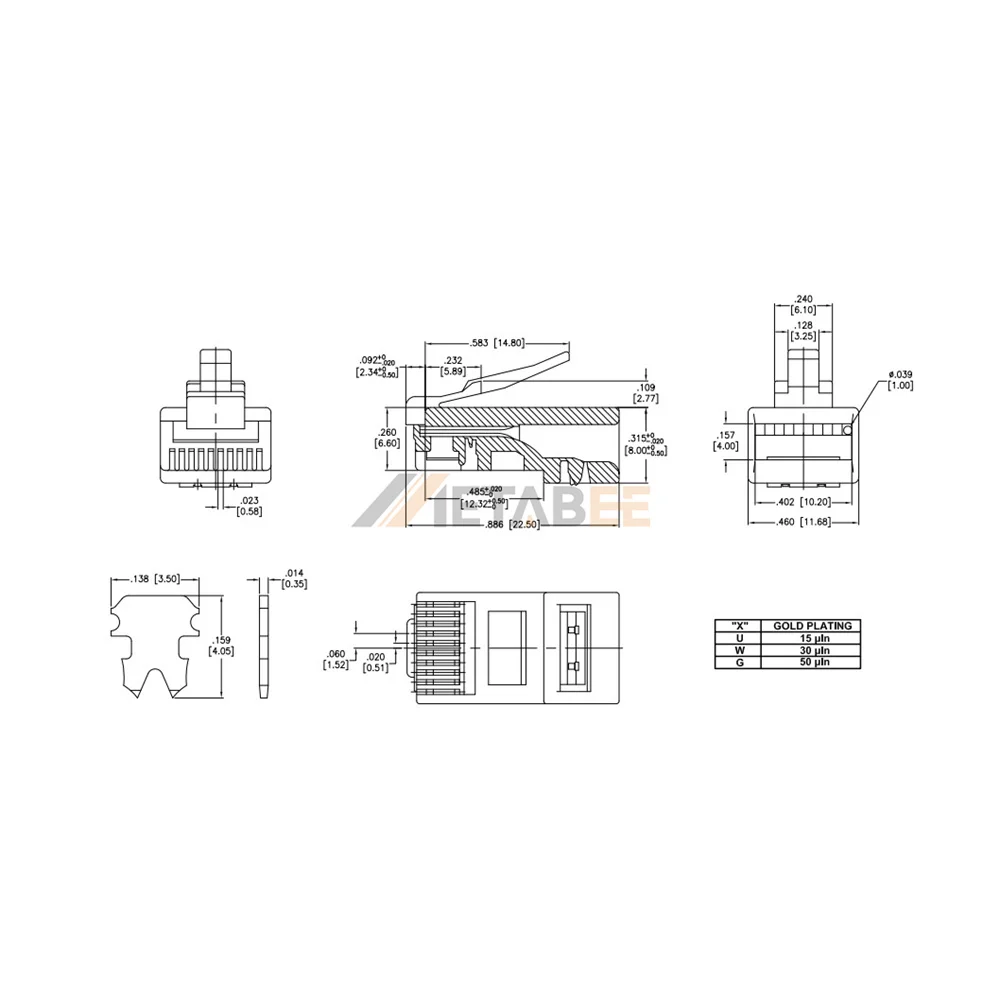

| Body Length: | 22.5 mm |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | N/A | |
| Dielectric withstanding voltage: | N/A |
Materials and Plating:
| Insulator Material: | Polycarbonate | |
| Insulator Color: | Clear | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
