Introduction:
Designed for high-performance networking, this magjack rj45 supports ultra-fast 10G Base-T communication. It complies with Cat6a standards to provide significant bandwidth for servers and workstations. The component features integrated magnetics that filter noise to ensure stable signal integrity. Encased in a full nickel-plated brass shield, it effectively prevents electromagnetic interference during data transmission. The housing is made of hi-temp thermoplastic, allowing it to withstand the thermal stress of industrial soldering. This right-angle, tab-up connector utilizes through-hole mounting for secure placement on printed circuit boards. Its gold-plated phosphor bronze contacts ensure lasting conductivity and reliable connectivity for modern hardware.
Key Features
- Cat6a Performance: Delivers ultra-fast data transmission for high-bandwidth systems.
- Integrated Magnetics: Internal filtering ensures superior signal integrity and noise reduction.
- Full Shielding: Nickel-plated brass housing blocks external electromagnetic interference effectively.
- Hi-Temp Thermoplastic: Durable housing survives extreme industrial wave soldering temperatures.
- Tab-Up Orientation: Top-latch design facilitates easy cable insertion in tight layouts.

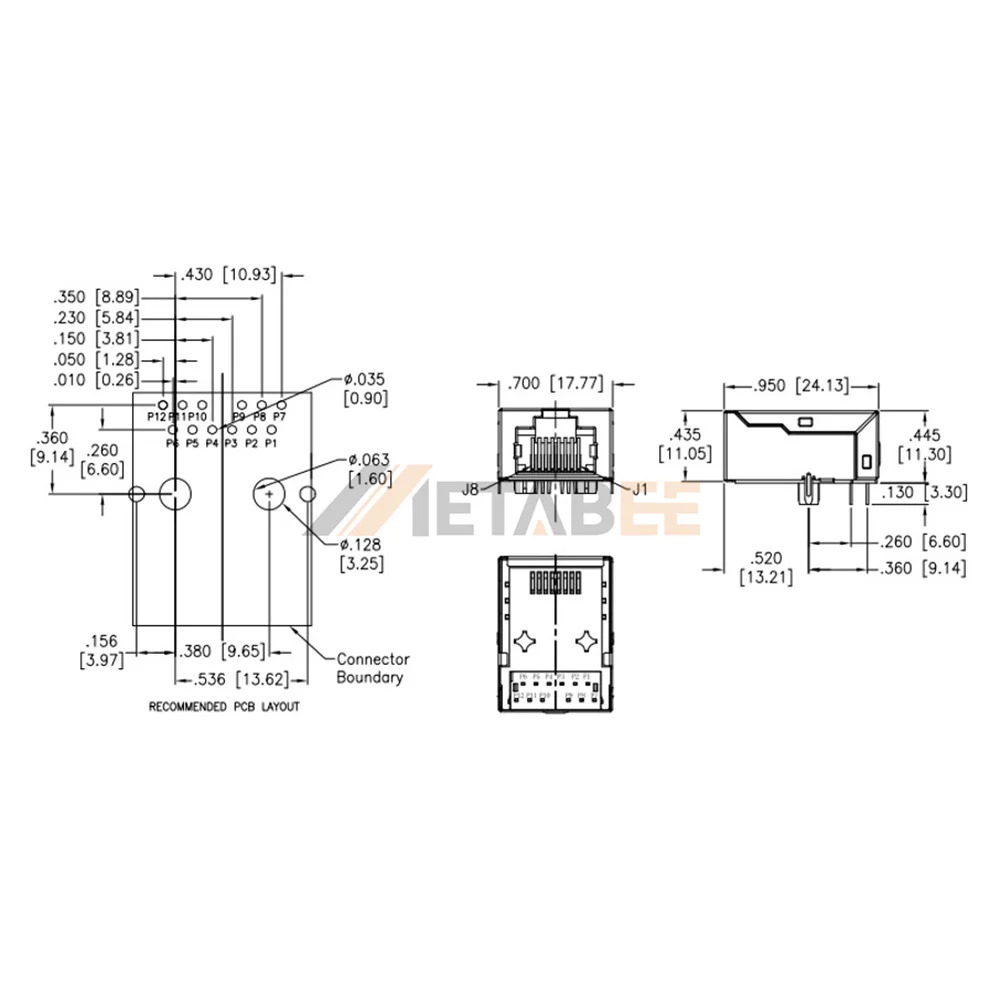

Main Specifications:
General Information:
| Product No.: | MTJ-88SUX1-FS-M245C-HT-WOT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10G Base-T | |
| Performance Category: | CAT6a | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

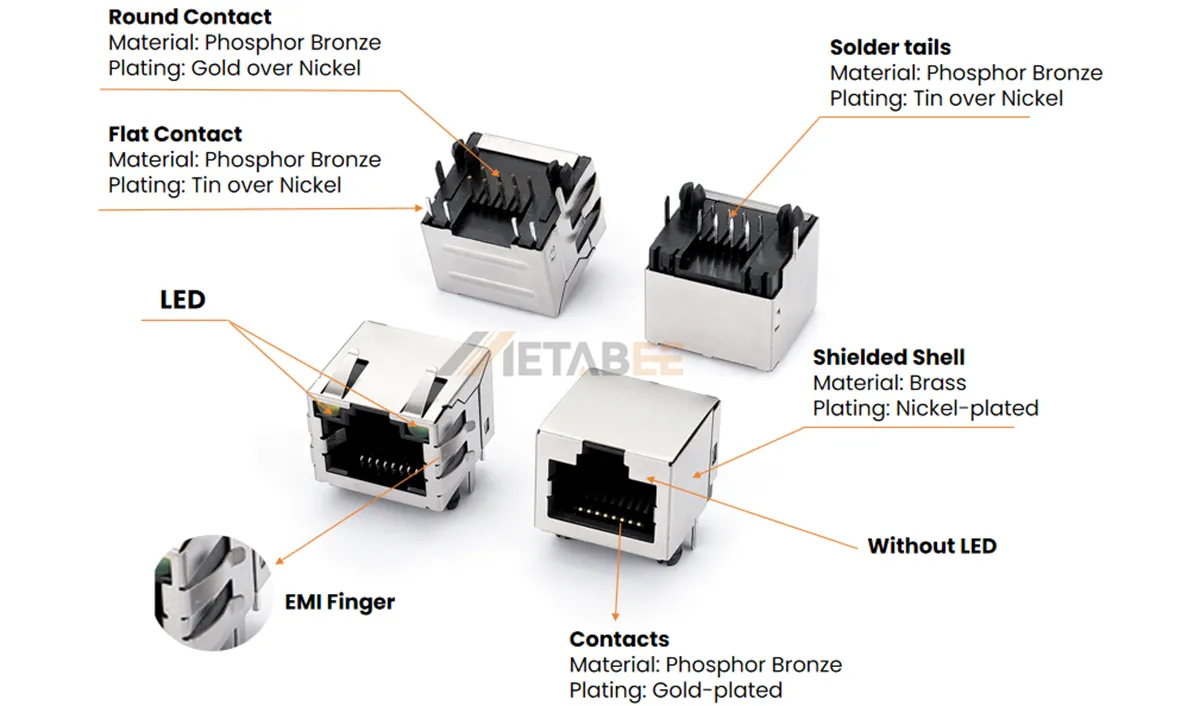

Structure of Modular Jack

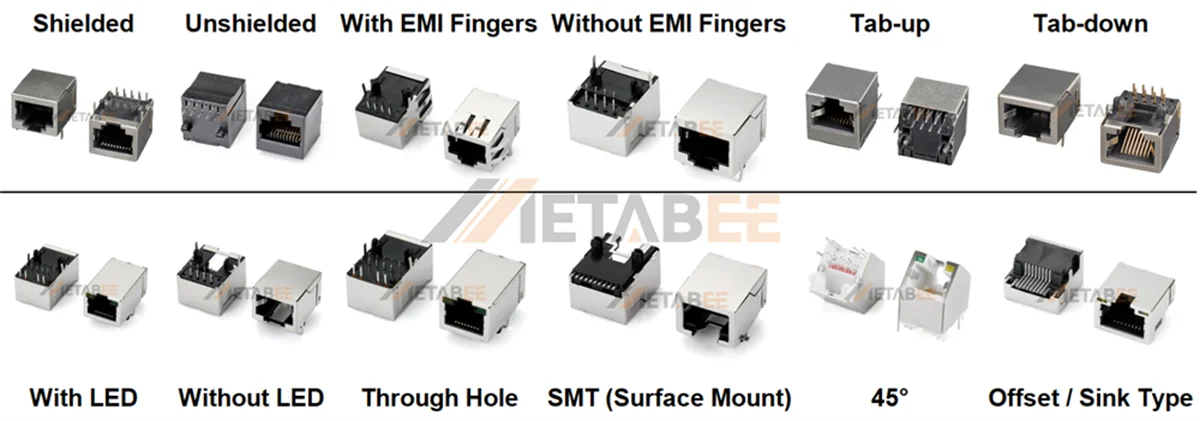

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
