Introduction:

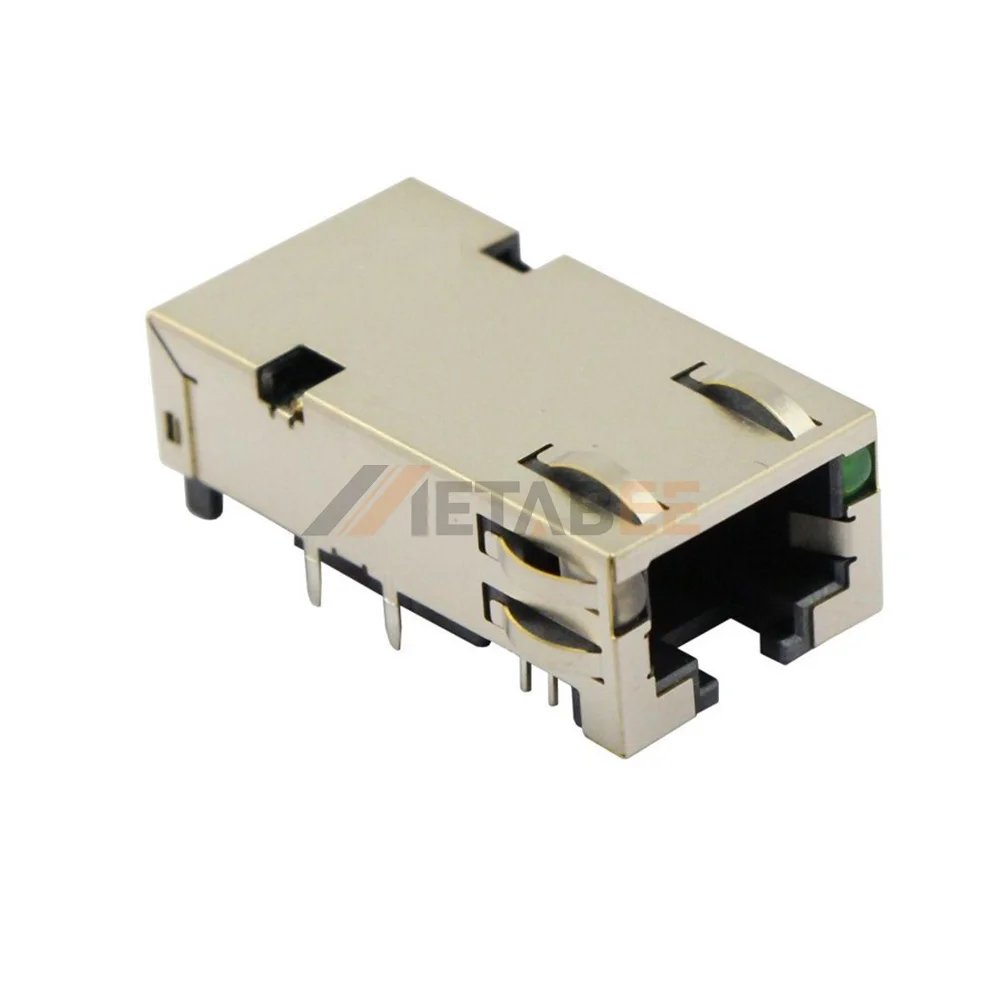

This high-performance RJ45 with integrated magnetics is engineered for ultra-fast 10G Base-T networking applications. It features a standard 8P8C single port design with a tab-down orientation for specific PCB layouts. The component includes built-in magnetic modules that effectively filter signal noise to ensure data integrity. With advanced EMI shielding, the connector prevents interference in demanding environments. This right-angle jack uses through-hole mounting for superior mechanical stability on the circuit board. It also integrates green and yellow LEDs to provide clear status indications. This solution is ideal for high-bandwidth servers and networking equipment requiring reliable high-speed connections.
Key Features
- 10G Performance: Supports ultra-fast data transfer rates up to 10 Gbps.
- Integrated Magnetics: Internal filtering improves signal quality and simplifies design.
- Status Indicators: Bicolor green/yellow LEDs provide clear network activity feedback.
- EMI Shielding: Metal housing blocks external interference for stable data.
- Tab-Down Design: Right angle orientation fits specific PCB edge configurations.
Main Specifications:
General Information:
| Product No.: | MTJ-88BAX1-FS-PG-LG-M383C-WOT | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10G Base-T | |
| Performance Category: | CAT6a | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield, EMI Finger | |
| LED indicator: | Left: Green/Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | 0℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
