Introduction:

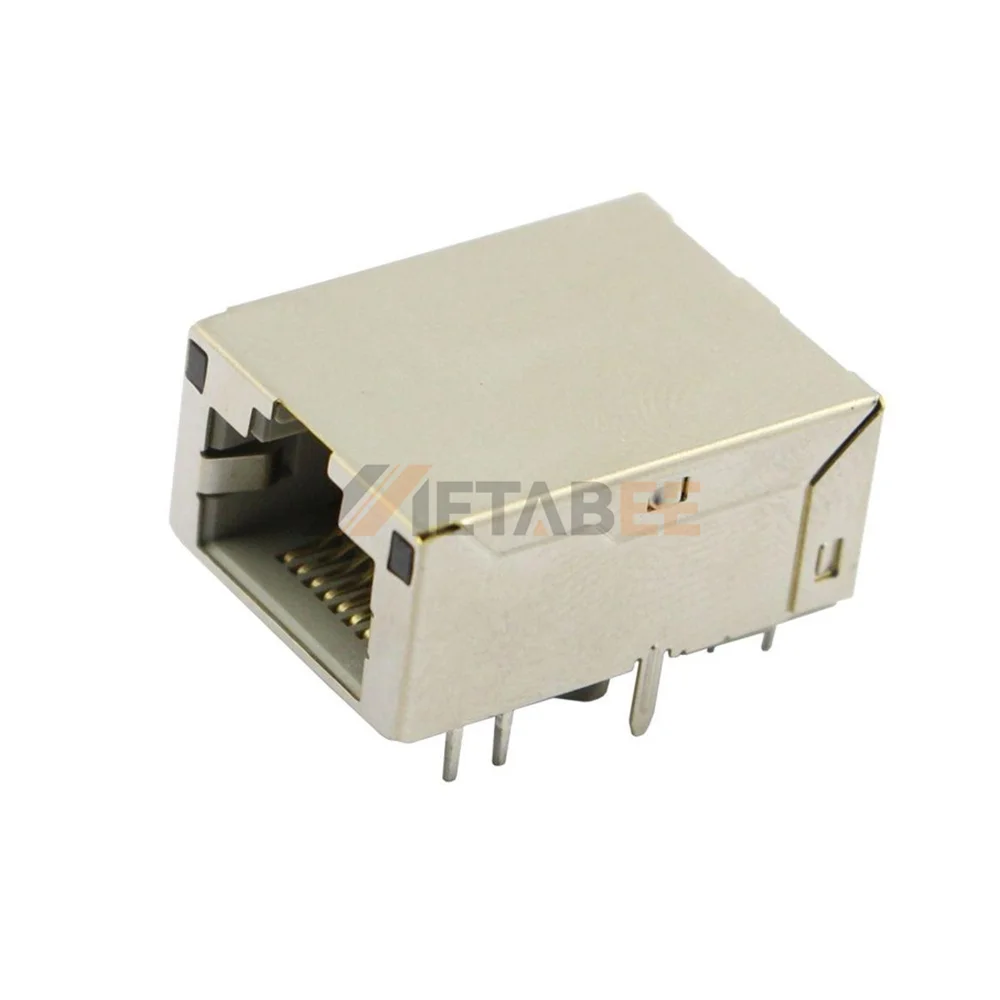

Designed for gigabit networking, this 1000Base-T Ethernet connector component offers stable 1G performance for modern data systems. The integrated magnetics provide essential signal filtering and noise reduction within a compact single port 8P8C design. It features a full nickel-plated brass shield to protect against electromagnetic interference during high-speed transmission. Because it utilizes a tab-up right-angle orientation, it simplifies cable access while saving valuable space on the printed circuit board. Integrated yellow and green LEDs allow for instant visual feedback of the connection and link status. With a durable thermoplastic housing and gold-plated phosphor bronze contacts, this through-hole modular jack ensures long-term conductivity and mechanical stability.
Key Features
- Integrated Magnetics: Internal filtering ensures stable 1000Base-T signal integrity.
- Full Metal Shielding: Nickel-plated brass housing effectively blocks external interference.
- Status LED Indicators: Yellow and green lights provide instant link feedback.
- Tab-Up Orientation: Top-latch design facilitates easy cable insertion in layouts.
- Gold Plated Contacts: Phosphor bronze terminals ensure superior electrical signal conductivity.
Main Specifications:
General Information:
| Product No.: | MTJ-88SUX1-FS-PG-LG-M245C | |
| Series: | MTJ | |
| Category: | High Speed RJ45 Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Performance Category: | CAT6 | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 2250 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold Plating | |
| Shield Material: | Brass, Nickel Plated |
Environmental:
| Operating Temperature: | 0℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
