Introduction:
Gigabit Ethernet networks achieve optimal performance with the 1000Base-T RJ45 magnetic jack, featuring a compact surface mount design. A full stainless steel shield with pre-soldering ensures superior electromagnetic interference (EMI) protection for clean signal transmission. The module uses high-temperature thermoplastic to withstand demanding reflow soldering processes on the PCB. Board locks are integrated to provide mechanical stability and secure retention during assembly. This tab-up connector operates without LEDs for applications requiring a streamlined visual profile. Phosphor bronze contacts with gold plating guarantee durable connectivity within a standard 0°C to 70°C temperature range.
Key Features
- Gigabit Performance: Supports high-speed 1000Base-T data transmission flawlessly.
- Surface Mount Design: Compact SMT mounting simplifies modern PCB assembly.
- Stainless Steel Shielding: Pre-soldered shield provides robust electromagnetic protection.
- Heat Resistance: High-temp thermoplastic withstands demanding reflow soldering.
- Stable Mounting: Integrated board locks ensure secure physical PCB retention.
Main Specifications:
General Information:
| Product No.: | MTJ-88TUX1-FS-SMT-M107 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | 1000Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

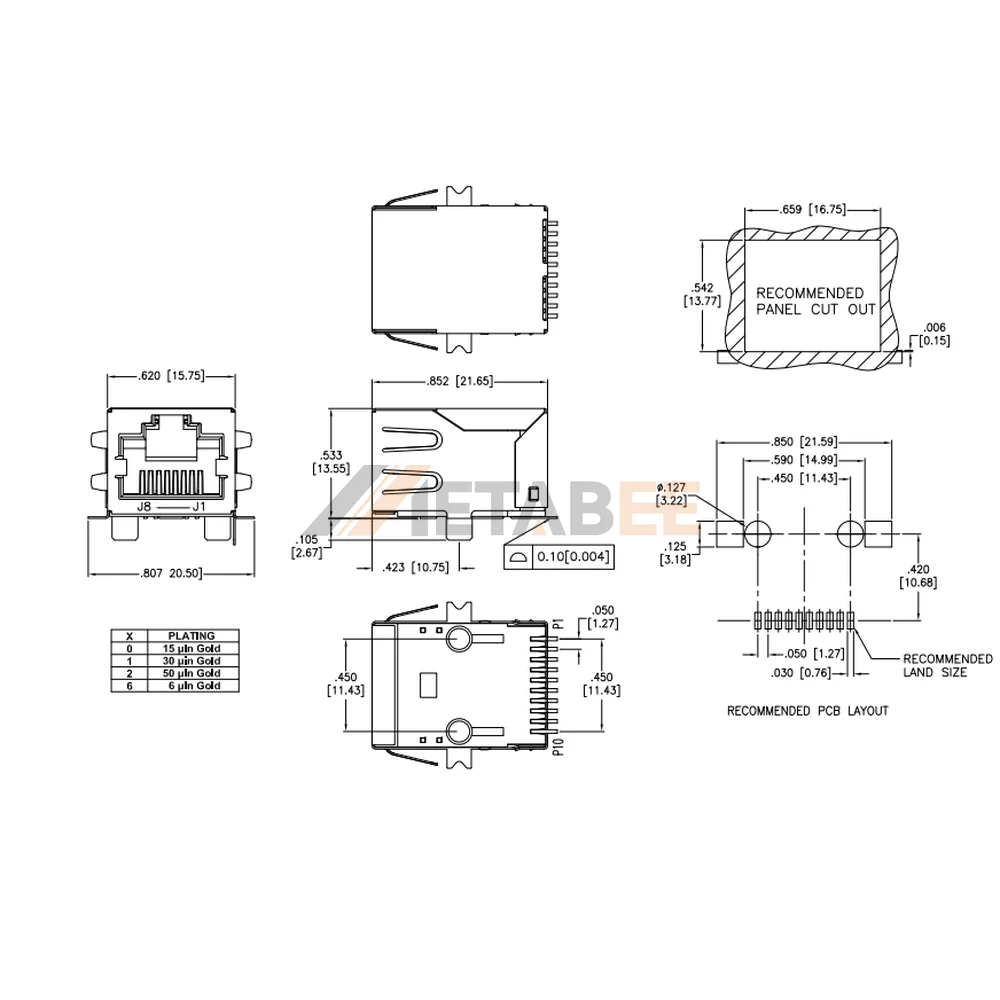

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
