Introduction:
High-performance Gigabit network systems benefit immensely from the shielded PoE jack RJ45, engineered specifically for rigorous 1000 Base-T applications. Extreme thermal environments from -40°C to 85°C present no functional challenges to the robust black thermoplastic housing. A premium nickel-plated brass shield fully encapsulates the component, effectively rejecting severe electromagnetic interference during simultaneous power and data transmission. Precise printed circuit board installation is guaranteed by a practical board guide integrated within the right-angle, through-hole architecture. Visual link monitoring relies on multi-color green/orange and yellow LEDs positioned flawlessly within the tab-up profile. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20mΩ to secure long-term signal clarity.
Key Features
- 1000 Base-T PoE: Delivers fast Gigabit Ethernet and power simultaneously.
- Industrial Temperature Range: Operates reliably across extreme -40°C to 85°C environments.
- Brass Metal Shielding: Nickel-plated housing completely blocks severe electromagnetic interference.
- Thermoplastic Insulation: Durable black housing incorporates a practical board guide.
- Multi-Color Status LEDs: Green/orange and yellow lights display precise network activity.
Main Specifications:
General Information:
| Product No.: | MTJ-88CX1-FSP-PG-L29-M70C1-WOT-B | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green/Orange, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

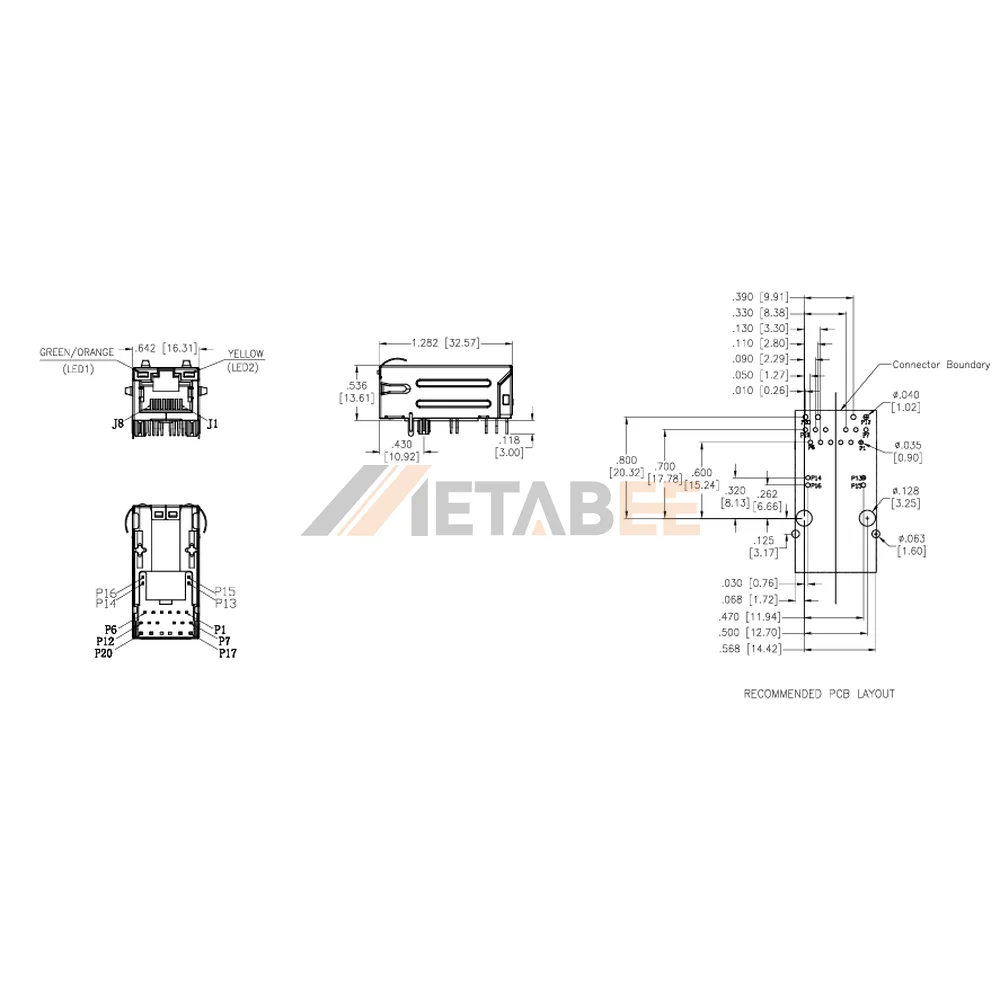

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
