Introduction:
High-speed Gigabit data transfer relies on a robust connection, making the magjack Ethernet connector a perfect fit for 1000Base-T networks. A fully nickel-plated copper alloy shield surrounds the component to block electromagnetic interference during intense data traffic. To ensure a stable right-angle through-hole installation on the printed circuit board, the black thermoplastic housing utilizes a practical board guide. Clear visual status updates are delivered by dual green and yellow LEDs integrated seamlessly into the tab-down profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 30mΩ, securing flawless long-term signal clarity across standard commercial temperatures.
Key Features
- 1000 Base-T Speed: Delivers reliable Gigabit Ethernet data transmission flawlessly.
- Copper Alloy Shielding: Nickel-plated metal housing blocks electromagnetic interference completely.
- Thermoplastic Insulation: Durable black housing incorporates a secure board guide.
- Integrated Status LEDs: Green and yellow lights display precise network activity.
- Low Resistance Contacts: Gold-plated copper alloy strictly maintains <30mΩ electrical resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FSD-PG-LH-M235W | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 125VAC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

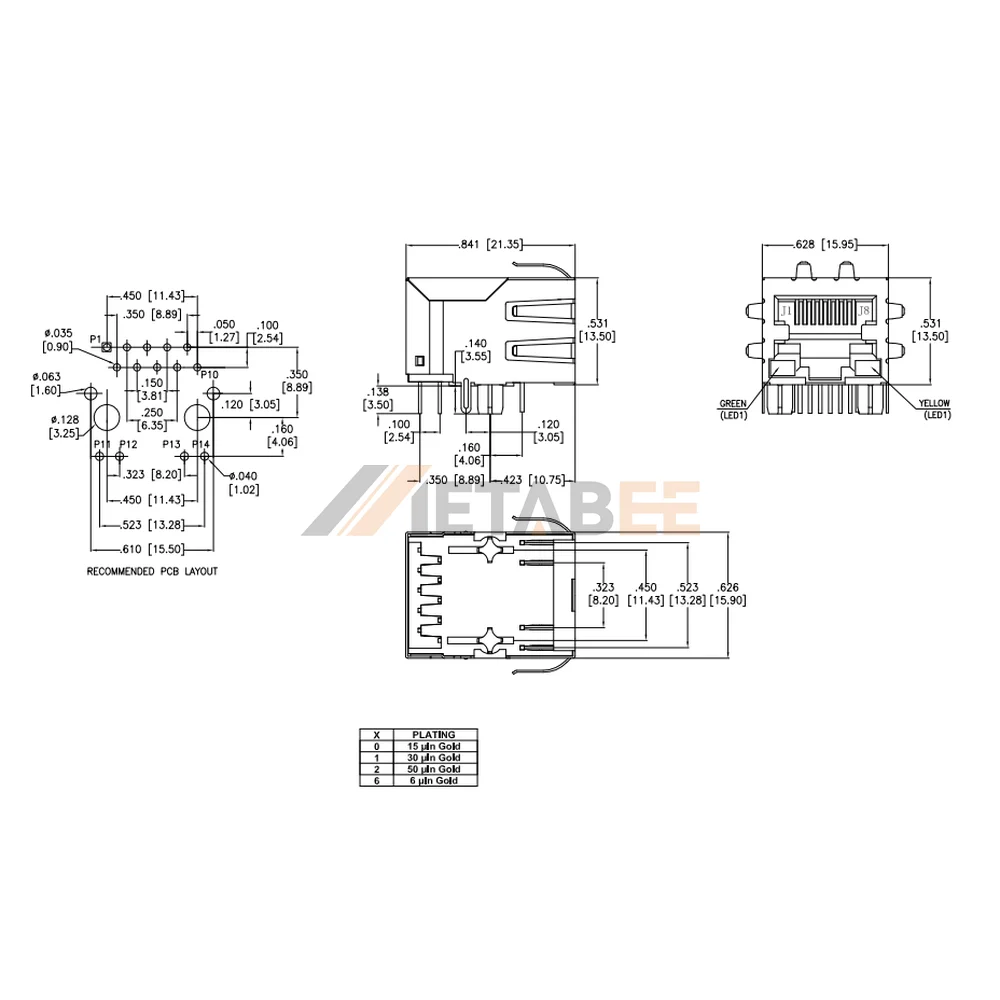

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
