Introduction:
Across various communication platforms, the RJ45 Jack with Magnetics maintains consistent 10/100 Base-T data transmission for high-quality network links. Top-entry vertical orientation allows for high-density board layouts where space is at a premium. Nickel-plated brass shielding provides robust EMI protection to ensure signal integrity across the standard commercial temperature range. Stable mechanical retention on the PCB depends on through-hole termination paired with integrated board locks and solder retention features. Built-in green and yellow LEDs offer immediate visual status feedback within the tab-up profile. Gold-plated copper alloy contacts ultimately guarantee electrical resistance stays below 20mΩ in this RJ45 jack with magnetics.
Key Features
- 10/100 Base-T Speed: Supports consistent Ethernet data transmission rates.
- Vertical Top Entry: Optimizes board space on high-density PCBs.
- Full Brass Shielding: Nickel-plated housing blocks severe signal interference.
- Secure PCB Mounting: Board locks and solder retention ensure stability.
- Low Resistance Contacts: Gold-plated alloy ensures under 20mΩ conductivity.
Main Specifications:
General Information:
| Product No.: | MTJ-88AX1-FSN-LH-M5 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

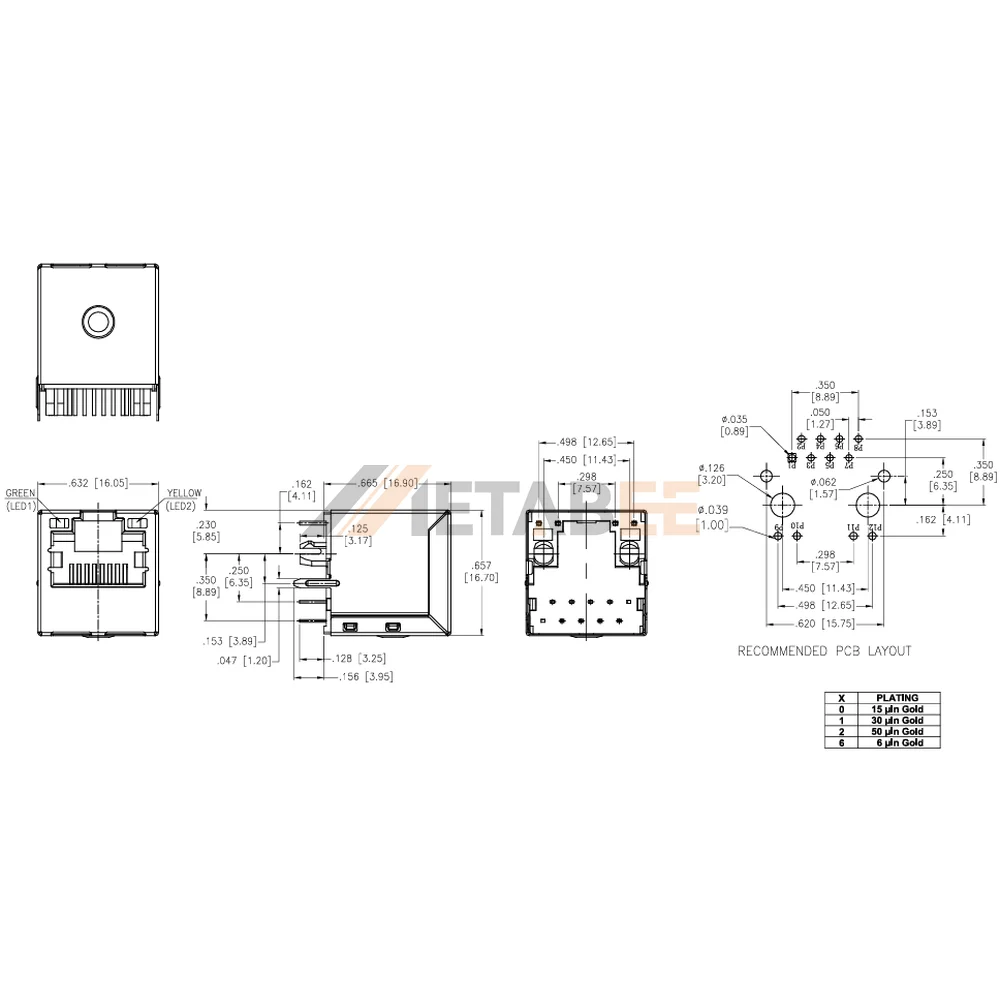

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
