1 Port Surface Mount RJ45 Jack, 8P8C, Unshielded, Tab-Down, Through Hole, R/A, No LED
Introduction:
This is a 1-port surface-mount RJ45 jack designed for efficient automated assembly on modern printed circuit boards. It is manufactured from hi-temp thermoplastic to survive intense reflow soldering processes without any structural damage. The Phosphor Bronze contacts feature a durable Gold over Nickel plating to ensure high conductivity and long-term resistance to oxidation. Utilizing a Tab-Down right angle configuration, this component optimizes vertical board space while supporting a stable current rating of 1.5A. The connector operates reliably across a temperature range of -40°C to +85°C and provides a high insulation resistance of 1000MΩ for electrical safety. Technicians utilize this unshielded interface for telecommunication devices and networking hardware requiring a compact SMT footprint.
Key Features
- Surface Mount Design: Facilitates efficient automated SMT assembly processes.
- Hi-Temp Thermoplastic: Withstands intense heat during industrial reflow soldering.
- Gold Plated Contacts: Ensures superior conductivity and lasting oxidation resistance.
- Tab-Down Configuration: Optimizes vertical space for compact PCB layouts.
- Industrial Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-880X1-N-SMT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

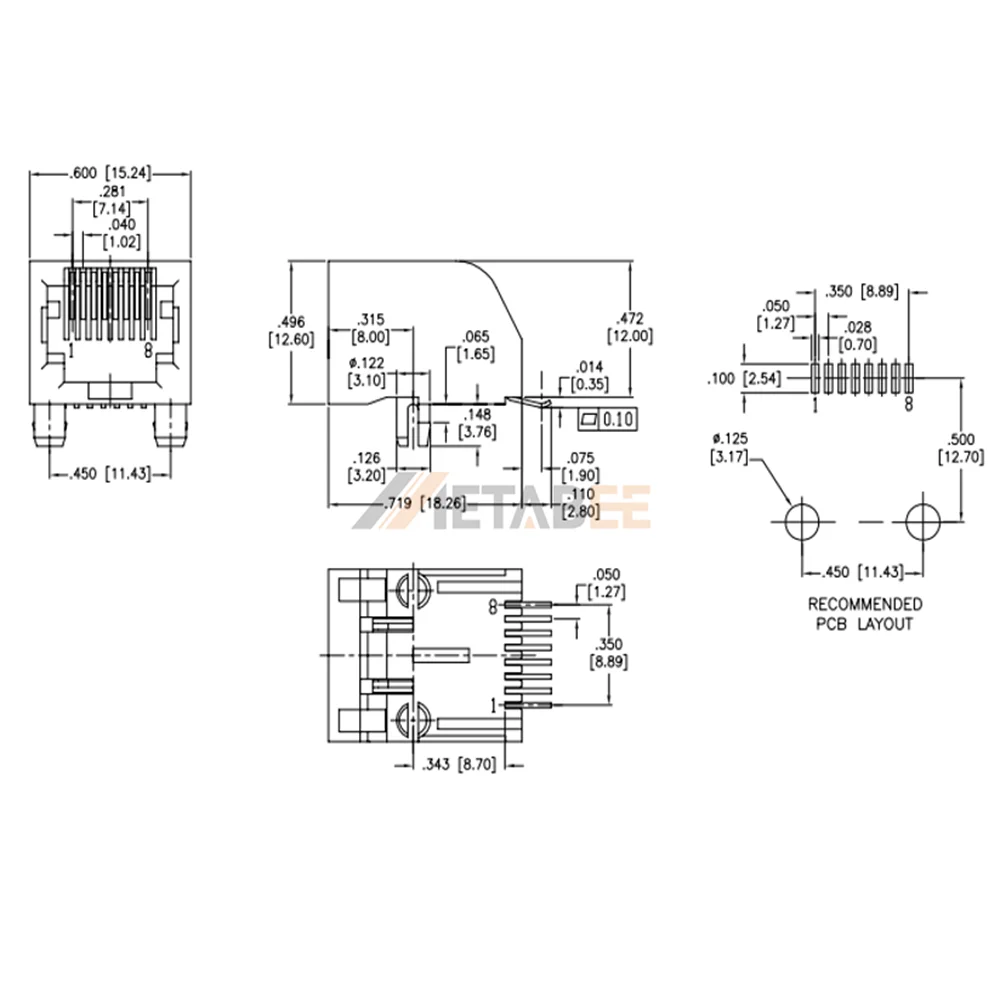

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
