1 Port RJ45 Right Angle Jack with LEDs, 8P8C, Shielded, Tab-Up, Through Hole, R/A, Yellow/Green
Introduction:
This is a single port shielded RJ45 right angle jack designed for reliable through hole mounting on high-speed networking circuit boards. It features a robust nickel-plated metal alloy shell that provides full EMI shielding to protect data integrity from external interference. Constructing the housing with hi-temp thermoplastic allows the component to survive intense industrial wave soldering while maintaining an insulation resistance of 500MΩ. Users benefit from the integrated yellow and green LED indicators that provide immediate link status diagnostics at a glance. Since the Phosphor Bronze contacts use a premium Gold over Nickel finish, the unit supports a consistent 1.5A current across a wide -40°C to +85°C range. Technicians utilize this Tab-Up interface for industrial automation systems and telecommunication hardware requiring secure, unshielded connectivity.
Key Features
- Full EMI Shielding: Nickel plated alloy shell blocks signal interference effectively.
- Integrated Status LEDs: Yellow and green lights offer instant link diagnostics.
- Gold Plated Contacts: Ensures high conductivity and lasting oxidation resistance.
- Hi-Temp Housing: Withstands intense heat during industrial wave soldering processes.
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
Main Specifications:
General Information:
| Product No.: | MTJ-88ARX1C-FSM-PG-LG-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute (Contacts), 1500 VAC for 1 minute (Shell) |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Metal Alloy, Nickel Plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

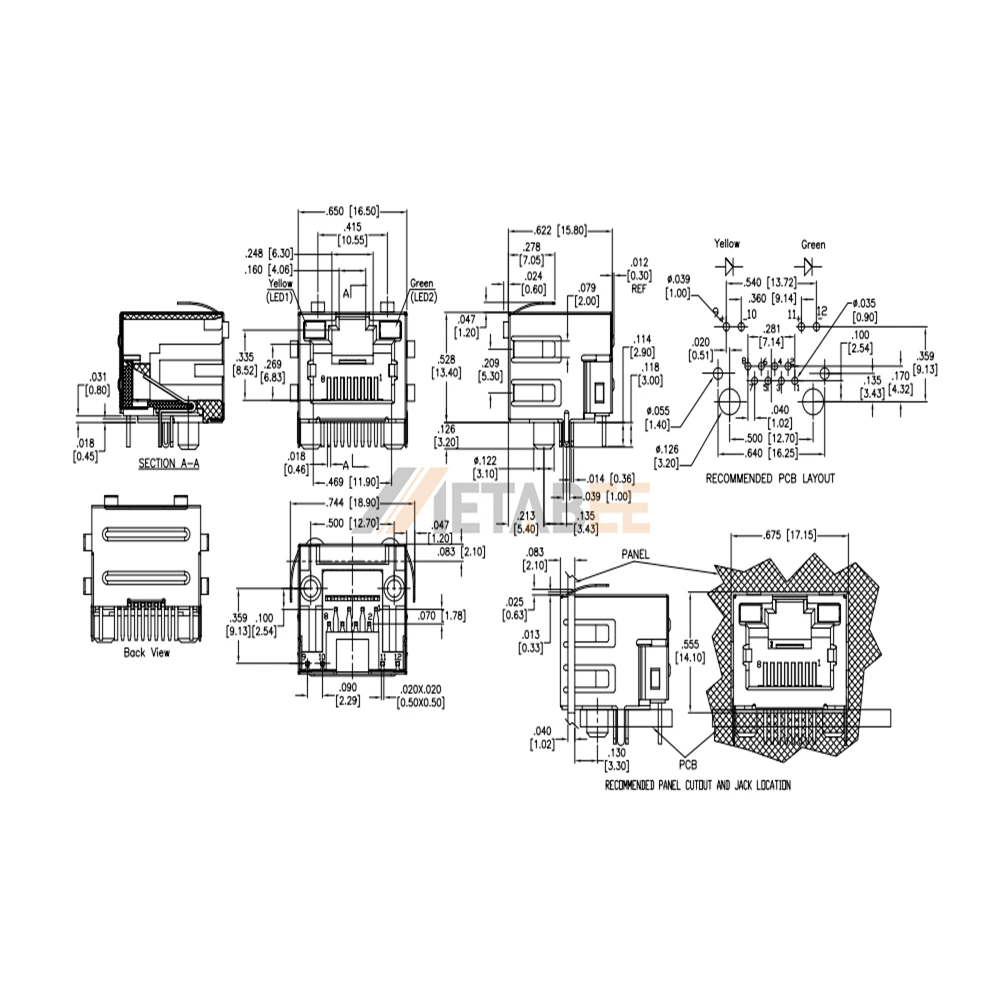

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
