Introduction:
A steady power and data supply is guaranteed with this 1 port RJ45 PoE jack, specifically built for 10/100 Base-T Fast Ethernet networks. Full metal protection against electromagnetic interference is provided by a premium nickel-plated brass shield. To secure the right-angle module firmly onto printed circuit boards, the black thermoplastic housing utilizes a practical board guide alongside a solder retention feature. Instant visual feedback relies on integrated green/orange and yellow LEDs positioned neatly inside the tab-up profile. Furthermore, low contact resistance below 20mΩ is achieved through gold-plated phosphor bronze contacts, ensuring excellent signal clarity between 0°C and 70°C.
Key Features
- 10/100 Base-T PoE: Handles simultaneous power and Fast Ethernet data perfectly.
- Brass Metal Shielding: Nickel-plated housing blocks signal interference effectively.
- Board Guide Feature: Enhances PCB retention and precise soldering alignment.
- Multi-color LED Status: Green/orange and yellow lights display network activity.
- Low Resistance Contacts: Phosphor bronze contacts guarantee <20mΩ electrical resistance.

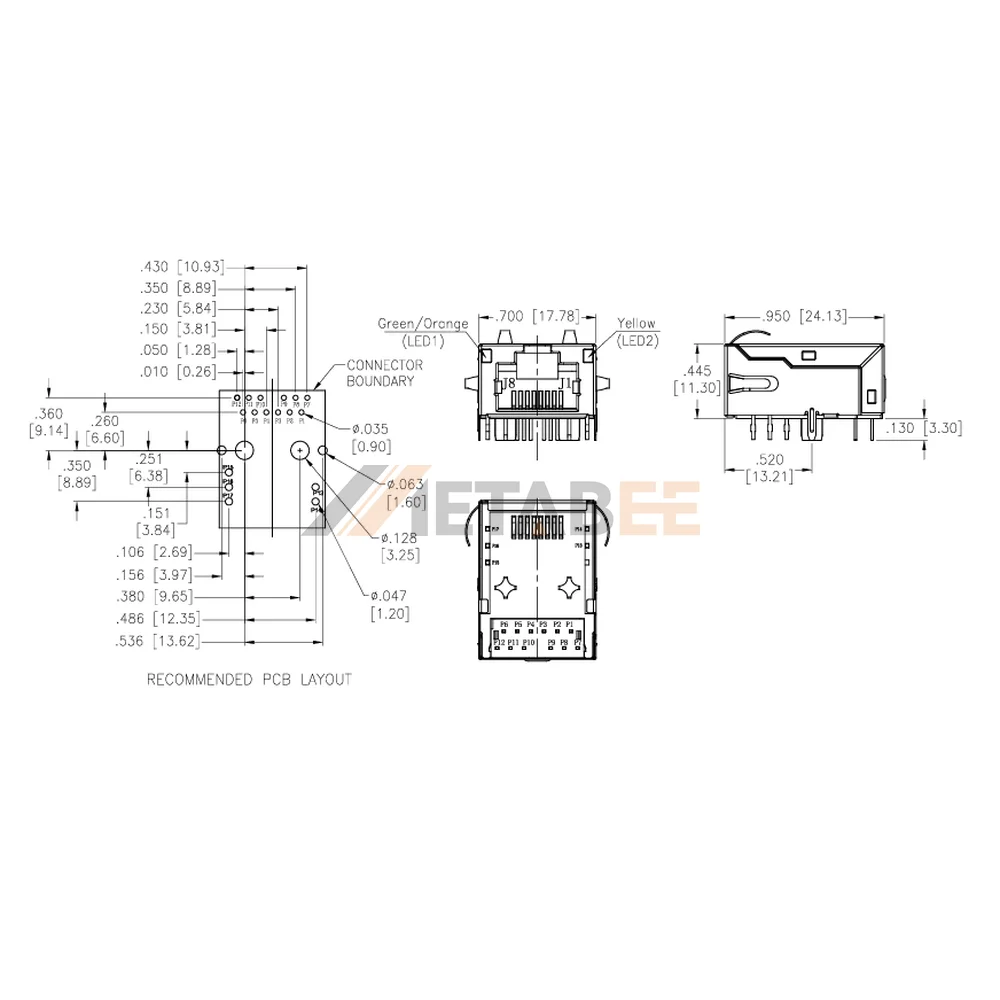

Main Specifications:
General Information:
| Product No.: | MTJ-88SUX1-FS-PG-VL28-M49C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Green/Orange, Right: Yellow |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
