1 Port RJ45 Female PCB Jack Network Ethernet Connector, 8P8C, Tab-Up, Through Hole, R/A, No LED
Introduction:
This is a 1 port RJ45 female PCB jack network ethernet connector designed for reliable through hole mounting on networking circuit boards. Constructed from hi-temp thermoplastic, it survives intense wave soldering heat without any physical deformation. The 8P8C interface features Phosphor Bronze contacts with Gold over Nickel plating to ensure high conductivity and 1.5A current support. By utilizing a Tab-Up right angle configuration, this component effectively optimizes board space while maintaining electrical stability. Technicians utilize this female rj45 connector for standard telecommunication gear and data networking hardware requiring dependable unshielded links.
Key Features
- Tab-Up Configuration: Optimizes vertical space for specialized board layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting oxidation resistance.
- Hi-Temp Thermoplastic: Survives intense heat during industrial wave soldering.
- 8P8C RJ45 Interface: Provides standard network connectivity for modular systems.
- Industrial Temperature Range: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-882BX1Y-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Housing Material: | Hi-temp thermoplastic | |
| Housing Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

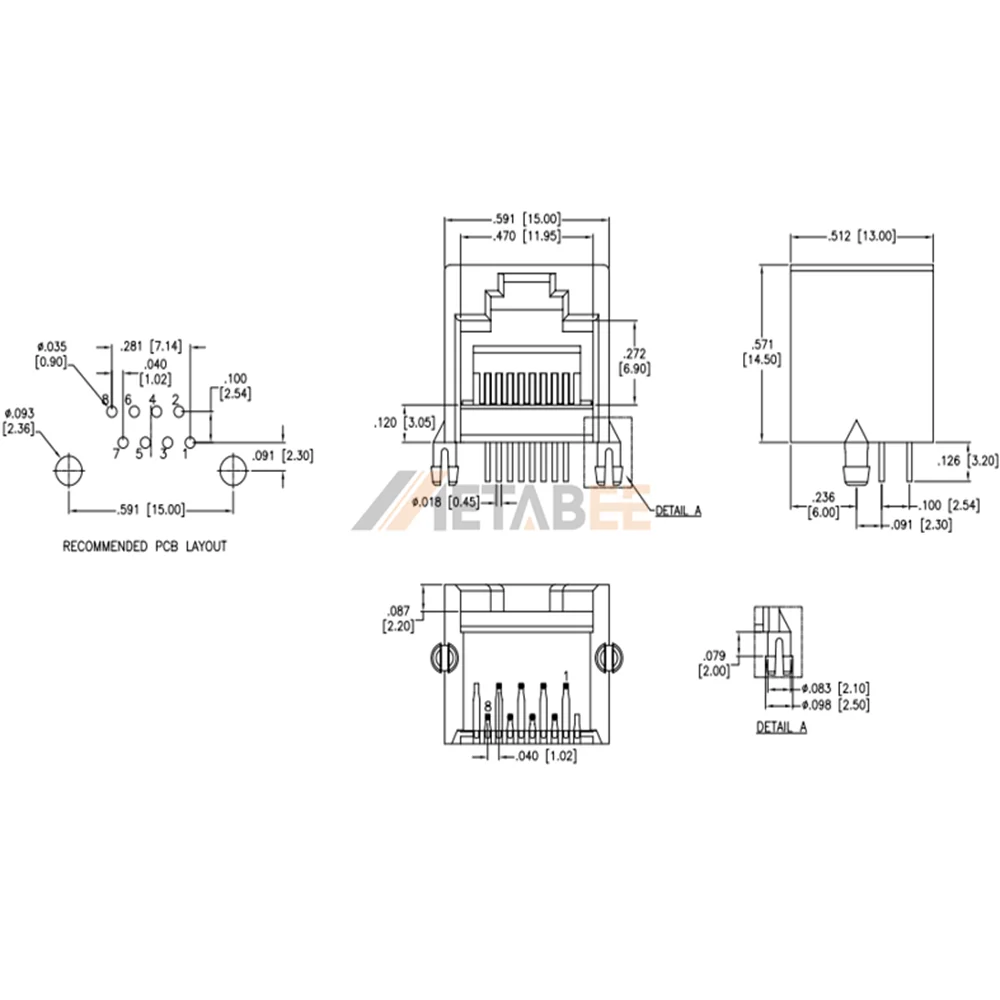

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
