Introduction:
Industrial-grade network performance is standard with the 10/100 Base-T RJ45 Integrated Magnetics jack. Efficient data transmission relies on a nickel-plated copper alloy shield to minimize electromagnetic interference effectively. Unlike common connectors, this surface mount device operates reliably within an extreme temperature range of -40°C to 85°C. Reliable PCB alignment is achieved through an integrated board guide during the automated assembly process. Gold-plated contacts ensure low resistance and long-term signal integrity in demanding environments. The tab-down design and no LED profile offer a streamlined solution for space-constrained high-density electronics.
Key Features
- 10/100 Base-T Performance: Supports high-speed data transfer across networks.
- Surface Mount Technology: SMT design simplifies precise automated assembly.
- Industrial Temperature Range: Operates reliably in extreme thermal environments.
- Full Copper Shielding: Nickel-plated shield effectively blocks signal noise.
- Integrated Board Guide: Built-in guides ensure perfect alignment on PCB.

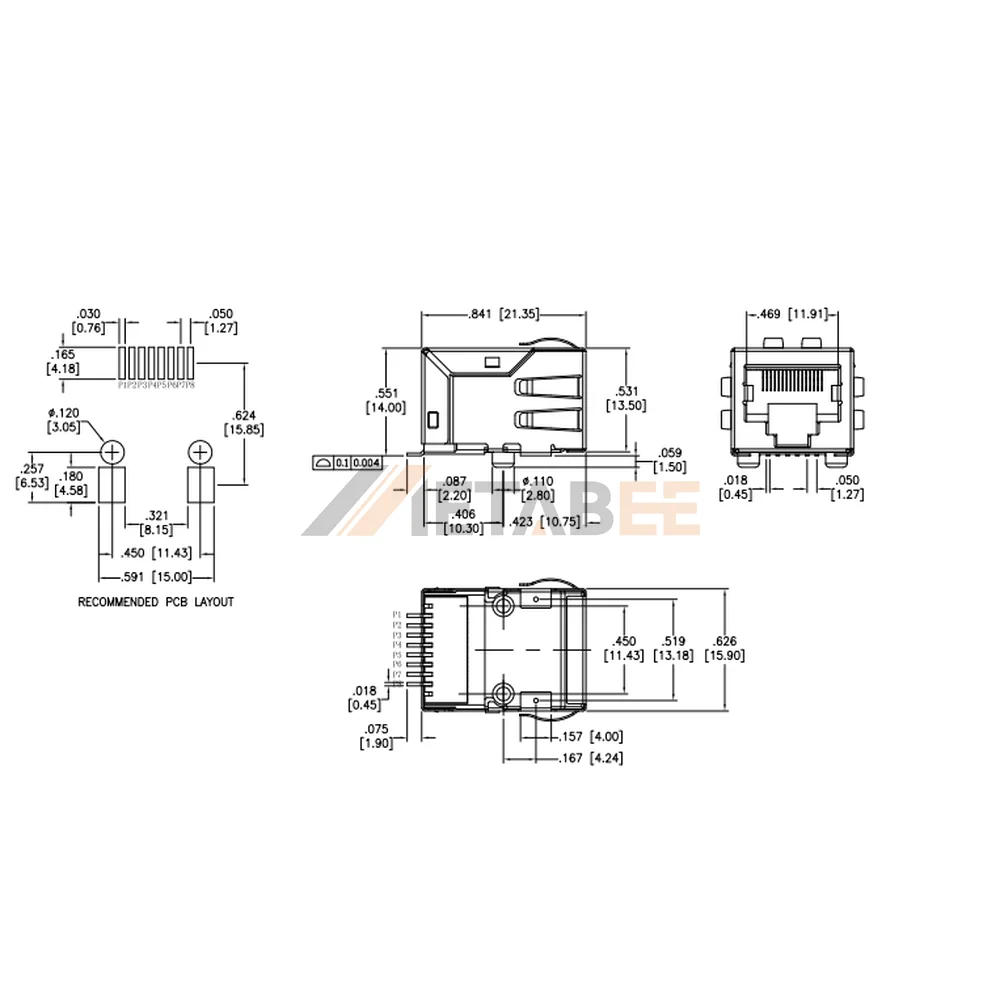

Main Specifications:
General Information:
| Product No.: | MTJ-88TX1-FS-PG-M4C-SMT-TR | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Speed: | 10/100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Down | |
| Shielding: | Full Shield | |
| LED indicator: | No LED |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
