Introduction:
Facilitating reliable network connections, the single-port Ethernet RJ45 with magnetics jack operates efficiently at 10/100 Base-T speeds. A nickel-plated copper alloy shield encompasses the component to suppress electromagnetic interference effectively during data transmission. The right-angle module utilizes black PBT insulation material and incorporates a board lock for stable through-hole mounting on the PCB. Status indication is provided by integrated yellow and green LEDs located within the tab-up configuration. High-quality copper alloy contacts with gold plating ensure low contact resistance of under 20mΩ for consistent signal integrity.
Key Features
- 10/100 Base-T Support: Handles standard Fast Ethernet data traffic efficiently.
- Copper Alloy Shielding: Nickel-plated metal guard reduces signal noise.
- Durable PBT Insulation: Black thermoplastic housing withstands mechanical stress.
- Integrated Status LEDs: Yellow and green lights monitor link activity.
- Gold-plated Contacts: Copper alloy ensures <20 mΩ contact resistance.
Main Specifications:
General Information:
| Product No.: | MTJ-88SX1-FSD-PG-LG-M14 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 10/100Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up | |
| Shielding: | Full Shield | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Voltage: | 150VAC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Copper Alloy, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ 70°C | |
| Flammability Rating: | UL 94 V-0 |

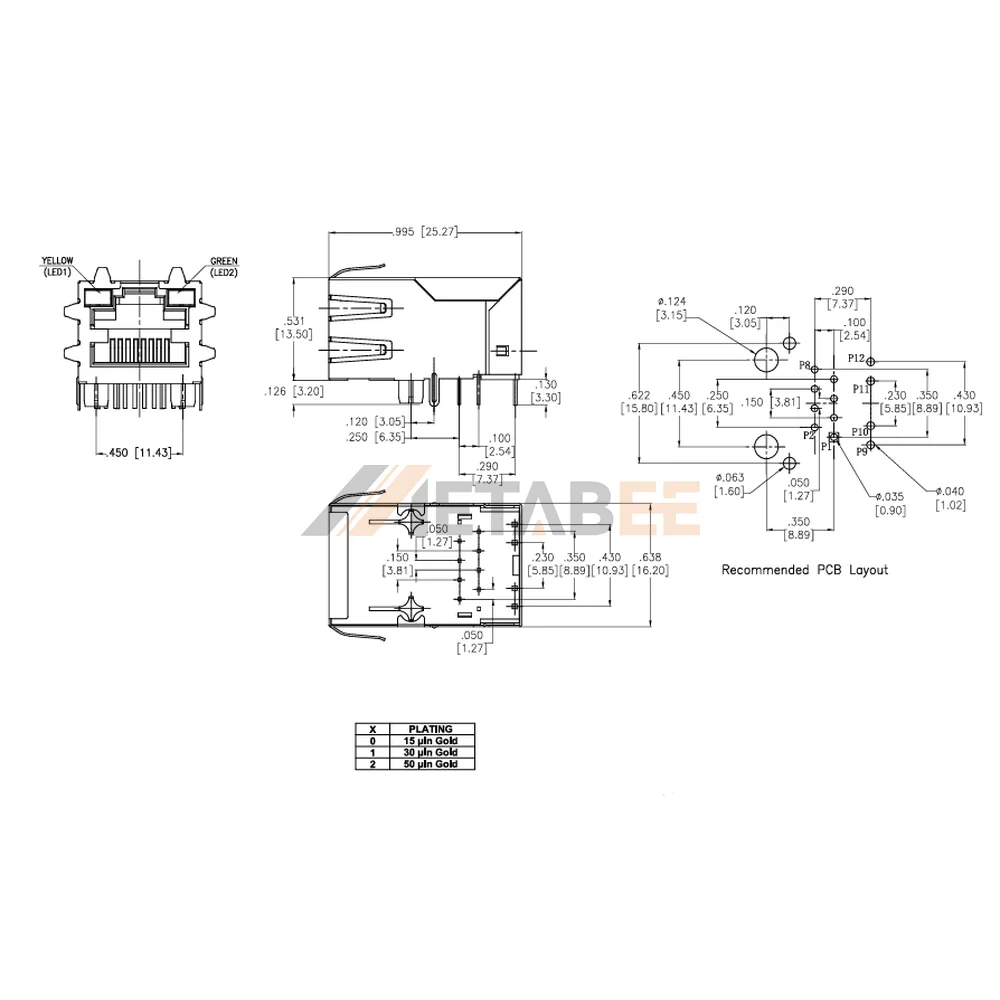

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
