Introduction:
This magnetic pogo connector is a single-pin male terminal designed for specialized circular docking interfaces. Measuring 8.5mm by 12mm, the component utilizes magnetic attraction to facilitate automatic self-alignment during mating, ensuring the plunger centers precisely on the target contact pad. It is engineered with a gold-plated brass body to maintain stable electrical conductivity and high corrosion resistance. This discrete terminal serves as a reliable power or signal link in handheld devices and modular electronics where a secure, quick-release connection is essential for the user interface.
Key Features
- Magnetic Alignment: Circular magnetic head enables automatic self-aligning docking connections.
- Compact Size: 8.5mm by 12mm dimensions optimize limited device housing space.
- Gold Plated: Gold-plated brass contacts ensure low resistance and oxidation protection.
- Single-Pin Design: 1-pin configuration provides a specialized link for power or signal.
- Quick Release: Magnetic force facilitates effortless one-handed connection and disconnection.
Main Specifications:
General Information:
| Product No.: | PH-MV15F-9012 | |
| Product Type: | Magnetic Pogo Pin Connector | |
| Pin Configuration: | 1 Pin | |
| Connector Gender: | Male | |
| Connector Shape: | Circular | |
| Mounting Orientation: | Straight | |
| Pitch(mm): | N/A | |
| Working Stroke (mm): | N/A | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | N/A | |
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | N/A |
Materials and Plating:
| Insulator Material: | N/A | |
| Insulator Color: | N/A | |
| Contact Material: | N/A | |
| contact plating: | N/A | |
| Spring Material: | N/A | |
| Magnet: | N/A |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |

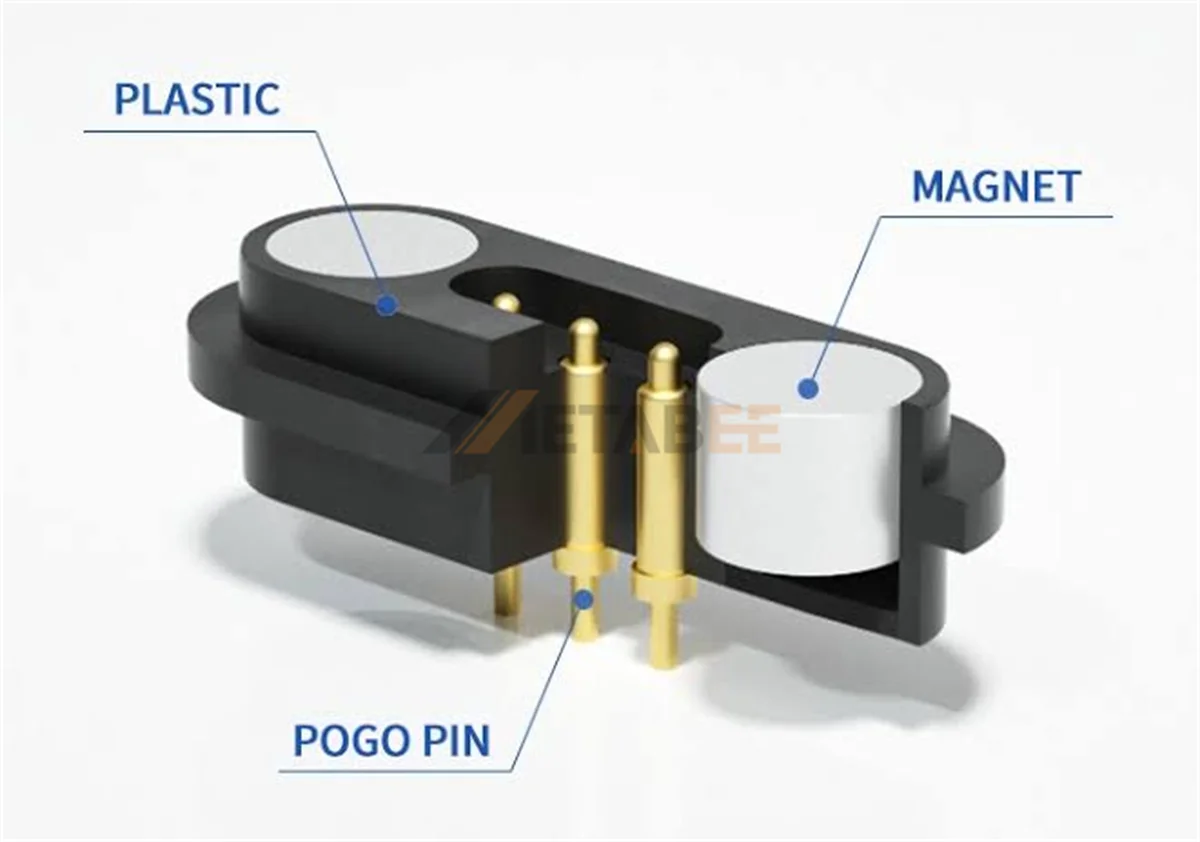

Structure of Magnetic Pogo Pin Connector
Applications:
Magnetic pogo pin connectors combine spring-loaded pin technology with magnetic alignment, providing reliable electrical contact and quick connection for power and signal transmission. Their magnetic design enables easy mating, secure attachment, and repeated connection cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Equipment
- Automotive Electronics
- Custom OEM & ODM Solutions
