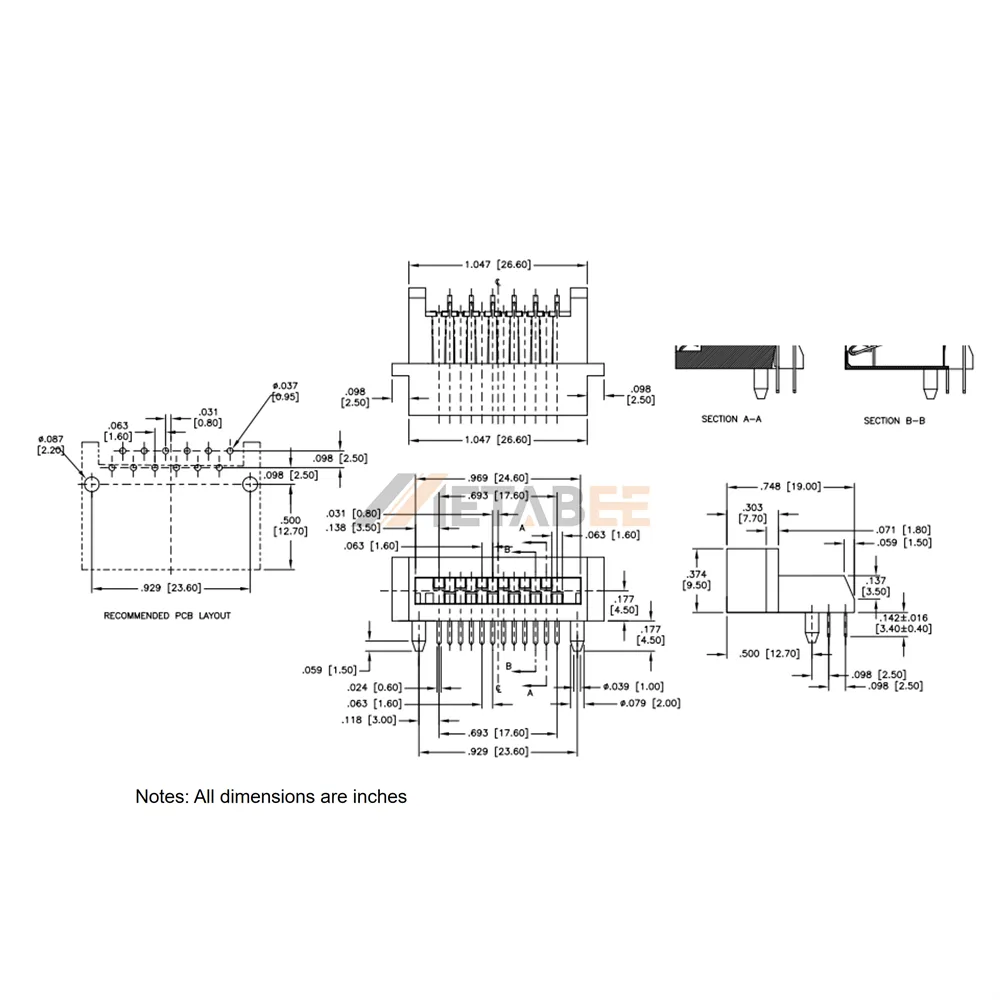

1.6mm Pitch 12 Pin SMT Board to Board Right Angle Connector, Socket
Introduction:
The 1.6mm Pitch 12 Pin SMT Board to Board Right Angle Connector, socket is designed for reliable board-to-board interconnection in compact electronic systems. Featuring a dual-row, 12-position configuration and right-angle surface mount design, this male connector enables efficient PCB layouts while providing secure mating performance for space-constrained applications.
Manufactured with copper alloy contacts and gold flash plating, the connector offers excellent electrical conductivity and enhanced resistance to oxidation and wear. Its high-temperature thermoplastic insulator ensures outstanding mechanical strength and thermal stability, while the UL 94 V-0 flammability rating provides additional safety for demanding environments.
With an operating temperature range of -40°C to +85°C, this 1.6mm pitch connector is suitable for industrial control equipment, communication devices, consumer electronics, and embedded systems. It delivers dependable signal transmission and long-lasting durability for a wide range of PCB interconnect applications.
Key Features
- 1.6mm pitch for reliable board-to-board connections
- 12-position dual-row female connector design
- Right-angle SMT configuration for space-saving layouts
- Copper alloy contacts with gold flash plating
- Hi-temp thermoplastic housing with UL 94 V-0 rating
- Operating temperature range from -40°C to +85°C
Main Specifications:
General Information:
| Product No.: | YC-BB16-S-12-RA-SG | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 1.6mm (0.063″) Pitch | |
| Gender: | Female | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 12 Positions | |
| Mounting Orientation: | Right Angle | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 1.6mm Pitch 12 Pin SMT Board to Board Right Angle Connector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
