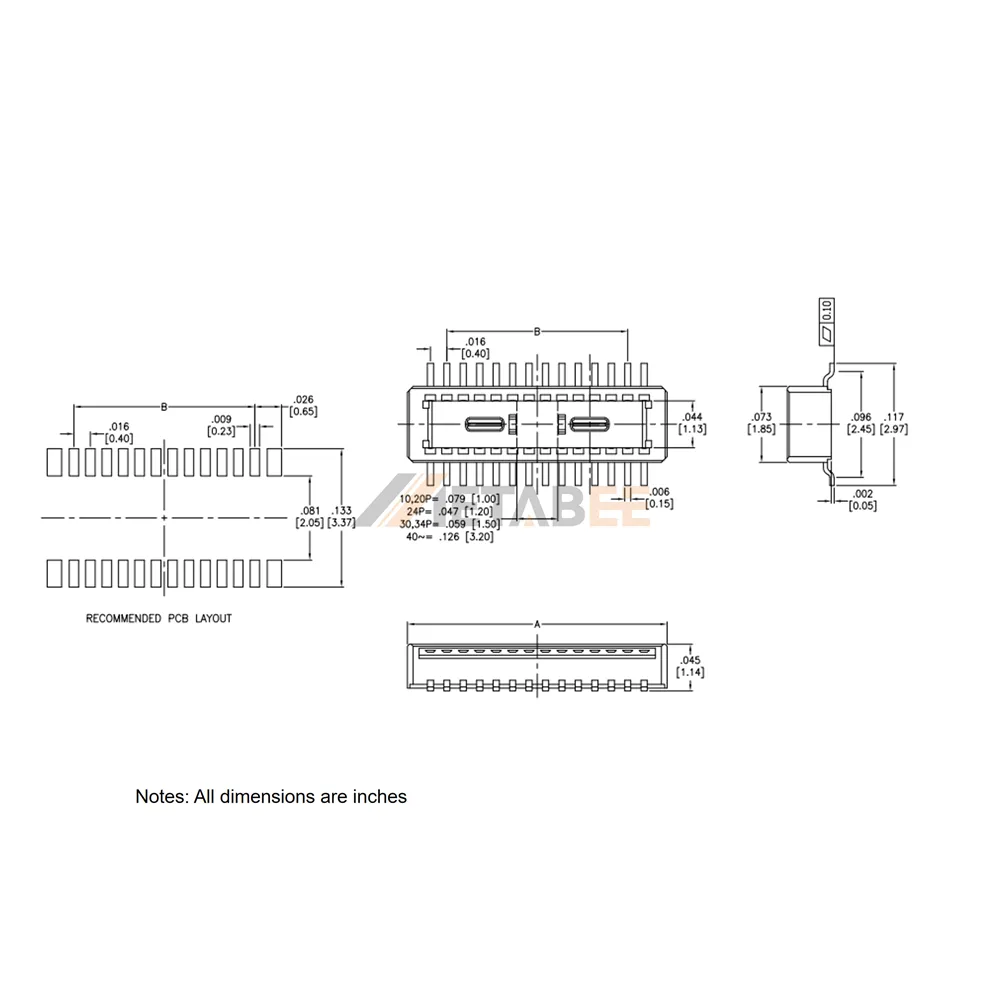

0.4 mm Pitch SMT Board to Board Plug, 1.14mm Height
Introduction:
This 0.4 mm pitch SMT board-to-board plug delivers a high-density, vertical surface-mount interconnect solution for compact electronic assemblies. Designed with a dual-row configuration supporting 20 to 120 positions, this male connector addresses the demanding routing requirements of modern mobile devices, wearables, and portable instrumentation. The ultra-low 1.14 mm seated height optimizes space utilization in stacked PCB architectures, while the vertical mounting orientation provides straightforward placement during automated assembly processes.
Constructed with a copper alloy contact system plated with gold flash, the connector ensures reliable signal integrity and corrosion resistance over repeated mating cycles. The high-temperature thermoplastic insulator withstands reflow soldering profiles without deformation, and the material set meets UL 94 V-0 flammability requirements for enhanced safety. Operating reliably across a -40°C to +85°C temperature range, this component supports diverse environmental conditions while maintaining consistent electrical performance.
Key Features
- 0.4 mm fine-pitch design for high-density PCB interconnects
- Dual-row male plug with 20 to 120 position flexibility
- Ultra-low 1.14 mm profile for space-constrained applications
- Gold flash plating on copper alloy for durable signal transmission
- High-temperature thermoplastic insulator with UL 94 V-0 rating
- Wide -40°C to +85°C operating temperature range
Main Specifications:
General Information:
| Product No.: | YC-BB4-PAT-XXX-G-1.14-NP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.4mm (0.0157″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-120 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 1.14mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.4 mm Pitch SMT Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
