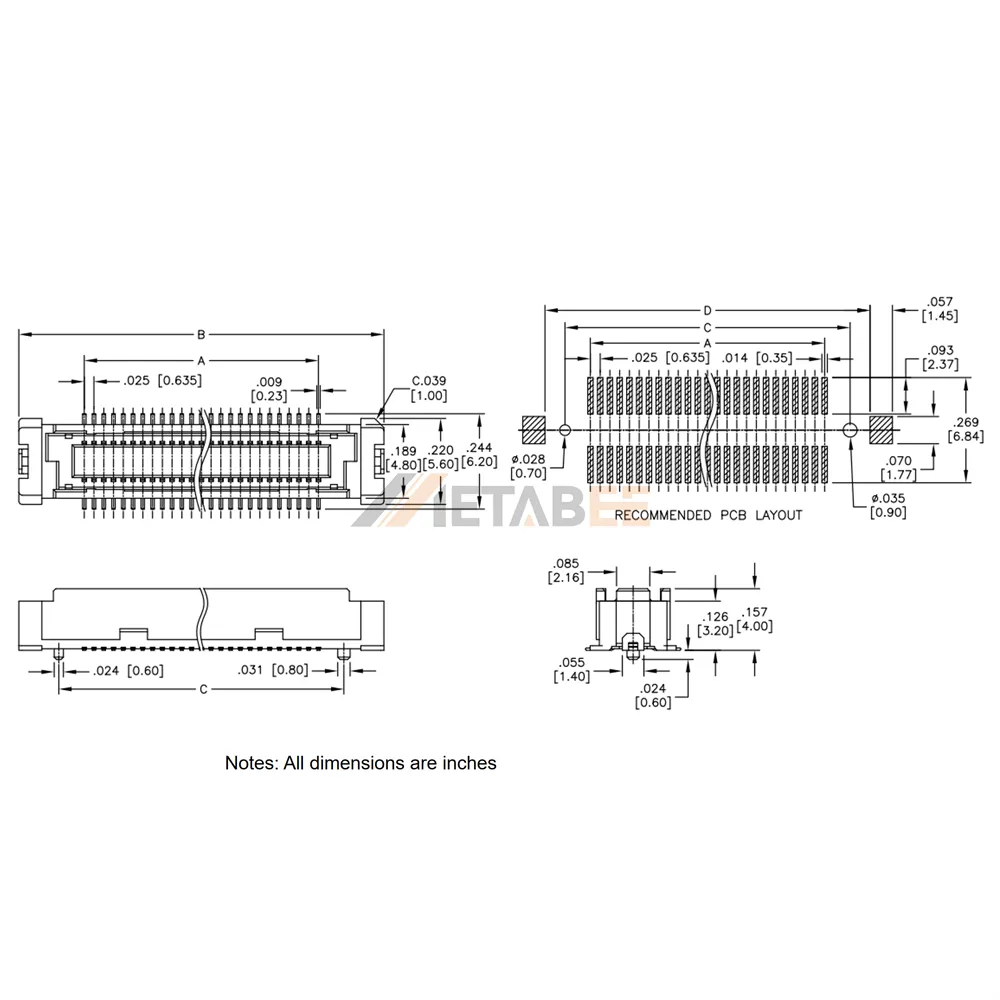

0.635mm Pitch Board to Board Socket, SMT, 4mm Stack Height
Introduction:
The 0.635mm Pitch Board to Board Socket is a high-density SMT female connector designed for reliable board-to-board interconnection in compact electronic devices. Featuring a vertical mating orientation and a 4mm stack height, it is available in 20, 30, 40, and 50 positions to accommodate various design requirements while maximizing PCB space utilization.
Manufactured with copper alloy contacts and gold flash plating, this connector provides stable electrical performance, low contact resistance, and enhanced durability. The high-temperature thermoplastic insulator ensures excellent mechanical strength and dimensional stability during SMT assembly processes, making it suitable for demanding industrial and consumer electronic applications.
Designed for dependable operation in harsh environments, the connector supports an operating temperature range of -40°C to +85°C and complies with UL 94 V-0 flammability requirements. Its dual-row configuration and fine 0.635mm pitch enable high signal density while maintaining secure and reliable connections for modern electronic systems.
Key Features
- 0.635mm pitch for high-density PCB designs
- Female board-to-board socket with vertical mating
- 4mm stack height for compact assemblies
- Available in 20, 30, 40, and 50 positions
- Copper alloy contacts with gold flash plating
- UL 94 V-0 rated insulator and -40°C to +85°C operation
Main Specifications:
General Information:
| Product No.: | YC-BB635-SE-XX-G-400-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.635mm (0.025″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20, 30, 40, 50 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 4mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.635mm Pitch Board to Board Socket:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
