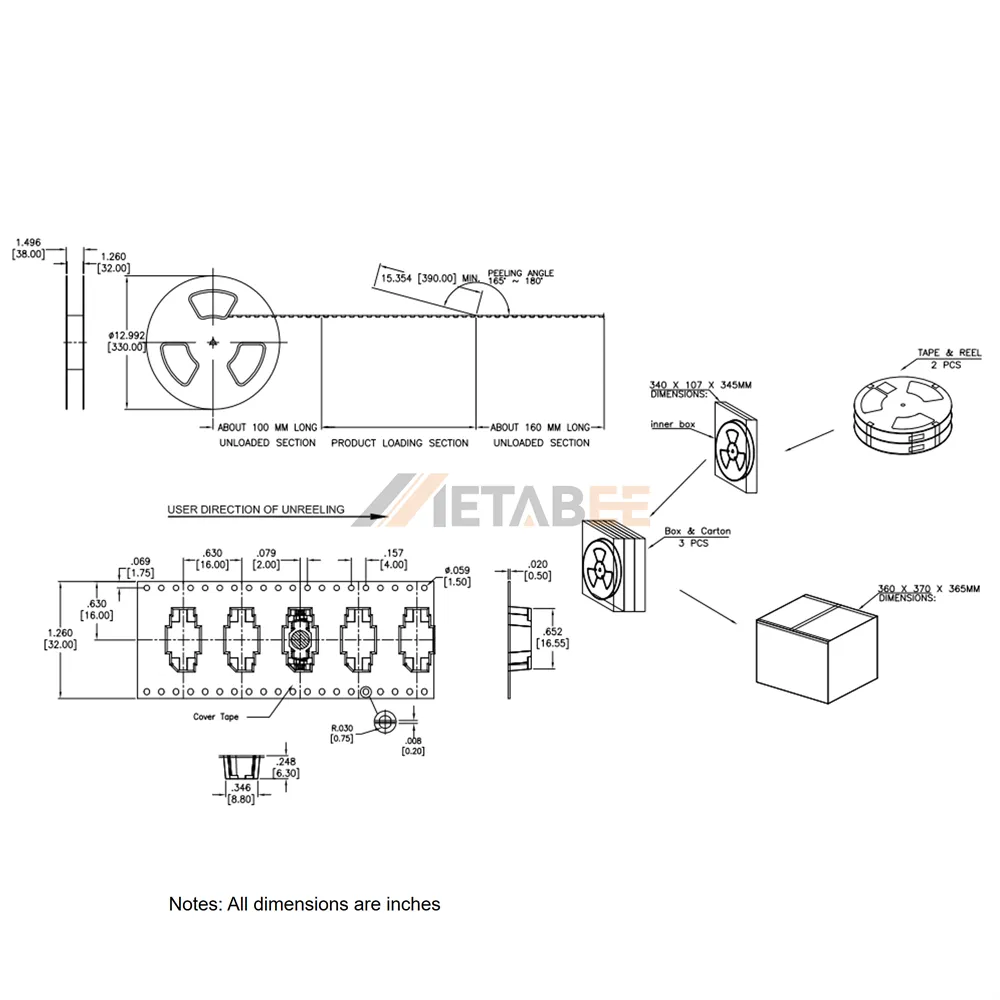

0.635mm Pitch 30 Positions Board to Board Plug, SMT, 5mm Height
Introduction:
The 0.635mm Pitch 30 Positions Board to Board Plug is a high-performance SMT connector designed for compact electronic devices requiring reliable board-level interconnection. Featuring a dual-row, 30-position configuration and a 5mm stacking height, this vertical-mount male connector helps maximize PCB space utilization while ensuring stable signal transmission in high-density applications.
Manufactured with copper alloy contacts and gold flash plating, the connector delivers excellent electrical conductivity, low contact resistance, and enhanced durability. The high-temperature thermoplastic insulator provides outstanding mechanical strength and thermal stability, making it suitable for automated surface-mount assembly processes and demanding operating environments.
Engineered to meet modern electronic design requirements, this board-to-board connector operates reliably within a temperature range of -40°C to +85°C. The UL 94 V-0 rated housing offers superior flame resistance, making it an ideal solution for industrial equipment, consumer electronics, communication devices, medical instruments, and embedded control systems.
Key Features
- 0.635mm fine pitch design for high-density PCB layouts
- 30-position dual-row configuration for increased connectivity
- 5mm stacking height suitable for compact electronic assemblies
- Copper alloy contacts with gold flash plating for reliable performance
- High-temperature thermoplastic insulator with UL 94 V-0 flammability rating
- Operating temperature range from -40°C to +85°C for dependable operation
Main Specifications:
General Information:
| Product No.: | YC-BB635-PW-030-MSG-5.00-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.635mm (0.025″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 30 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | 5mm | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.635mm Pitch 30 Positions Board to Board Plug:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
