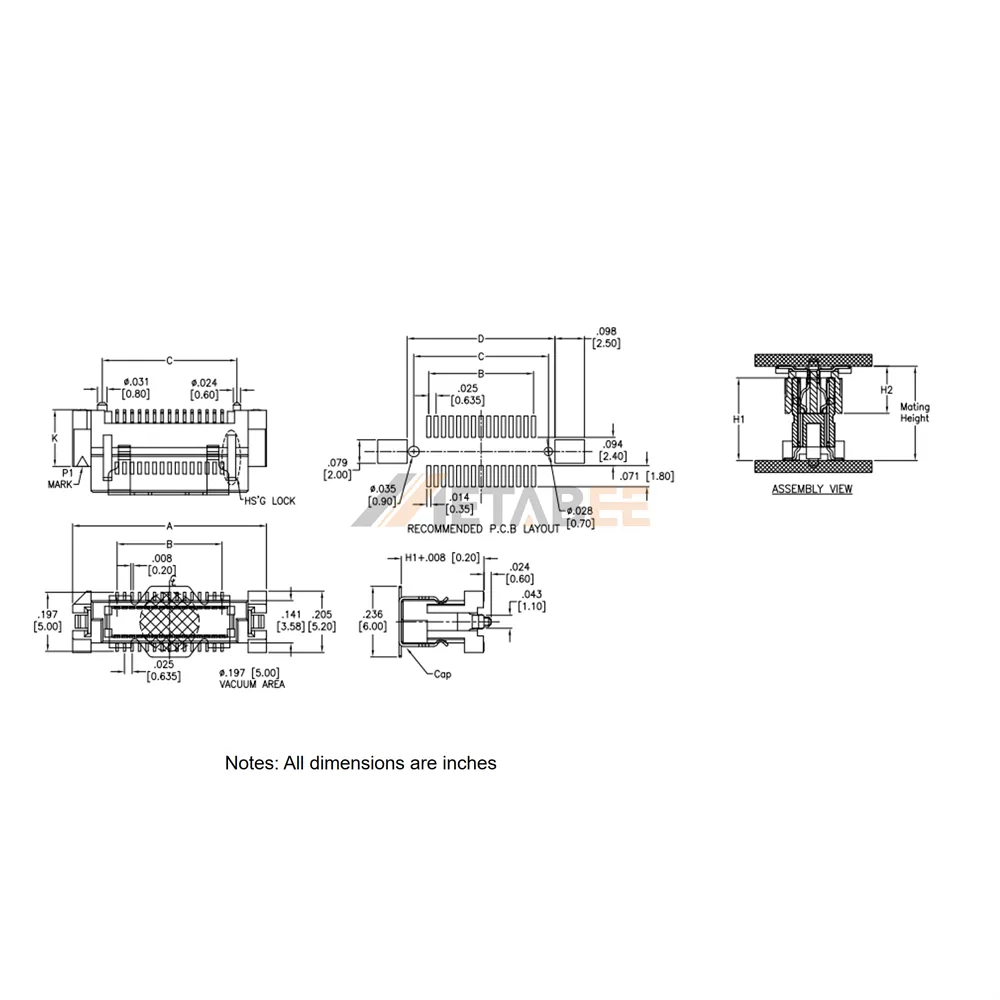

0.635mm Pitch Board to Board SMT Connnector, Plug, Vertical
Introduction:
This 0.635mm Pitch Board-to-Board SMT Connector (Plug, Vertical) is engineered for high-density electronic applications where space-saving and precision are critical. Featuring a dual-row configuration and available in a versatile range of 20 to 160 positions, this male plug connector ensures robust electrical connectivity and mechanical stability. Its surface-mount design allows for efficient automated assembly, making it an ideal choice for compact, high-performance printed circuit boards.
Built for reliability in demanding environments, the connector utilizes a high-temperature thermoplastic insulator and copper alloy contacts finished with gold flash plating. With an operating temperature range of -40℃ to +85℃ and a UL 94 V-0 flammability rating, this component provides excellent thermal resilience and safety. It delivers the perfect balance of durability and signal integrity for sophisticated modern circuitry.
Key Features
- High Density: 0.635mm centerline pitch optimizes PCB real estate.
- Versatile Capacity: Available in 20 to 160 positions to meet diverse design needs.
- Robust Construction: Copper alloy contacts with gold flash for superior conductivity.
- Thermal Resilience: Rated for -40℃ to +85℃ operating temperatures.
- Safety Rated: Flammability rating of UL 94 V-0 for enhanced fire protection.
- Efficient Assembly: Vertical, surface-mount orientation designed for SMT processes.
Main Specifications:
General Information:
| Product No.: | YC-BB635-PW-XXX-MSG-X.XX-PP-TR | |
| Category: | Board to Board Connectors | |
| Centerline (Pitch) | 0.635mm (0.025″) Pitch | |
| Gender: | Male | |
| Number of Rows: | Dual Row | |
| Number of Positions: | 20-160 Positions | |
| Mounting Orientation: | Vertical | |
| Termination Style: | Press Fit | |
| Mounting Type: | Surface Mount | |
| Height Above Board: | Customized | |
| Other Feature: | None |
Electrical:
| Current rating: | 0.5A | |
| Dielectric withstanding voltage: | 500 VAC | |
| Mating Cycles | 100 Cycles |
Materials and Plating:
| Contact Material: | Copper Alloy | |
| Contact plating: | Gold flash over Nickel underplate overall | |
| Insulator: | Hi-temp thermoplastic |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Applications of this 0.635mm Pitch Board to Board SMT Connnector:
Board-to-board connectors are fundamental components in modular electronics, facilitating robust signal and power transmission between stacked or adjacent printed circuit boards (PCBs).
- Consumer Electronics
- Industrial Equipment
- Medical Devices
- Communication Equipment
- Automotive Electronics
- Embedded Computing Systems
- IoT Infrastructure
- Test and Measurement Instruments
- Aerospace and Defense Electronics
- Robotics and AI Systems
