Introduction:
The Stacked RJ45 PoE+ MagJack Connector is a high-density 2×4 multi-port network interface designed for Gigabit Ethernet and power delivery. Reliable 1000 Base-T data speeds remain consistent across an extreme industrial temperature range from -40 to +85 degrees Celsius. A robust nickel-plated stainless steel shield encloses the black hi-temp thermoplastic housing to block electromagnetic interference effectively. Precise component positioning on the PCB depends on the integrated board guide and solder retention features. Visual status updates rely on built-in green and yellow LED indicators positioned within the stacked profile. Furthermore, gold-plated phosphor bronze contacts strictly maintain low electrical resistance in this stacked RJ45 PoE+ MagJack connector. Secure mechanical termination uses a right-angle through-hole configuration.
Key Features
- 1000 Base-T Gigabit Speed: Supports high-speed data transfer across eight ports.
- PoE+ Power Delivery: Facilitates simultaneous power and data for devices.
- Industrial Temperature Range: Operates reliably between -40 and 85 degrees Celsius.
- Stainless Steel Shielding: Blocks severe electromagnetic interference for signals.
- Secure THT Mounting: Integrated board guides ensure precise PCB alignment.
Main Specifications:
General Information:
| Product No.: | MTJG-8-88JX1-FS-PG-LH-M295YA-HT-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×4 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Supports PoE+ | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

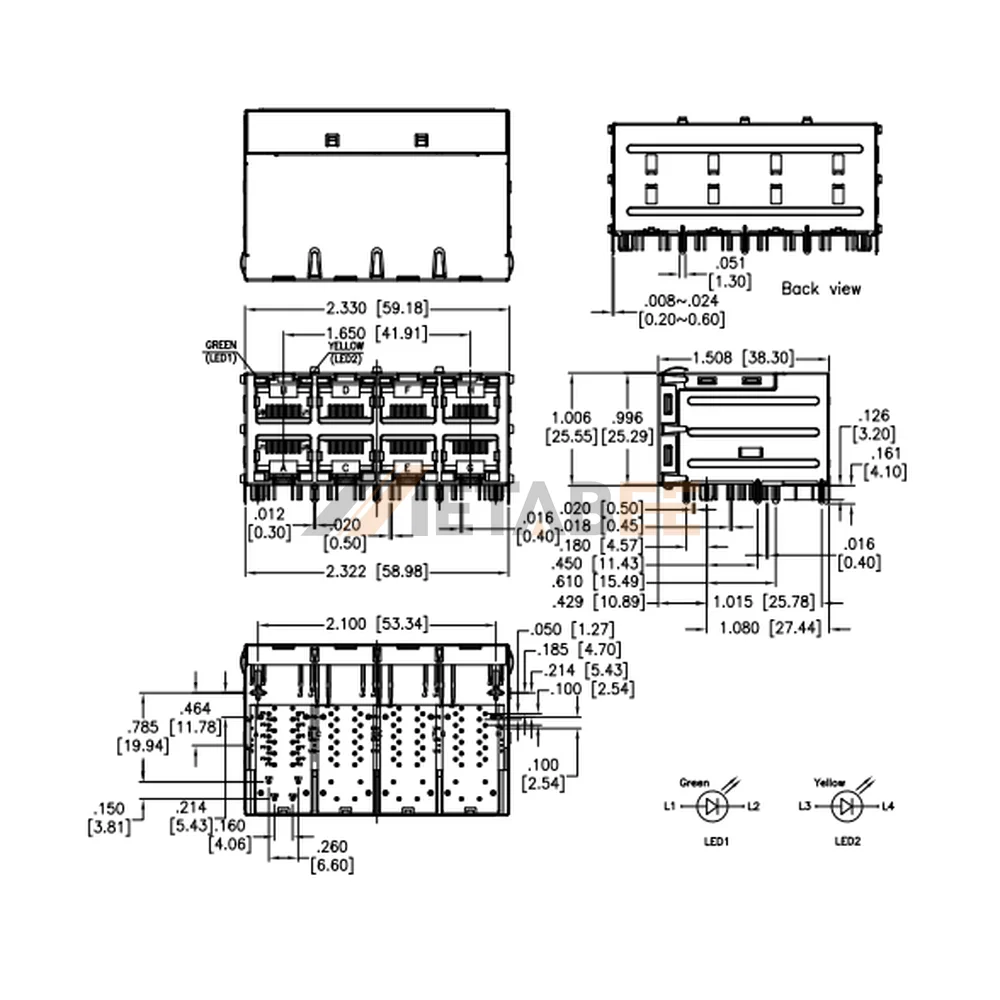

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
