Introduction:
The Integrated Magnetic RJ45 Jack is a 2×1 stacked network interface designed for industrial Gigabit Ethernet systems. Reliable 1000 Base-T data speeds remain stable throughout a wide -40 to 85 degrees Celsius temperature range. A robust nickel-plated brass shield encloses the black PA66 insulator to block electromagnetic interference effectively. Precise component positioning on the PCB depends on the integrated board guide and solder retention features. Visual link status is tracked through built-in green and green/orange LED indicators in this integrated magnetic rj45 jack. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20 miliohms. Secure mechanical bond is achieved using a right-angle through hole termination.
Key Features
- 1000 Base-T Speed: Supports reliable high-speed Gigabit Ethernet data transmission.
- Industrial Temperature Range: Operates flawlessly from -40 to 85 degrees Celsius.
- Stacked 2×1 Design: Facilitates dual port connectivity in compact board spaces.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Enhanced PCB Mounting: Board guide and solder retention ensure stability.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88JX1-V-FSG-PG2T-L36-M154C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Green/Orange |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

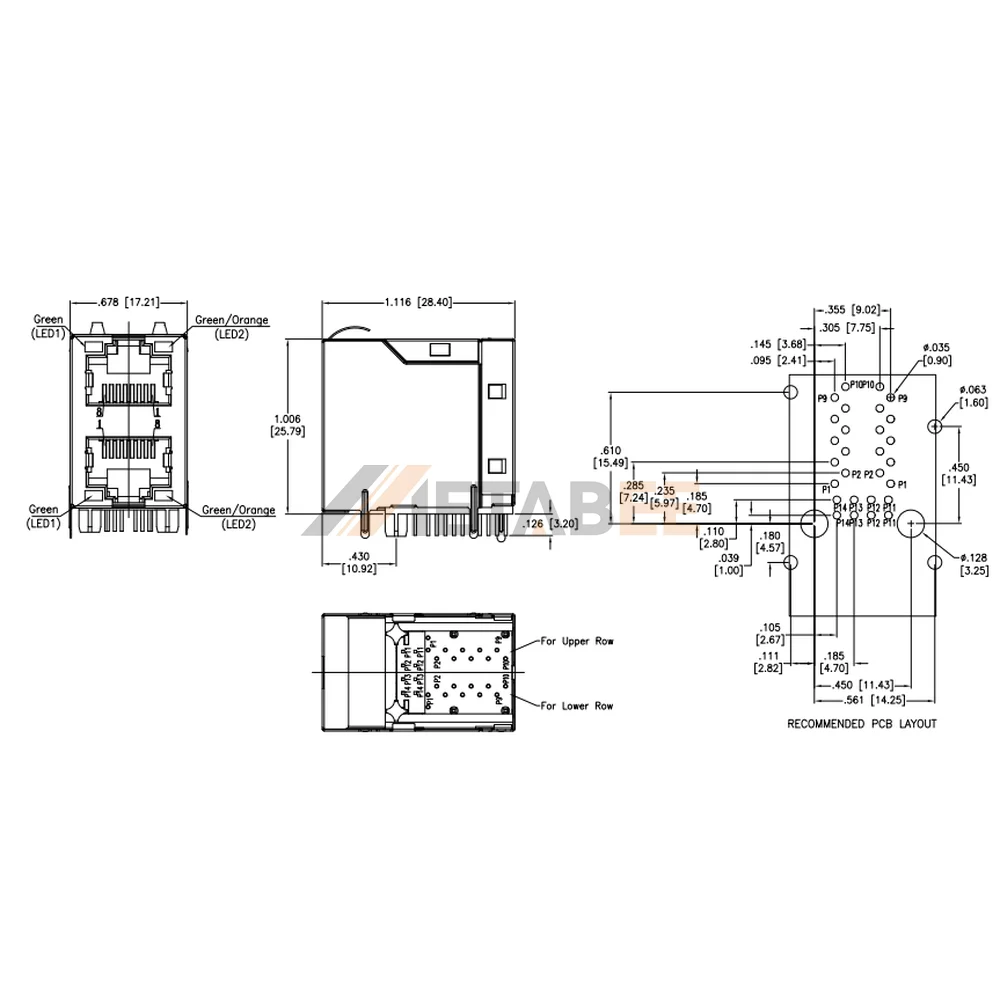

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
