Introduction:
The Integrated Magnetics RJ45 Jack is a 2×1 stacked network interface component built for industrial Ethernet communication. Reliable 100 Base-T data speeds remain consistent across the extreme -40 to +85 degrees Celsius temperature range. A robust nickel-plated brass shield encloses the black PA66 insulator to block electromagnetic interference effectively. Precise component positioning on the PCB relies on the integrated board guide and solder retention features. Visual network activity is tracked through dual green LED indicators positioned within the stacked tab-up and down profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20 miliohms in this integrated magnetics rj45 jack. Secure mechanical termination uses a right-angle THT configuration to optimize board space.
Key Features
-
100 Base-T Speed: Supports reliable Fast Ethernet data transmission rates.
-
2×1 Stacked Design: Facilitates dual port connectivity in compact spaces.
-
Industrial Temperature Range: Operates reliably from -40 to +85 degrees Celsius.
-
Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
-
Enhanced PCB Mounting: Board guide and solder retention ensure stability.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88QX1-FSG-PG-LD-M307C1-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

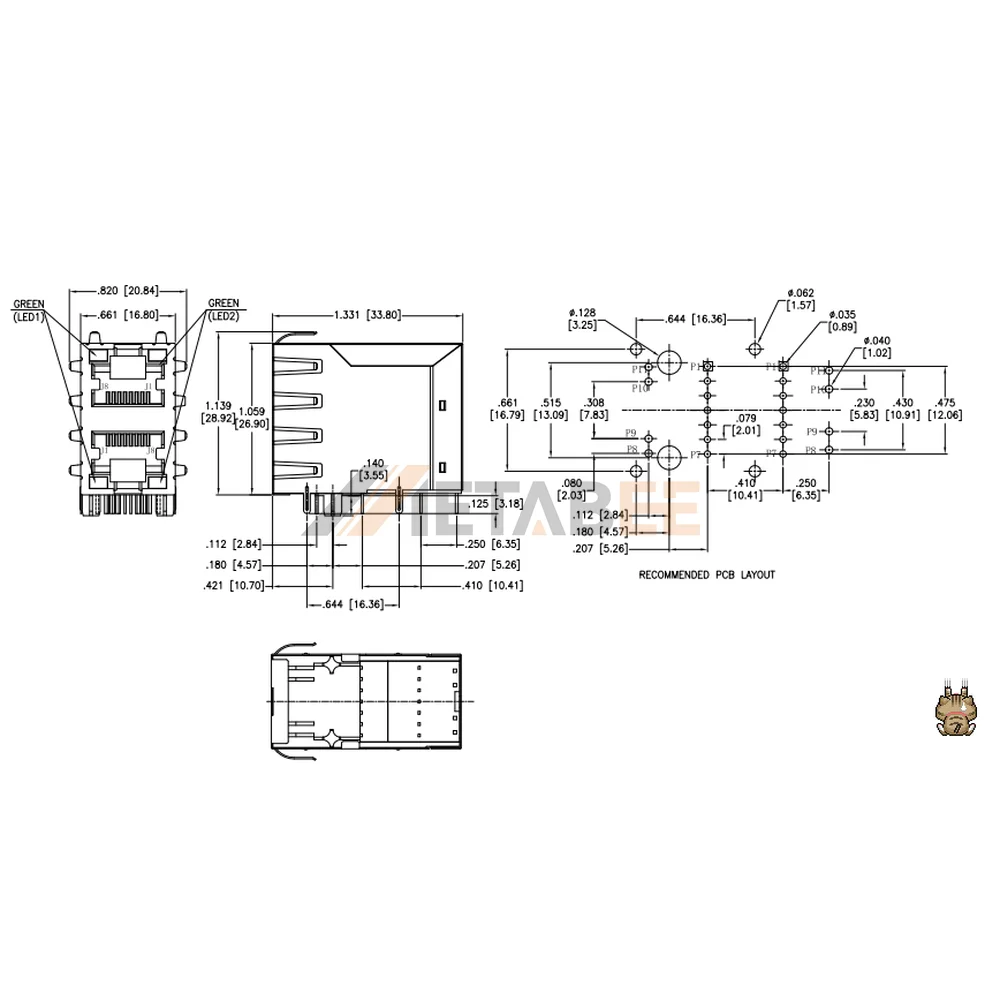

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
