Introduction:
High-speed Gigabit Ethernet systems require robust hardware, and the RJ45 Connector with Magnetics provides exceptional 1G Base-T performance across its dual stacked ports. A pre-soldered stainless steel shield encloses the black hi-temp thermoplastic housing to eliminate electromagnetic interference effectively during heavy data traffic. Mechanical stability on the PCB depends on the integrated board guide and solder retention features during the THT soldering process. Visual link activity is monitored through built-in green and green/orange LED indicators. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms for this rj45 connector with magnetics. Standard commercial temperatures between 0 and 70 degrees Celsius ensure reliable operation for diverse networking environments.
Key Features
- 1G Base-T Performance: Facilitates high-speed Gigabit Ethernet data transmission reliably.
- Stacked 2×1 Design: Maximizes port density in space-constrained PCB layouts.
- Stainless Steel Shielding: Pre-soldered metal housing blocks severe electromagnetic interference.
- Enhanced PCB Mounting: Board guide and solder retention guarantee physical stability.
- Multi-Color Link LEDs: Green and green/orange lights display network activity.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88JX1-V-FSG-L36-M268Y | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1G Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Green/Orange |
Electrical:
| Rated Voltage: | N/A | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | Hi-temp Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Stainless Steel, Pre-Soldering |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

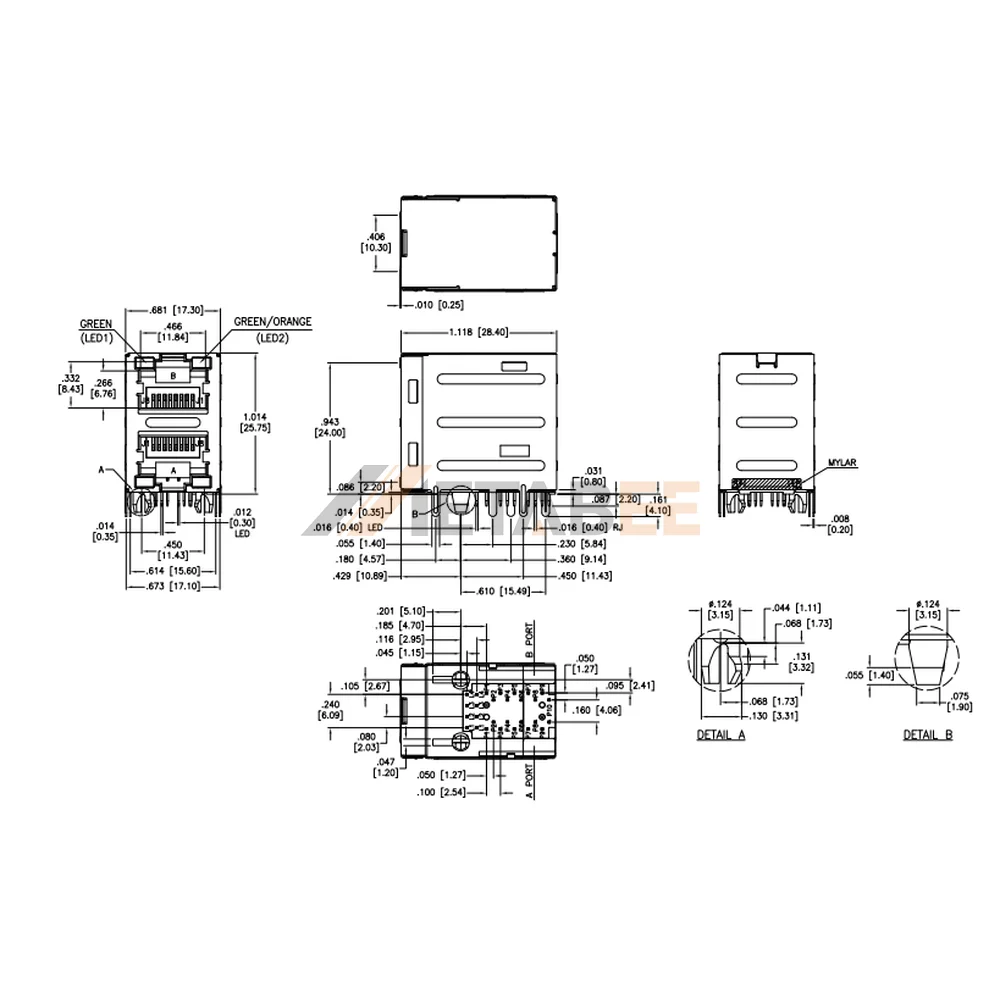

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
