Introduction:
The RJ45 ethernet magjack is a high-density 2×2 stacked network component built for Gigabit Ethernet equipment. Efficient 1000 Base-T data speeds remain stable throughout all four ports within the 0 to 70 degrees Celsius commercial range. A robust nickel-plated brass shield encloses the black thermoplastic housing to reject electromagnetic interference effectively. Precise component positioning on the PCB depends on the right-angle THT termination and integrated board lock features. Visual link status is tracked through built-in green and yellow LED indicators in this rj45 ethernet magjack. Furthermore, gold-plated phosphor bronze contacts strictly maintain electrical resistance below 20 miliohms to ensure long-term signal clarity.
Key Features
- 1000 Base-T Speed: Delivers reliable high-speed Gigabit Ethernet data transmission.
- 2×2 Stacked Design: Connects four network devices using a single module.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Secure PCB Mounting: Integrated board locks ensure stable THT termination.
- Low Resistance Contacts: Gold-plated alloy strictly maintains <20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-4-88JX1-V-FSG-PG-L16-M312 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×2 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green/Yellow, Right: Green/Yellow |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | 0°C ~ +70°C | |
| Flammability Rating: | UL 94 V-0 |

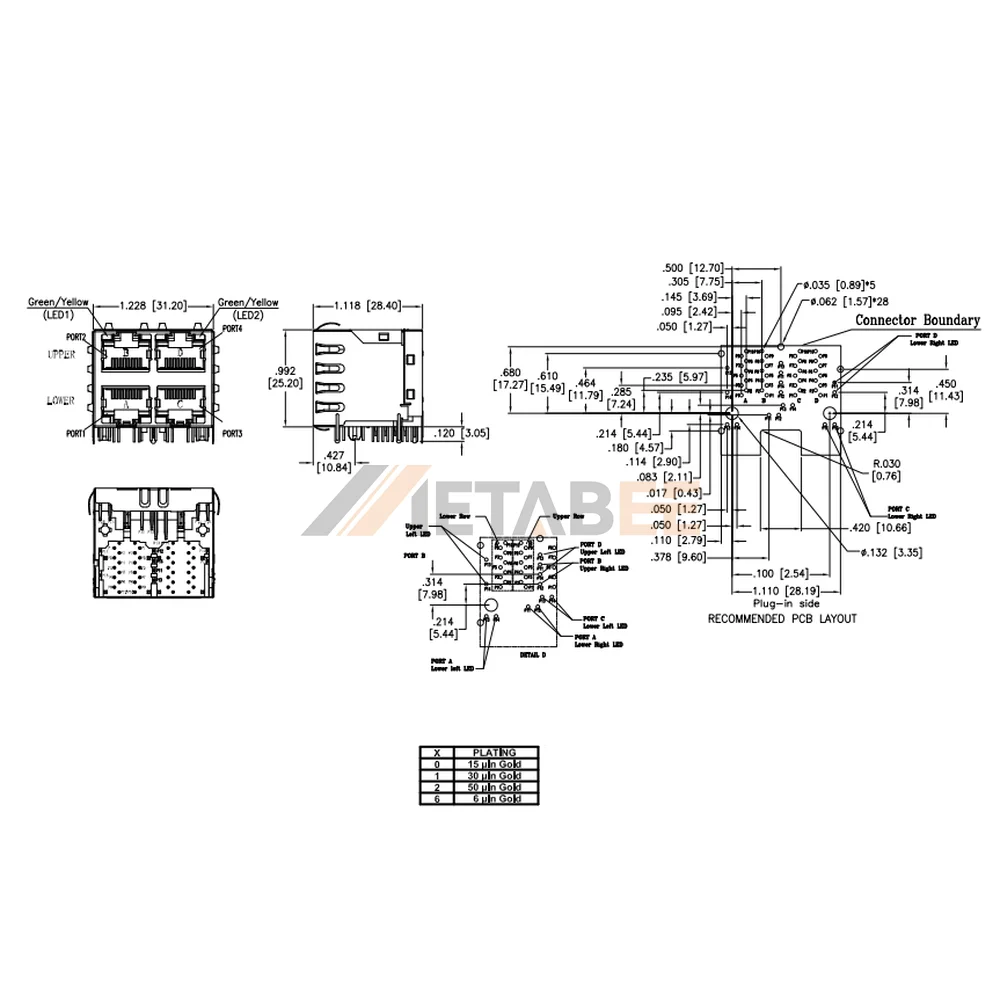

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
