Introduction:
The Rj45 Connector with Magnetics is a high-density 2×1 stacked network interface used for Gigabit Ethernet communication. Reliable 1000 Base-T data speeds remain consistent through both ports within the 0 to 70 degrees Celsius commercial temperature range. A robust nickel-plated brass shield encloses the black thermoplastic housing to block electromagnetic interference effectively during high-speed traffic. Precise component positioning on the PCB depends on the integrated board guide and solder retention features during the THT process. Visual link status is tracked through built-in yellow and green LED indicators positioned in the up and down profile. Furthermore, gold-plated copper alloy contacts strictly maintain electrical resistance below 20 miliohms in this rj45 connector with magnetics. Secure mechanical termination uses a right-angle configuration to optimize board space.
Key Features
- 1000 Base-T Speed: Supports reliable high-speed Gigabit Ethernet data transmission.
- 2×1 Stacked Design: Facilitates dual port connectivity in compact spaces.
- Full Brass Shielding: Blocks severe electromagnetic interference for clear signals.
- Enhanced PCB Mounting: Board guide and solder retention ensure stability.
- Low Resistance Contacts: Gold finish ensures conductivity below 20 miliohms.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88JX1-V-FSG-PG-LV-M209 | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Green/Yellow |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material | Thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

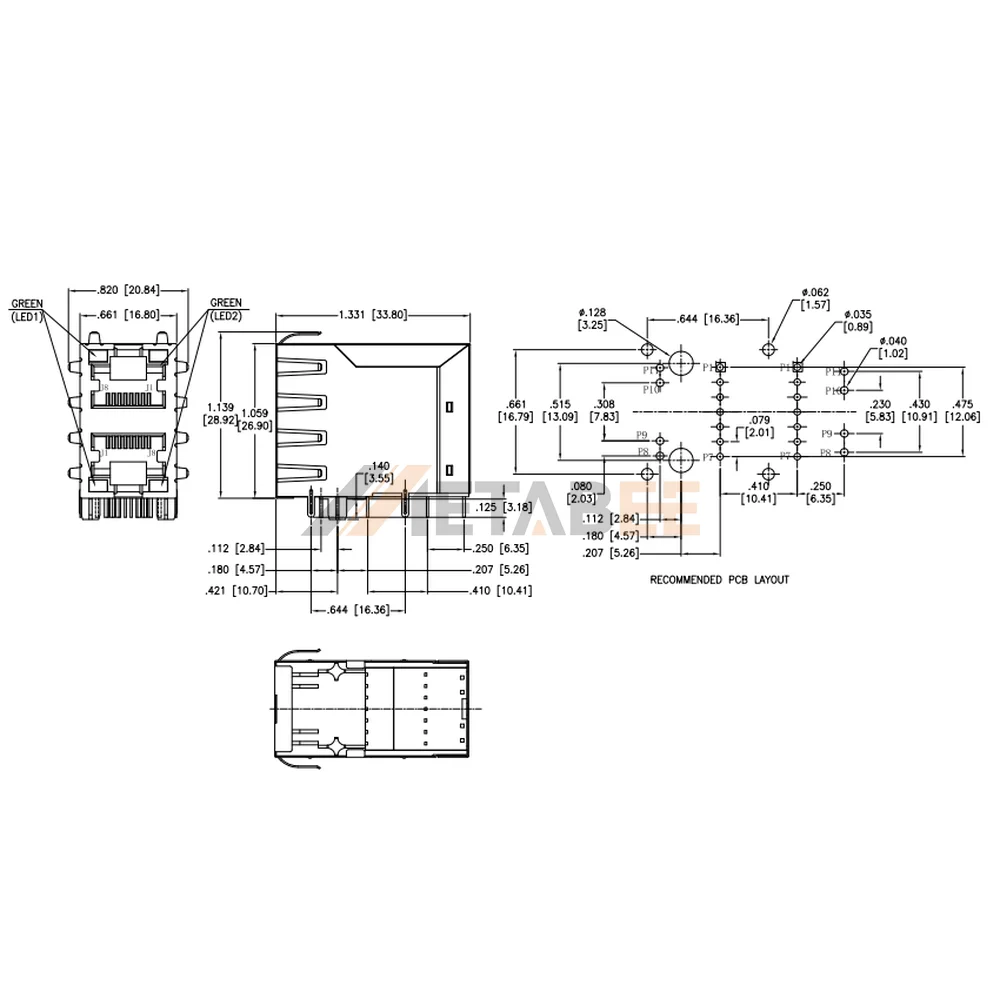

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
