Introduction:
The Dual Stacked RJ45 is a 2×1 port network component designed for standard industrial Ethernet applications. Reliable 100 Base-T data speeds remain consistent across an extreme -40C to 85C temperature range. A robust nickel-plated shield fully encloses the housing to block electromagnetic interference effectively during high-speed traffic. Secure printed circuit board alignment depends on the integrated board guide and solder retention features. Vertical space optimization relies on the right-angle, stacked configuration with built-in green and yellow LED indicators. Furthermore, gold-plated copper alloy contacts strictly maintain low electrical resistance in this dual stacked rj45. Standard through hole termination ensures a permanent mechanical bond for rugged environments.
Key Features
- 100 Base-T Speed: Supports reliable Fast Ethernet data transmission rates.
- 2×1 Stacked Design: Facilitates dual port connectivity in compact spaces.
- Industrial Temperature Range: Operates reliably from -40C to 85C.
- Full Metal Shielding: Blocks severe electromagnetic interference for signals.
- Enhanced PCB Mounting: Board guide and solder retention ensure stability.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88JX1-V-FSG-LH-M243C | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 100 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Yellow |
Electrical:
| Rated Voltage: | 125V AC | |
| Contact Resistance: | N/A | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

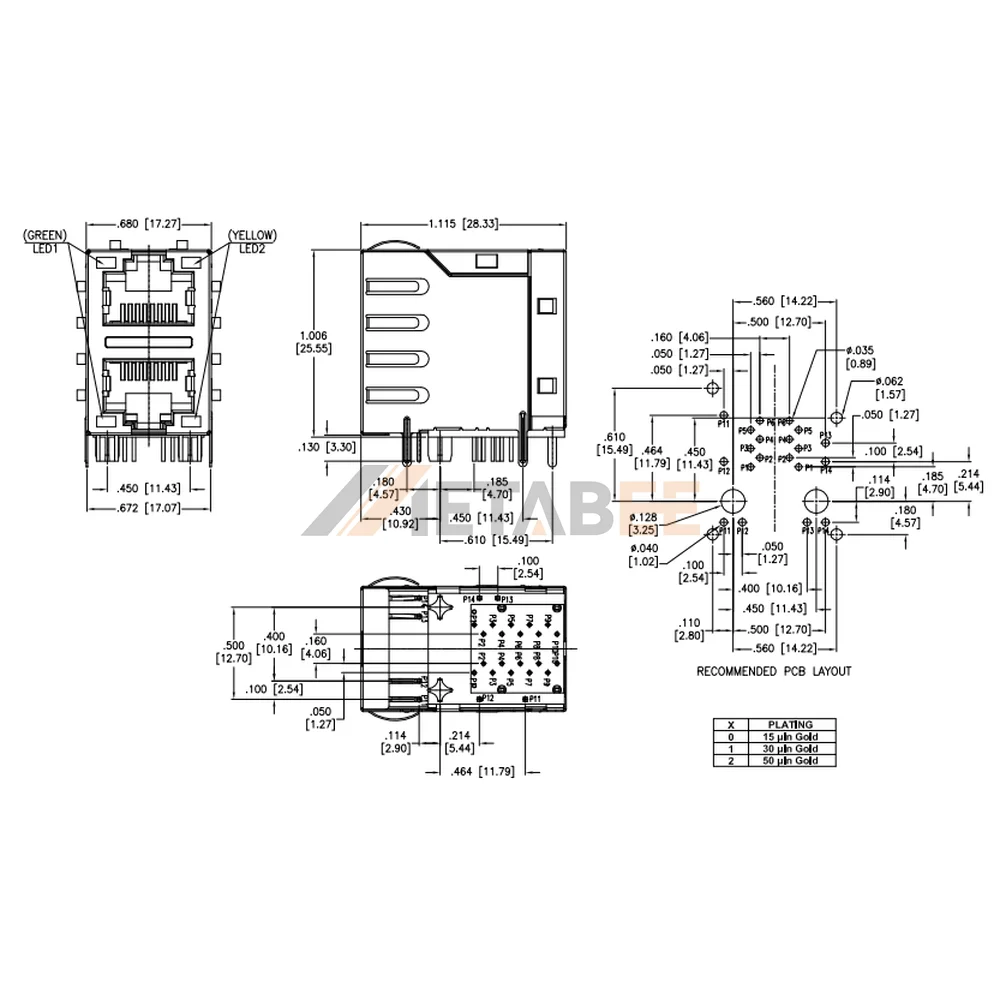

Structure of Modular Jack
