Introduction:
Industrial networking reaches peak efficiency with the RJ45 Connector with Magnetics, built to sustain 1000 Base-T Gigabit speeds across dual ports. Harsh environmental conditions from -40C up to +85C pose no threat to the durable black PA66 insulation housing. A robust nickel-plated brass shield encloses the component to block electromagnetic interference effectively during heavy data traffic. Mechanical stability on the PCB is secured by a right-angle through hole termination combined with integrated board guide and solder retention features. Visual feedback relies on built-in dual green LED indicators within the up and down profile. Gold-plated copper alloy contacts strictly maintain electrical resistance below 20 miliohms for long-term signal clarity in this rj45 connector with magnetics.
Key Features
- 1000 Base-T Performance: Supports high-speed Gigabit Ethernet data transmission.
- Industrial Temperature Range: Operates reliably from -40C to +85C.
- Full Brass Shielding: Blocks severe electromagnetic interference for signals.
- Stacked 2×1 Design: Saves board space by connecting two devices.
- Secure THT Mounting: Board guides ensure precise and stable alignment.
Main Specifications:
General Information:
| Product No.: | MTJG-2-88JX1-V-FSG-PG-LD-M148C-WOT | |
| Series: | MTJ | |
| Category: | RJ45 Magnetic Jacks | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 2×1 Port | |
| Mounting Orientation: | Right Angle | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Speed: | 1000 Base-T | |
| Integral Magnetics: | Yes | |
| PoE Rating: | Non-PoE | |
| Latch Direction: | Tab-Up & Down | |
| Shielding: | Full Shielded | |
| LED indicator: | Left: Green, Right: Green |
Electrical:
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min |
Materials and Plating:
| Insulator Material: | PA66 | |
| Insulator Color: | Black | |
| Contact Material: | Copper Alloy | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Brass, Nickel plated |
Environmental:
| Operating Temperature: | -40°C ~ +85°C | |
| Flammability Rating: | UL 94 V-0 |

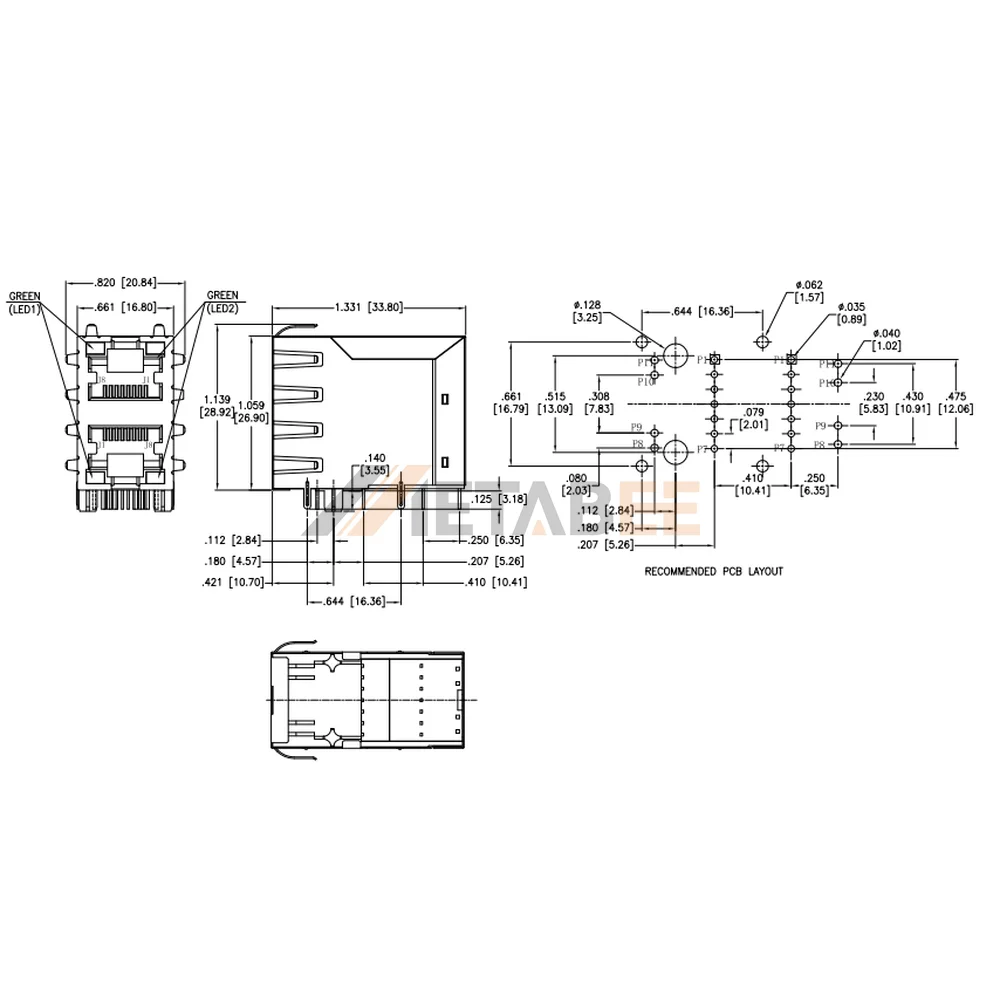

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
