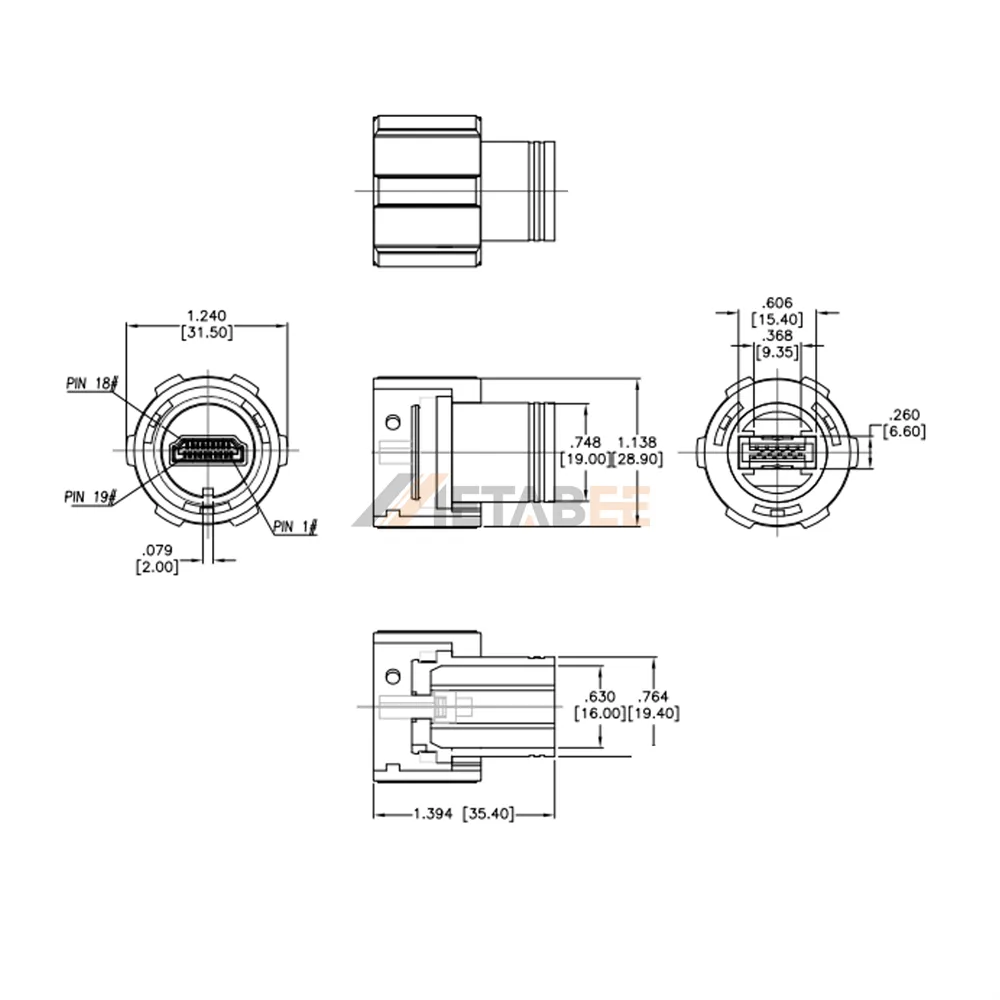

Waterproof HDMI Type A Female Connector, Straight
Introduction:
Engineered for demanding industrial, outdoor, and harsh-environment applications, the waterproof HDMI type a female connector delivers reliable, high-definition audio and video transmission with superior environmental protection. Featuring a standard 19-pin type a receptacle in a single-port configuration, this connector provides secure, lossless signal integrity for critical av connections exposed to moisture, dust, and contaminants.
Built with high-performance housing rated to ul94v-0 flame retardance, the connector ensures exceptional thermal and operational stability across an extreme temperature range of -55°c to +85°c. Its straight mounting orientation allows seamless pcb integration, robust mechanical alignment, and efficient assembly across medical devices, digital signage, marine systems, and industrial automation equipment.
Key Features
- Standard Interface: 19-pin HDMI Type A female receptacle (Single Port) for uncompromised high-speed digital AV signal transfer.
- Environmental Sealing: Waterproof sealing design engineered to prevent ingress of moisture, liquids, and dust particles.
- Straight Orientation: Straight PCB mounting configuration for streamlined through-hole or surface integration.
- Electrical Ratings: Rated for 0.5A operational current and 40V voltage capacity for stable low-power signal routing.
- High Flame Retardancy: UL94V-0 compliant housing material for enhanced safety and fire resistance in critical systems.
- Wide Operating Temperature: Reliable performance from -55°C to +85°C under harsh industrial conditions.
Main Specifications:
General Information:
| Product No.: | HDMI-M-S-WPH | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Straight | |
| Mounting Method: | N/A | |
| Mounting Feature: | N/A | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Waterproof HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
