Vertical UTP RJ45 Modular Jack, 8P8C, 1 Port, Tab-Down, Through Hole, No LED
Introduction:
This is a single port vertical RJ45 jack designed for stable top-entry through hole mounting on networking circuit boards. It features a durable black PBT housing that maintains high thermal stability during industrial soldering while providing a minimum insulation resistance of 500MΩ. The Phosphor Bronze contacts include a premium Gold Flash over Nickel finish to ensure superior conductivity and a standard 1.5A current rating. Utilizing a Tab-Down vertical configuration, this unshielded component effectively saves board surface area while handling dielectric voltages up to 1000 Vrms. Its robust construction ensures long-term performance across a wide industrial temperature range from -40°C to +85°C. Technicians utilize this modular interface for industrial automation systems and data networking hardware requiring vertical board-to-cable connectivity.
Key Features
- Vertical Mounting: Optimizes top-entry connectivity for compact PCB layouts.
- Gold Flash Contacts: Ensures high conductivity and signal stability.
- 8P8C UTP Interface: Provides standard unshielded links for network systems.
- Durable PBT Material: Performs reliably between -40°C and +85°C.
- 1000 Vrms Strength: Offers high dielectric withstanding voltage for safety.
Main Specifications:
General Information:
| Product No.: | MTJ-88FX1-K | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

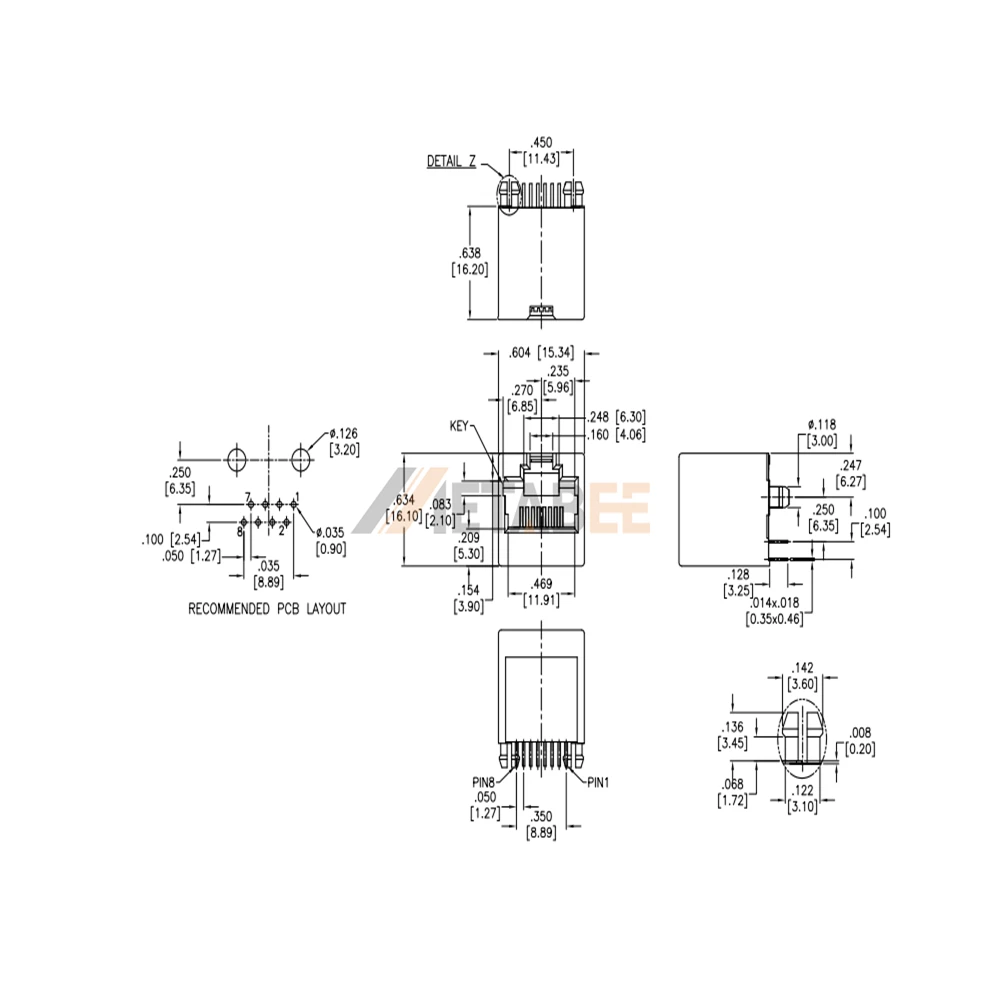

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
