Vertical Unshielded RJ45 Modular Jack Connector, 1 Port, 8P8C, Tab-Down, Through Hole, R/A, No LED
Introduction:
This is a single port vertical unshielded RJ45 modular jack connector designed for stable top-entry through hole mounting on printed circuit boards. It features a durable PBT housing available in Black, Orange, or Yellow color options to help technicians distinguish between different signal paths in complex systems. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure superior conductivity and a consistent 1.5A current rating. Utilizing a Tab-Down vertical orientation, this component optimizes board surface area while maintaining a high insulation resistance of 1000MΩ. The unit effectively withstands dielectric voltages up to 1000 VDC and operates reliably within a wide temperature range of -40°C to +85°C. Technicians utilize this modular interface for industrial automation and data networking equipment requiring vertical board-to-cable connectivity.
Key Features
- Vertical Orientation: Optimizes top-entry mounting for compact PCB designs.
- Color Selection: Available in Black, Orange, or Yellow for identification.
- Gold Plated Contacts: Ensures superior conductivity and lasting oxidation resistance.
- High Insulation Resistance: Maintains 1000MΩ Min for enhanced electrical safety.
- Durable PBT Material: Performs reliably between -40°C and +85°C.
Main Specifications:
General Information:
| Product No.: | MTJ-883X1-MP, MTJ-883X1-MP-OR, MTJ-883X1-MP-P114C | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC/125V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VDC or AC Peak for 1 minute |
Materials and Plating:
| Housing Material: | PBT | |
| Housing Color: | Black/Orange/Yellow | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack

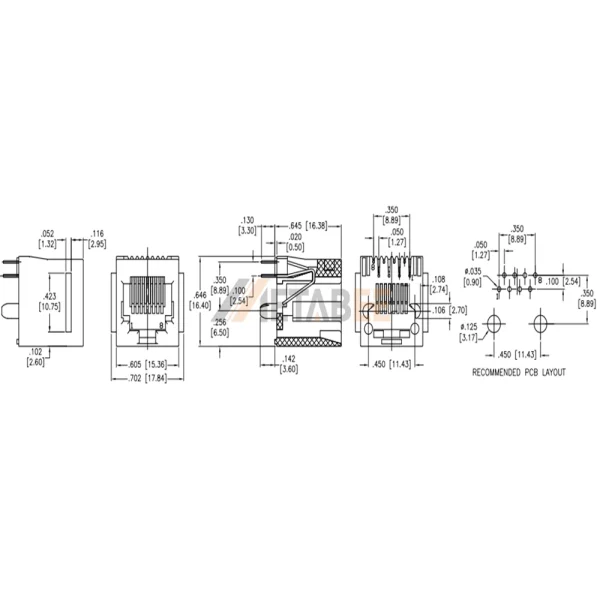

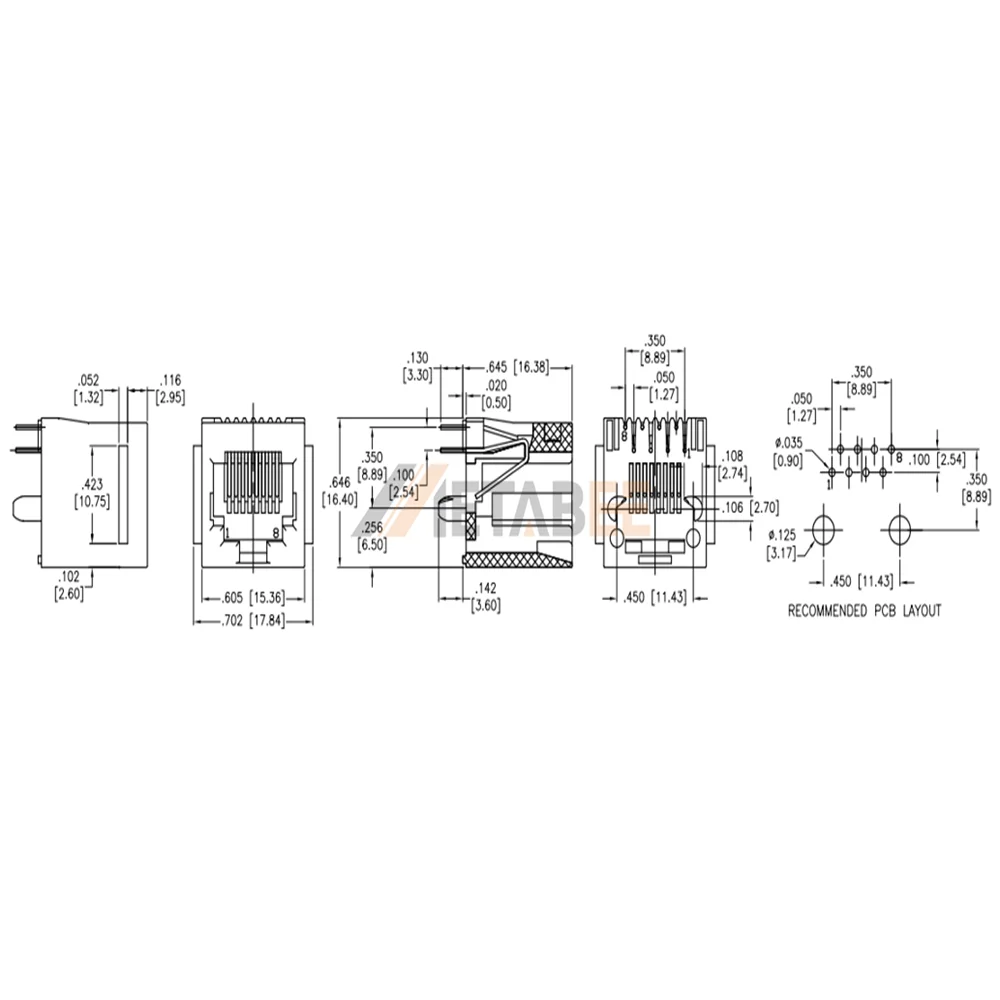

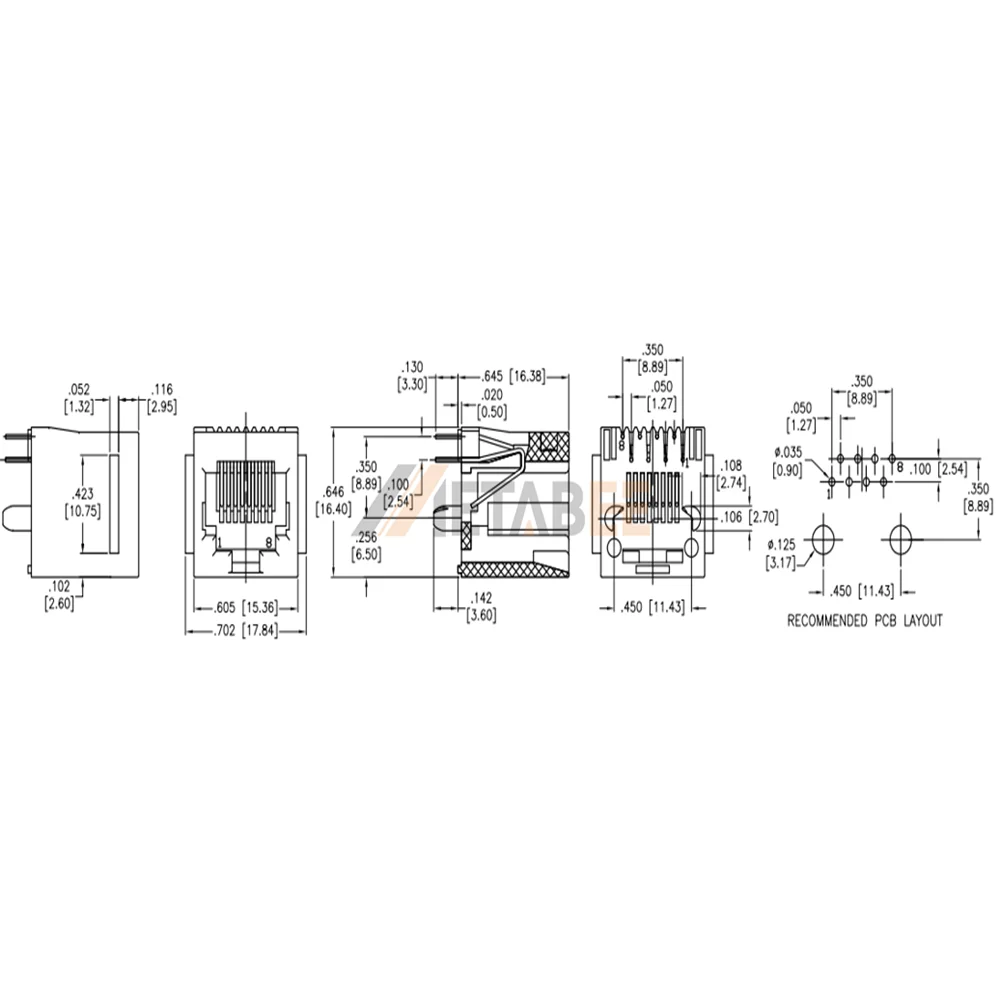

Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
