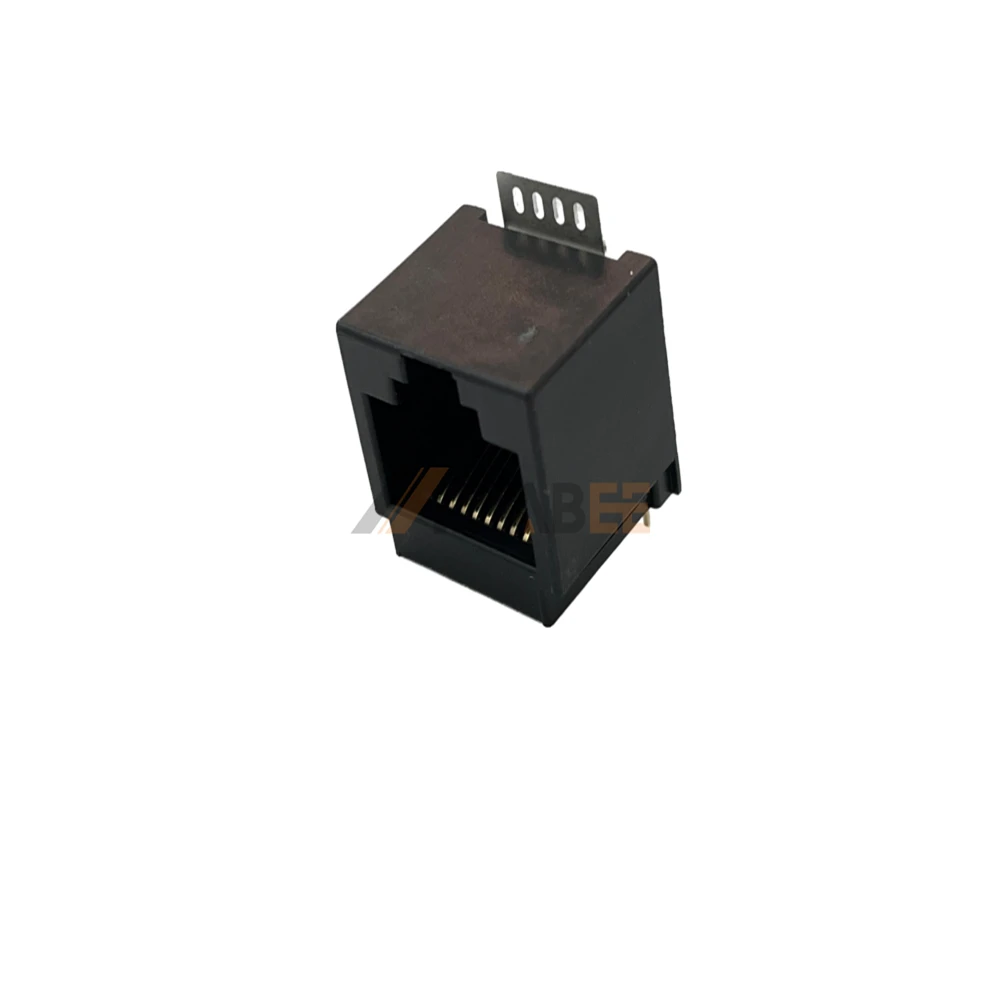

Vertical Surface Mount RJ45 Network Jack, 8P8C, 1 Port, Unshielded, Tab-Up, No LED
Introduction:
This is a single port vertical surface mount RJ45 network jack designed for high-density printed circuit boards. It features a hi-temp thermoplastic housing that maintains structural integrity during industrial reflow soldering processes without any warping. The Gold over Nickel plated Phosphor Bronze contacts ensure high conductivity and a standard 1.5A current rating for stable data transmission. Utilizing a Tab-Up vertical configuration, this component effectively saves PCB surface area while providing a minimum insulation resistance of 500MΩ. Technicians utilize this unshielded interface for compact networking equipment and telecommunication hardware requiring secure top-entry connectivity.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact PCB layouts.
- SMT Surface Mount: Facilitates efficient and automated high-speed board assembly.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Hi-Temp Material: Survives intense heat during industrial reflow soldering.
- 8P8C Modular Interface: Provides standard network communication for unshielded systems.
Main Specifications:
General Information:
| Product No.: | MTJ-88HX1 | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 Vrms for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | Phosphor Bronze |
Environmental:
| Operating Temperature: | -40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
