Introduction:
This vertical SMT spring loaded pogo pin is a surface mount connector designed for perpendicular electrical contact on a PCB. It features a round plunger and gold plated brass construction to facilitate a high current of 5A at 12V DC. The SMT termination allows for efficient automated assembly processes, while the 70g spring force ensures a reliable 1mm working stroke. With a mechanical life of 1,000,000 cycles, it maintains a low contact resistance of 20 mohms in environments ranging from -55°C to +125°C. This component serves as a robust charging or signal interface in automated industrial systems and telecommunication devices.
Key Features
- High Current: Supports 5A current for high power charging tasks.
- SMT Mounting: Surface mount design for efficient automated PCB assembly.
- Ultra Durable: Tested for 1,000,000 cycles for long mechanical longevity.
- Gold Plated: Gold plated finish ensures stable 20 mohms contact resistance.
- Round Plunger: Round plunger ensures reliable vertical contact for pins.

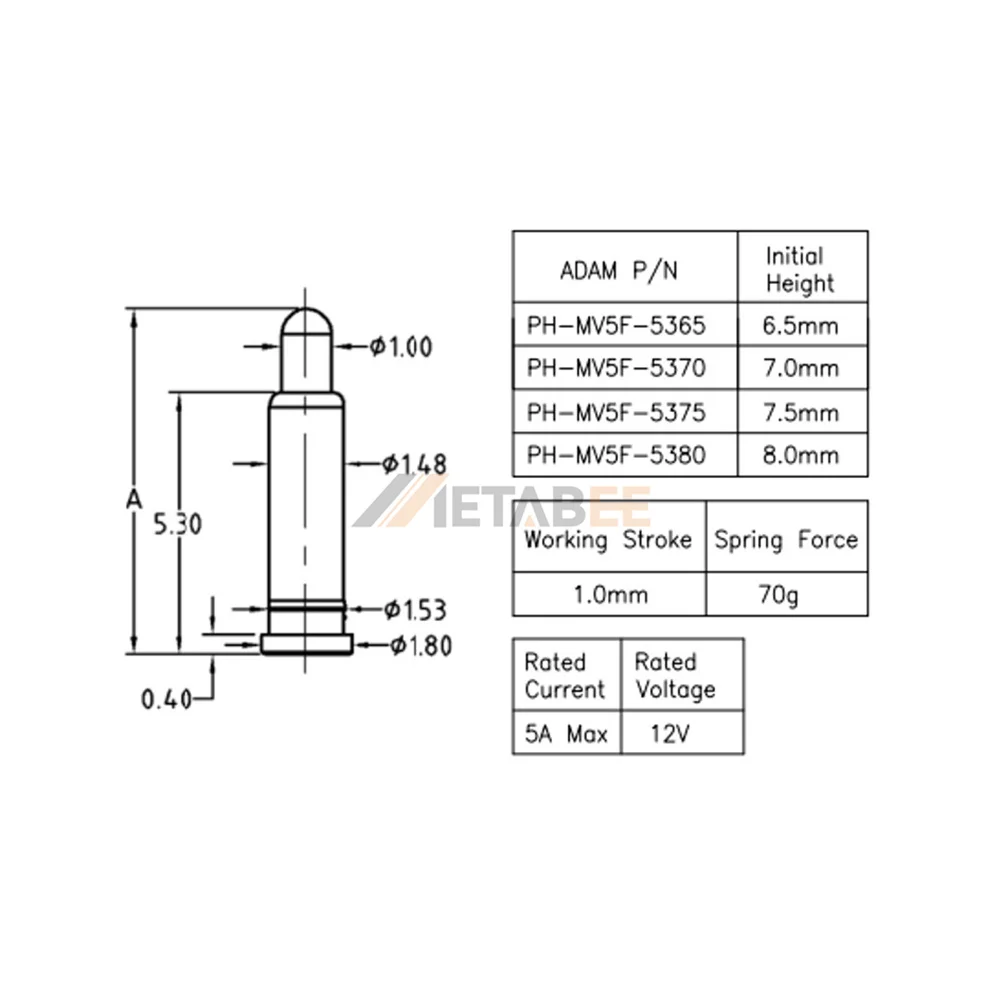

Main Specifications:
General Information:
| Product No.: | PH-MV5F-XXXX | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 6.5mm/7mm/7.5mm/8mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70gf |
Electrical:
| Rated Current: | 5A Max | |
| Rated Voltage: | 12V | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, Gold plated | |
| Barrel Material: | Brass, Gold plated | |
| Spring Material: | SUS Surface treatment |
Environmental:
| Operating Temperature: | -55°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
