Introduction:
This 3A/12V DC electrical pogo pin is a discrete spring-loaded contact terminal designed for secure wire-to-board soldering via its solder cup termination. This series provides industrial designers with multiple height configurations from 5.5mm to 8mm to accommodate various vertical clearance needs. Each pin is constructed from gold-plated brass to handle a 3A current rating while maintaining low resistance. With a robust 1,000,000 cycle lifespan and a 1mm working stroke, it offers exceptional mechanical durability. These individual pins provide a reliable signal or power link in rugged industrial systems across temperatures from -55°C to +125°C.
Key Features
- Industrial Life: 1,000,000 cycles life ensures long-term mechanical reliability.
- Current Rating: Supports 3A current for efficient power delivery.
- Solder Cup: Solder cup termination allows for secure wire soldering.
- Height Selection: Multiple initial heights available from 5.5mm to 8mm.
- Gold Plated: Gold-plated brass contacts prevent oxidation and maintain conductivity.
Main Specifications:
General Information:
| Product No.: | PH-MVS-XXXX-C1 | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Solder Cup | |
| Termination Method: | Solder | |
| Initial Height (mm): | 5.5mm-8mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70gf | |
| Life Test: | 100,000 to 1,000,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, Gold plated | |
| Barrel Material: | Brass, Gold plated | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -55°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins

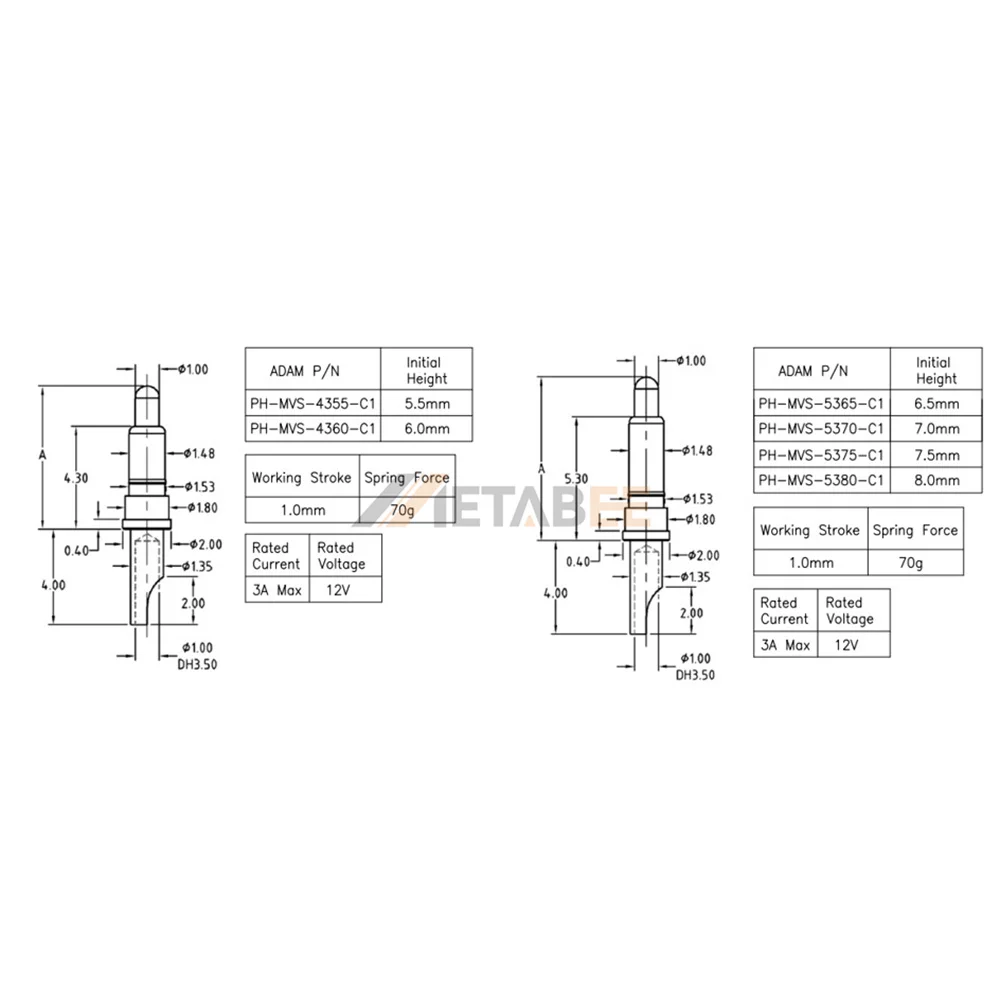

Structure of Pogo Pin Connector
