Introduction:

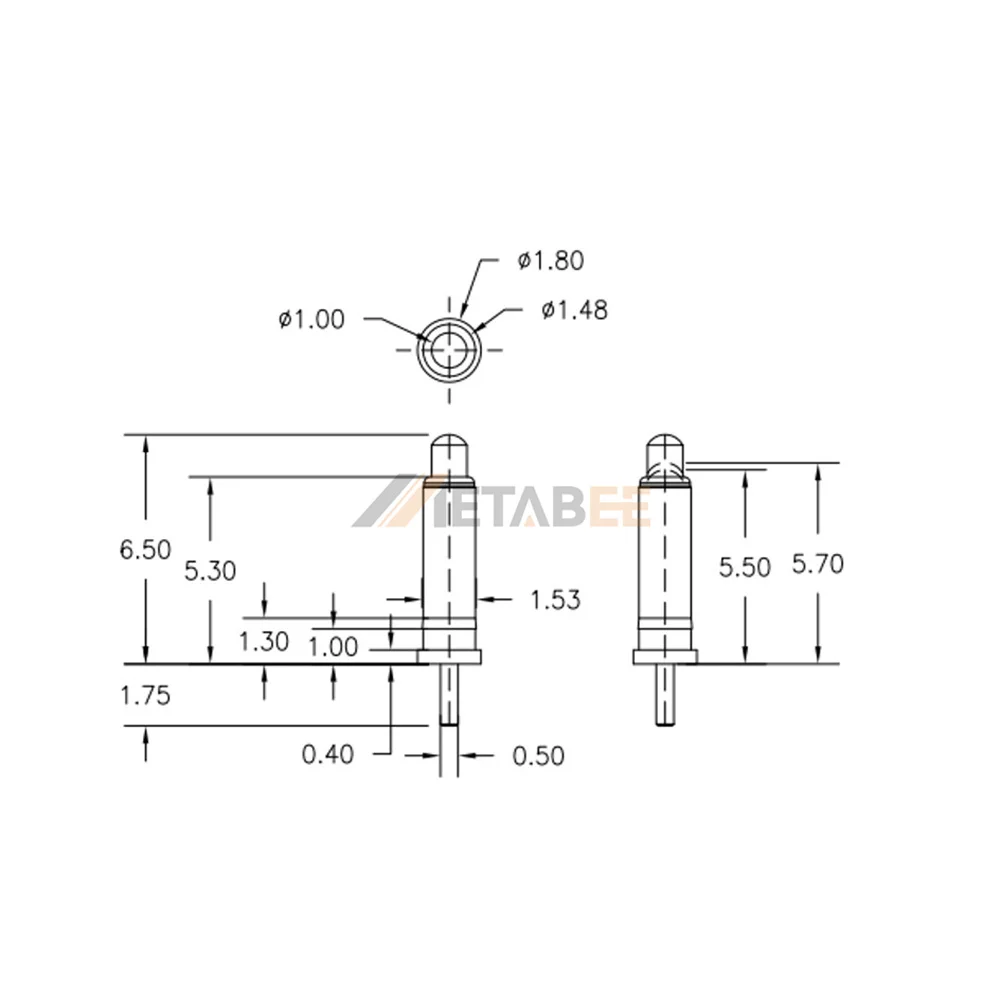

This pogo pin is a vertical spring-loaded terminal designed for secure through-hole mounting on a PCB. It stands at a 6.5mm initial height and supports a maximum current of 3A at 12V DC for power delivery. The plunger and barrel are crafted from brass with a 5u” gold plating over nickel to provide superior conductivity and corrosion resistance. With a 1mm working stroke and a tested lifespan of 30,000 cycles, it maintains stable contact pressure across its operation. This component serves as a reliable signal or power link for docking stations, portable electronics, and high-density board-to-board interfaces.
Key Features
- High Current: Supports 3A current for efficient power applications.
- Gold Plated: Thick 5u” gold plating ensures reliable conductivity.
- Secure Mounting: Vertical through hole design provides strong board retention.
- Durable Life: Tested for 30,000 cycles for long mechanical service.
- Stable Contact: 1mm stroke maintains a consistent electrical path.
Main Specifications:
General Information:
| Product No.: | PH-MVP-5365-C1 | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 6.5mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 50±20gf | |
| Life Test: | 30,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 5u” Gold plated over Nickel | |
| Barrel Material: | Brass, 5u” Gold plated over Nickel | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
