Introduction:
This spring loaded contact pogo pin is a vertical through-hole connector designed for stable PCB mounting. It features a compact 5.6mm height and supports a 3A current rating at 12V DC. The gold-plated brass construction ensures a low contact resistance of 20 mohms across its 1,000,000 cycle lifespan. With a 1mm working stroke and 70gf spring force, it maintains consistent electrical conductivity. This component provides a durable power or signal link in portable electronics and industrial systems requiring secure DIP termination and high mechanical reliability.
Key Features
- Long Life: Tested for 1,000,000 cycles ensuring mechanical durability.
- Secure Mounting: Through hole design offers strong board retention force.
- High Rating: Supports 3A current for efficient power applications.
- Gold Plated: Gold plating over brass maintains 20 mohms resistance.
- Precise Stroke: 70gf force maintained over a 1mm working stroke.

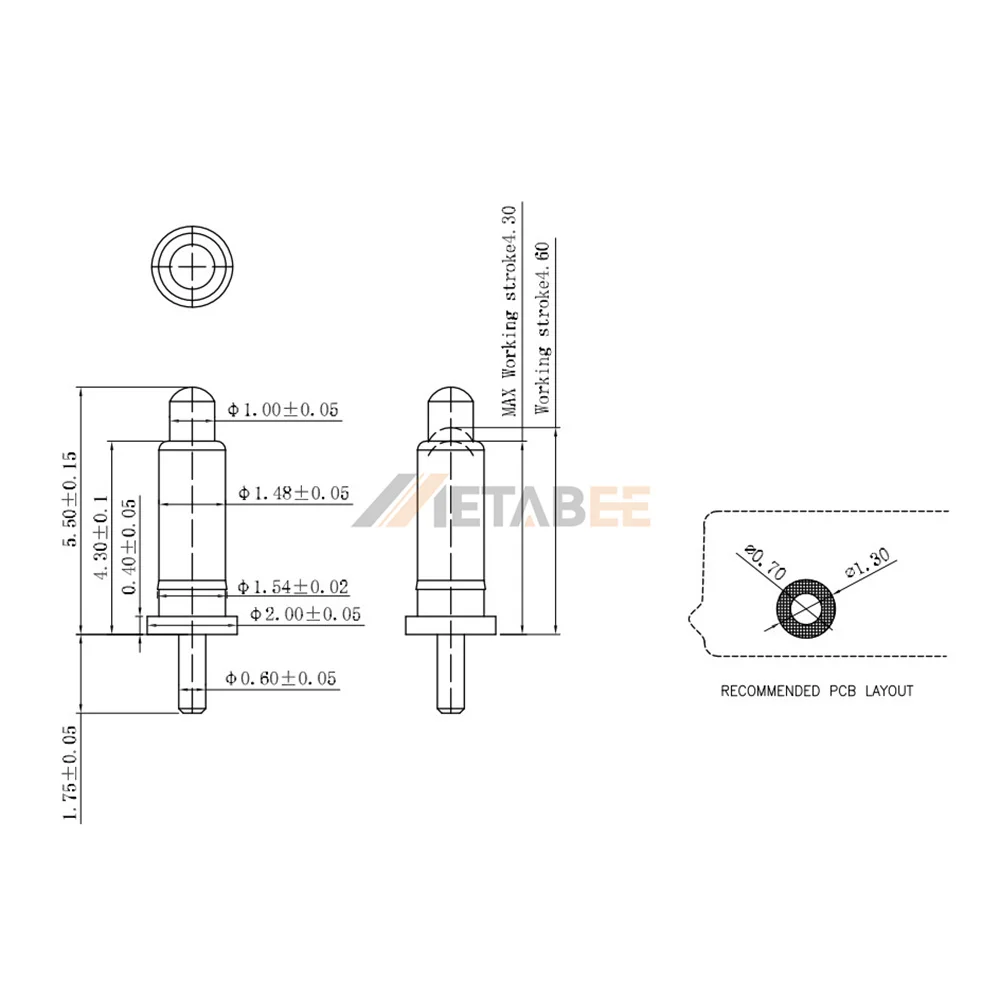

Main Specifications:
General Information:
| Product No.: | PH-MVP-4355-C1 | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 5.6mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf | |
| Life Test: | 1,000,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 3u” Gold plated | |
| Barrel Material: | Brass, 3u” Gold plated | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
