Introduction:
This vertical spring contact pin terminal is designed for durable through-hole mounting on printed circuit boards. It stands at 6.75mm initial height and supports a 3A rated current for power applications. The brass components feature 3u” Gold plating to prevent oxidation and ensure stable conductivity over a 10,000 cycle lifespan. With a 1mm working stroke and 70gf spring force, it maintains a secure electrical path between board components. This terminal functions as a reliable power or signal link in consumer electronics and handheld industrial devices.
Key Features
- Power Rating: Supports 3A current for efficient power delivery.
- Secure Mounting: Through hole design provides strong board retention.
- Gold Plated: Gold plated brass ensures stable contact resistance.
- Stable Contact: Reliable 70gf spring force maintains consistent connectivity.
- Wide Range: Operates reliably across -30°C to +85°C range.
Main Specifications:
General Information:
| Product No.: | PH-MVP-3350-C1 | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |

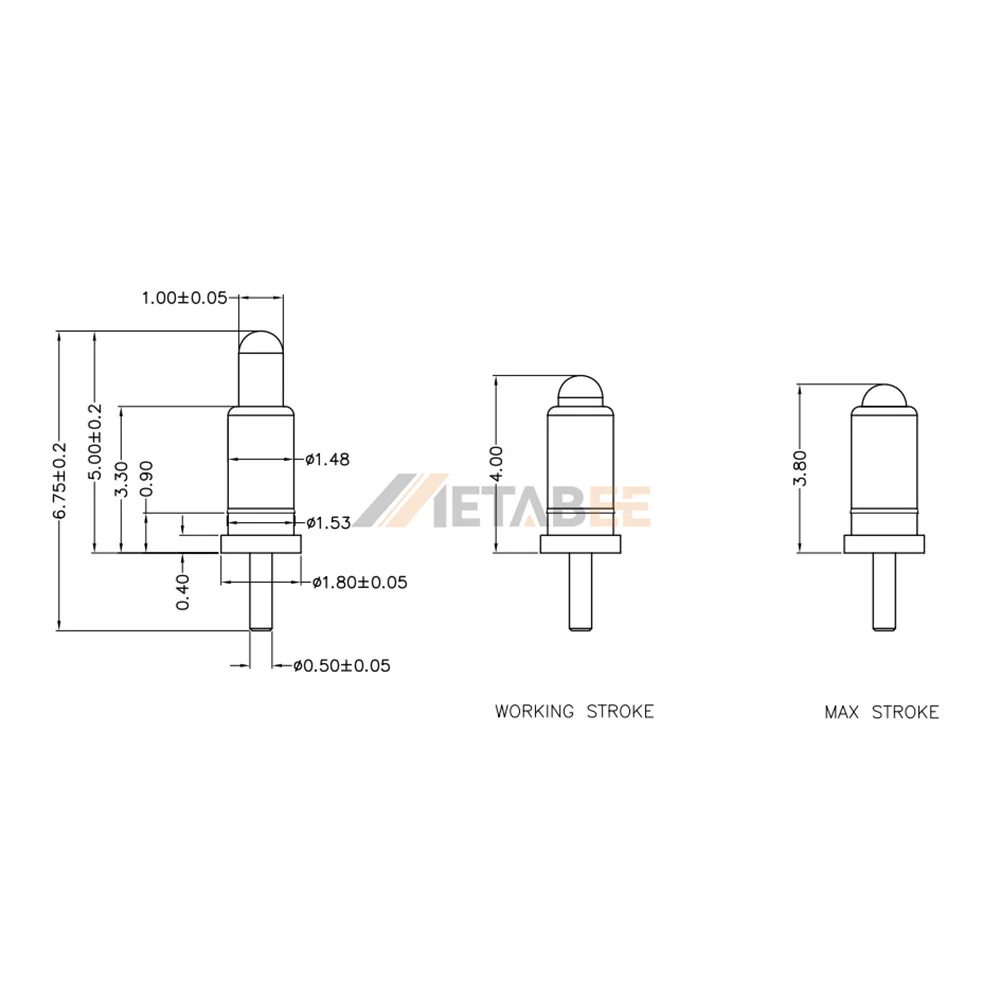

| Initial Height (mm): | 6.75mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±15gf | |
| Life Test: | 10,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 30mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, 3u” Gold plated | |
| Barrel Material: | Brass, 3u” Gold plated | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -30°C to +85°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
