Introduction:
Gold plated rolling threaded pogo pins are precision-engineered discrete contacts designed for screw-in mounting within electronic housings or test fixtures. This component series offers significant design versatility with initial height options ranging from 5.5mm to 8.0mm to facilitate precise vertical clearance management. The threaded termination provides a secure mechanical connection that is easily replaceable, supporting a 3A current rating and 12V DC power delivery. With a 1,000,000 cycle industrial lifespan and a 1mm working stroke, these pins maintain a stable contact resistance of 20 mohms. They serve as durable electrical interfaces for modular devices operating in extreme environments from -55°C to +125°C.
Key Features
- Threaded Design: Screw-in mounting for secure and replaceable connections.
- Industrial Life: 1,000,000 cycles ensure long-term mechanical reliability.
- Multiple Heights: Choose discrete pins from 5.5mm to 8.0mm.
- Reliable Rating: Supports 3A current flow for efficient power.
- Gold Plated: Brass construction maintains low 20 mohms resistance.

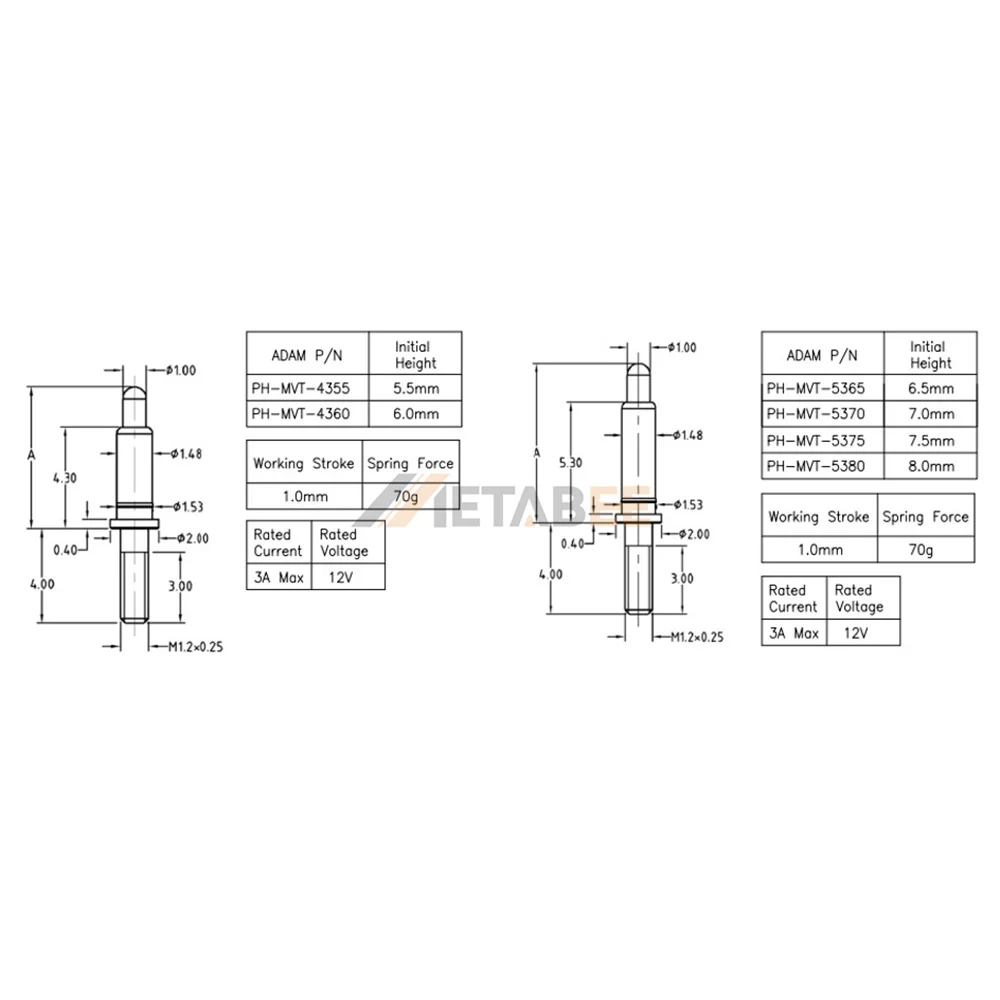

Main Specifications:
General Information:
| Product No.: | PH-MVT-XXXX | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Threaded | |
| Termination Method: | Solder | |
| Initial Height (mm): | 5.5mm-8mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70gf | |
| Life Test: | 1,000,000 Cycles |
Electrical:
| Rated Current: | 3A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 20mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, Gold plated | |
| Barrel Material: | Brass, Gold plated | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -55°C to +125°C | |
| Flammability Rating: | UL 94 V-0 |
Types of Pogo Pins
Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
