Introduction:
This dip pogo pin is a vertical spring-loaded terminal designed for high-power electrical connections. It features a through hole termination style that ensures a strong mechanical bond to the PCB. The connector is rated for 5A continuous current and 12V DC, utilizing brass components with gold over nickel plating to maintain electrical integrity. With a 1mm working stroke and 70±20gf spring force, it maintains consistent conductivity throughout its 50,000 cycle lifespan. This terminal functions as a reliable power interface in industrial automation and high-current charging docking stations within a -40°C to +105°C range.
Key Features
- High Current: Supports 5A current for efficient power delivery.
- Secure Mounting: Through hole DIP design provides strong board retention.
- Durable Life: Tested for 50,000 cycles ensuring mechanical service life.
- Stable Contact: Gold over nickel plating maintains stable contact resistance.
- Rugged Performance: Functions reliably in -40°C to +105°C industrial environments.

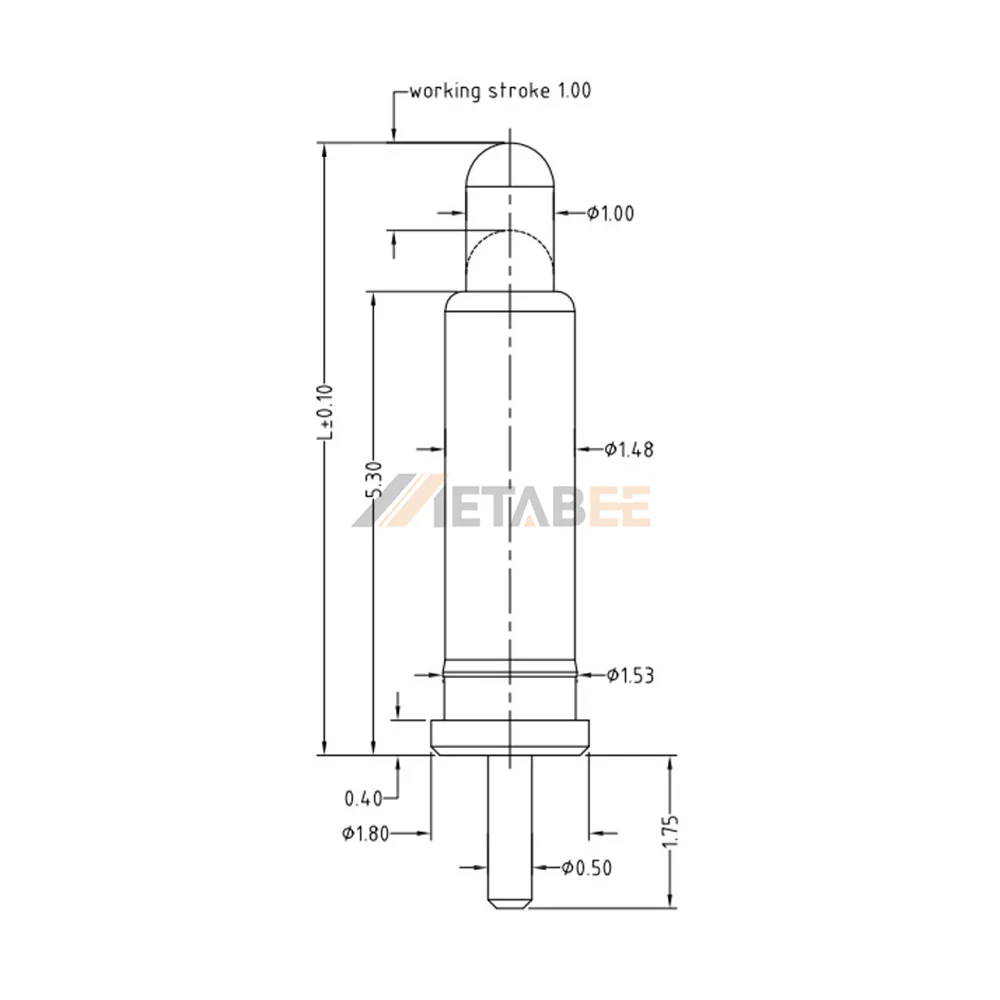

Main Specifications:
General Information:
| Product No.: | PH-MVP-53XX-T/R-CF | |
| Product Family: | Spring Loaded Pins | |
| Number of Positions/Contacts: | 1 | |
| Gender: | Male | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Surface Mount | |
| Termination Method: | Solder | |
| Initial Height (mm): | 6.5mm/7mm/7.5mm/8mm | |
| Working Stroke (mm): | 1mm | |
| Spring Force: | 70±20gf | |
| Life Test: | 50,000 Cycles |
Electrical:
| Rated Current: | 5A Max | |
| Rated Voltage: | 12V DC | |
| Contact Resistance: | 50mΩ Max |
Materials and Plating:
| Plunger Material: | Brass, Gold over Nickel plated | |
| Barrel Material: | Brass, Gold over Nickel plated | |
| Spring Material: | SUS304 |
Environmental:
| Operating Temperature: | -40°C to +105°C | |
| Flammability Rating: | UL 94 V-0 |

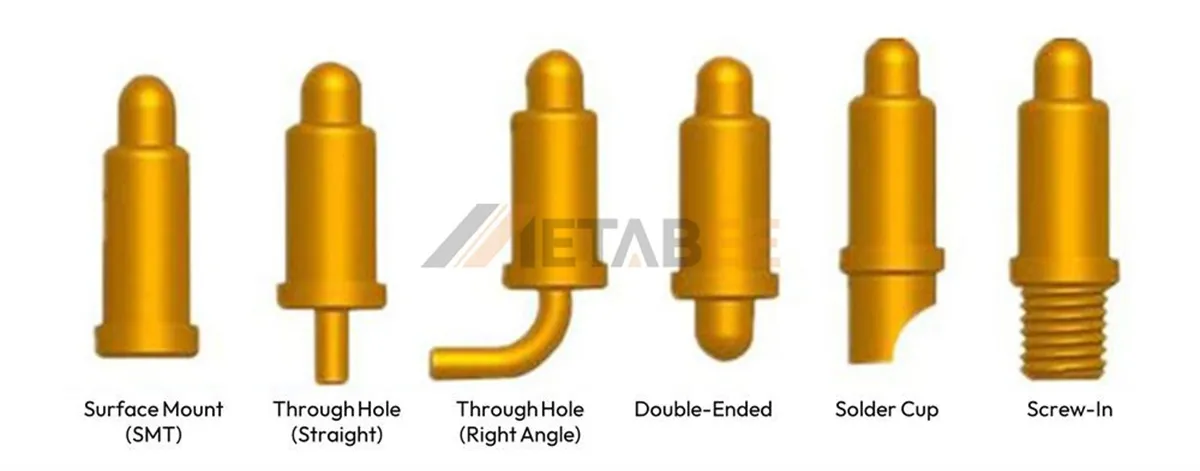

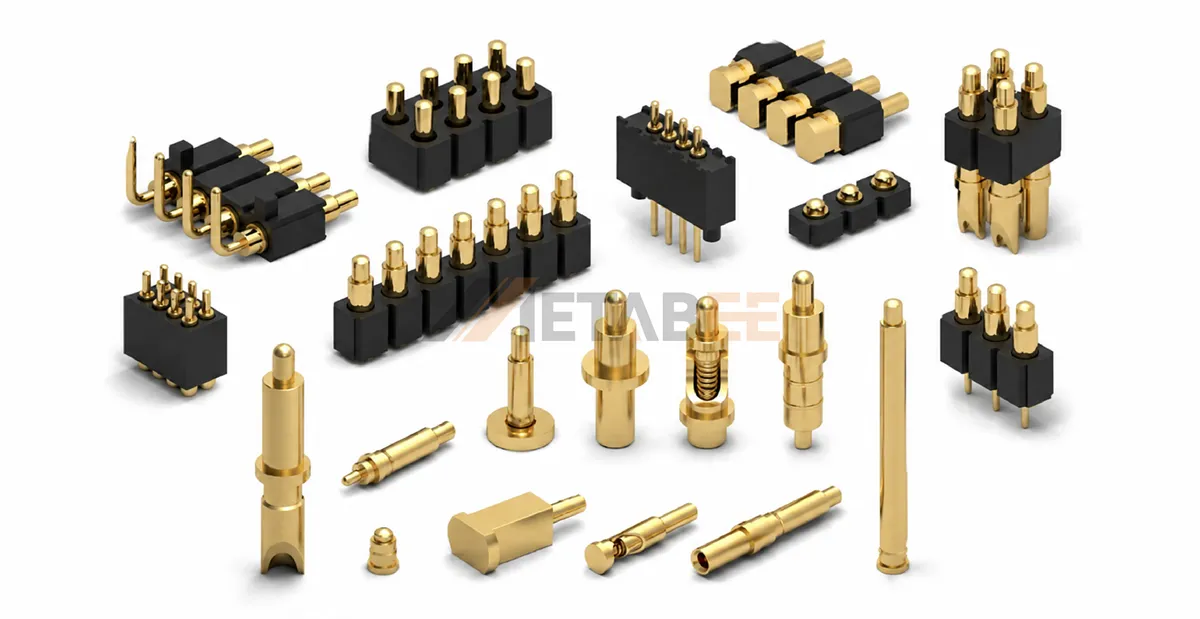

Types of Pogo Pins

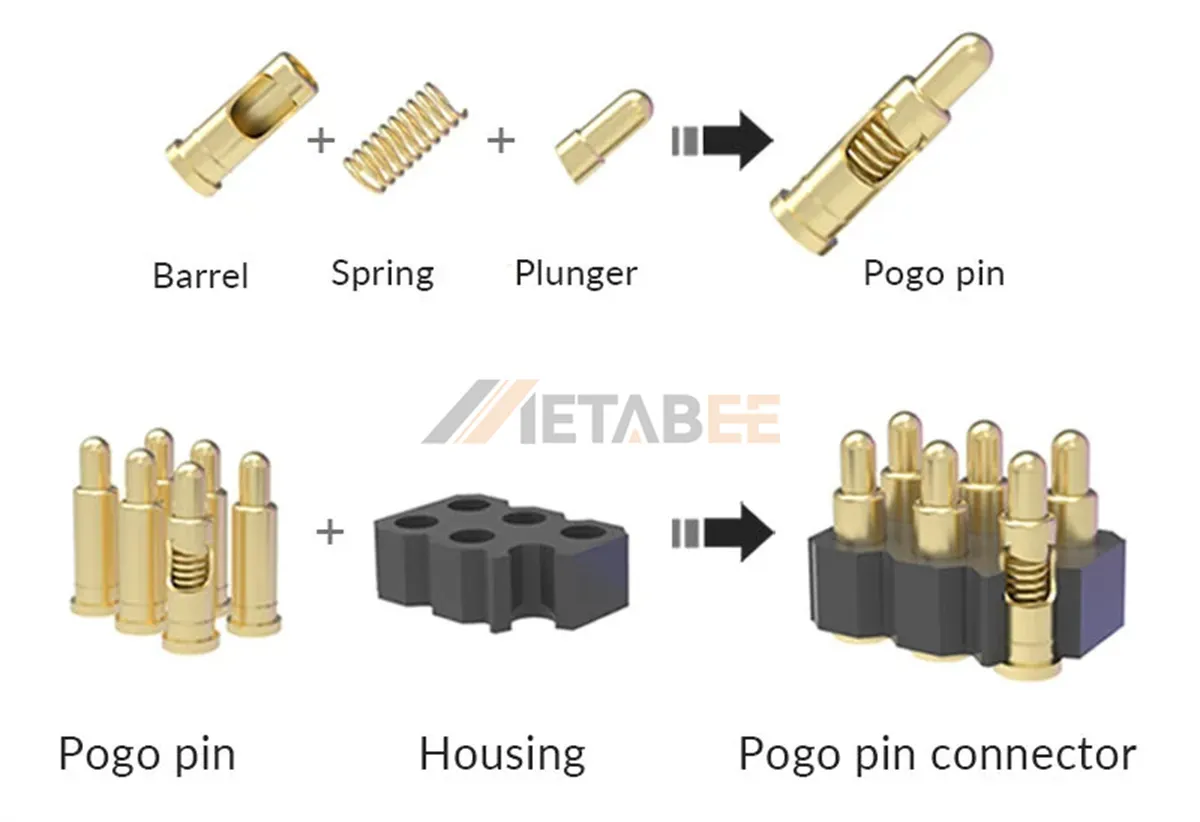

Structure of Pogo Pin Connector
Applications:
Pogo pin connectors, also known as spring-loaded pin connectors, provide reliable electrical contact for power, signal, and data transmission. Their spring-loaded design enables stable connections and repeated mating cycles.
- Consumer Electronics
- Wearable Devices
- Charging Docks & Cradles
- Smart Home & IoT Devices
- Medical Equipment
- Industrial Automation
- Automotive Electronics
- Custom OEM & ODM Solutions
