Vertical RJ45 Connector 8 Pin Socket, 8P8C, 1 Port, Unshielded, Tab-Up, Through Hole, Yellow/Green
Introduction:
This is a single port vertical rj45 connector socket 8pin designed for stable top-entry through hole mounting on printed circuit boards. It features a high-temperature thermoplastic housing in a distinctive Red Pantone P485U finish to help technicians distinguish specific signal ports during complex hardware assembly. The Phosphor Bronze contacts are finished with Gold over Nickel plating to ensure superior conductivity and a standard 1.5A current rating. Utilizing a Tab-Up configuration and integrated Yellow and Green LEDs, this unit optimizes board surface area while offering immediate link diagnostics. The unshielded design handles operating temperatures from -40°C to +70°C and maintains a high insulation resistance of 500MΩ Min. Technicians utilize this reliable modular interface for networking gear and industrial automation systems requiring secure vertical board-to-cable connectivity.
Key Features
- Vertical Mounting Design: Facilitates stable top-entry connectivity on compact PCBs.
- Integrated Diagnostic LEDs: Yellow and Green lights show network activity.
- Red Pantone P485U Housing: Distinctive color allows for easy port identification.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- High-Temp Thermoplastic: Robust housing withstands intense industrial assembly heat.
Main Specifications:
General Information:
| Product No.: | MTJ-88DX1-N-LG-P485U-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ45 Jack | |
| Product Type: | RJ45 Jack | |
| Number of Positions/Contacts: | 8P8C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | Left: Yellow, Right: Green |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 30mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | Hi-temp thermoplastic | |
| Insulator Color: | Red, Pantone P485U | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | -40℃ to +70℃ | |
| Flammability Rating: | UL 94 V-0 |

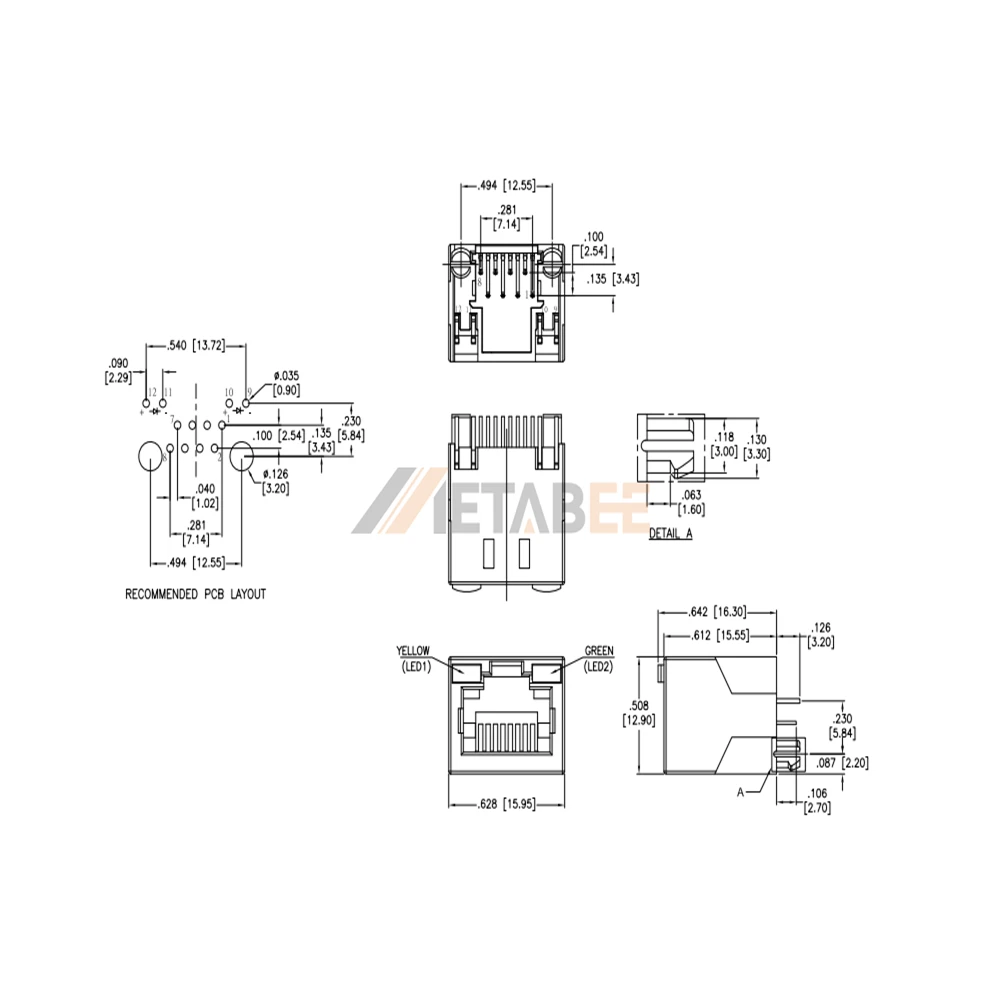

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
