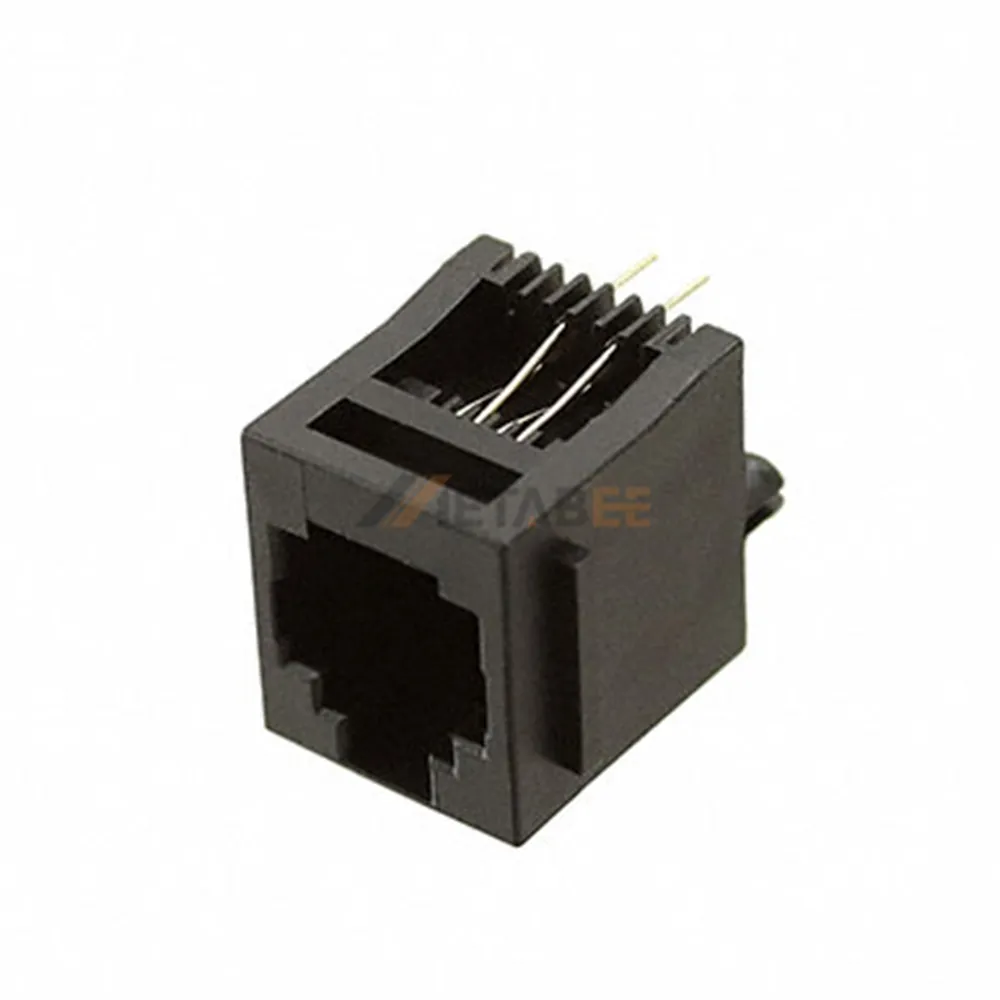

Vertical RJ11 6P4C Phone Connector PCB Jack, 1 Port, Unshielded, Through Hole, Tab-Up, No LED
Introduction:
This is a single port vertical RJ11 6P4C phone connector designed for stable top-entry through hole mounting on printed circuit boards. It utilizes a durable black PBT or hi-temp thermoplastic housing that ensures structural stability while maintaining a minimum insulation resistance of 1000 mohms. The Phosphor Bronze contacts feature premium Gold plating to provide superior conductivity for consistent 1.5A voice signals. Utilizing a Tab-Up configuration, the unshielded jack effectively optimizes board space and handles peak dielectric voltages up to 1500 VDC. Technicians utilize this reliable socket for standard telephone systems and industrial communication gear requiring vertical cable access.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact PCB layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- High Insulation Resistance: Maintains 1000 mohms for enhanced electrical safety.
- 6P4C Modular Interface: Supports standard RJ11 and RJ14 voice systems.
- Durable Thermoplastic Material: Performs reliably across standard industrial temperature ranges.
Main Specifications:
General Information:
| Product No.: | MTJ-643X1, MTJ-643X1-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P4C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Up | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 1000mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC or 1500 VDC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |

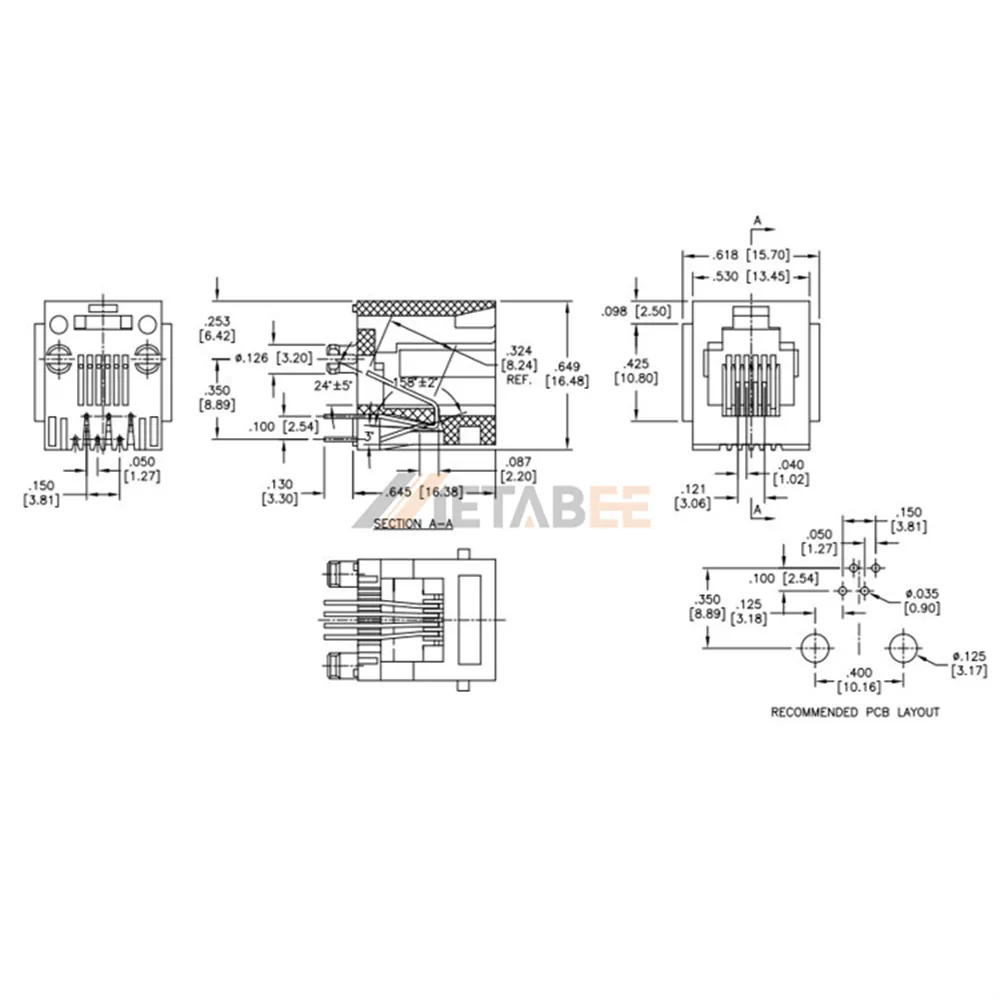

Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
