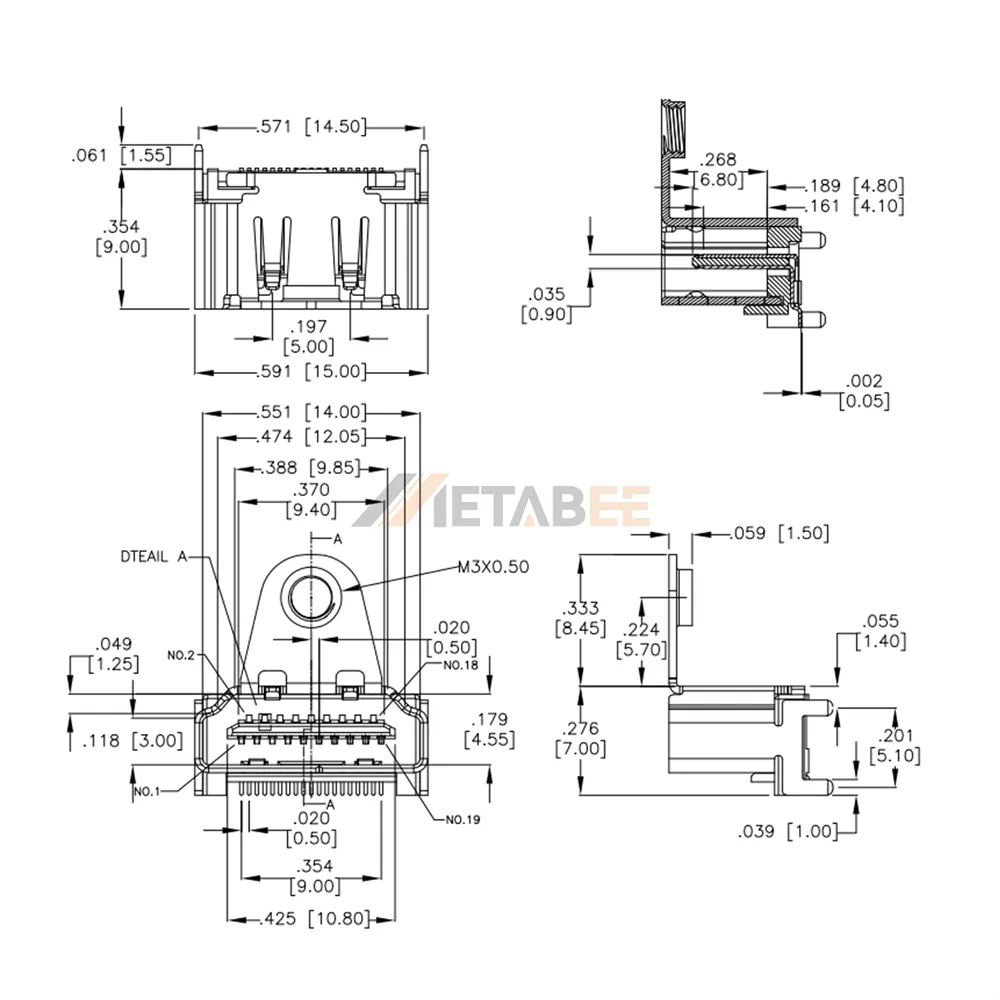

Vertical HDMI Type A Receptacle, 19 Pin, SMT
Introduction:
This vertical hdmi type a receptacle is a 19-pin single-port connector designed for reliable pcb surface mount applications. Featuring a receptacle interface and right-angle configuration, it provides secure connectivity and efficient board-level integration for electronic equipment requiring stable hdmi signal transmission.
With a rated current of 0.5a and rated voltage of 40v, this connector delivers dependable electrical performance in a wide range of applications. The ul94-v0 flame-retardant construction enhances safety, while the -55°c to 85°c operating temperature range supports reliable operation in demanding environments.
Key Features
- Type A interface for versatile compatibility with HDMI devices.
- 19 pins for comprehensive data transmission and video quality.
- Right-angle mounting orientation for efficient space utilization.
- Rated current of 0.5A and voltage of 40V for reliable performance.
- UL94V-0 flame retardant rating for enhanced safety.
- Operating temperature range of -55°C to 85°C, ensuring durability in various environments.
Main Specifications:
General Information:
| Product No.: | HDMI-S-V-TSMT-MF-15-TR | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Vertical HDMI Type A Receptacle:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
