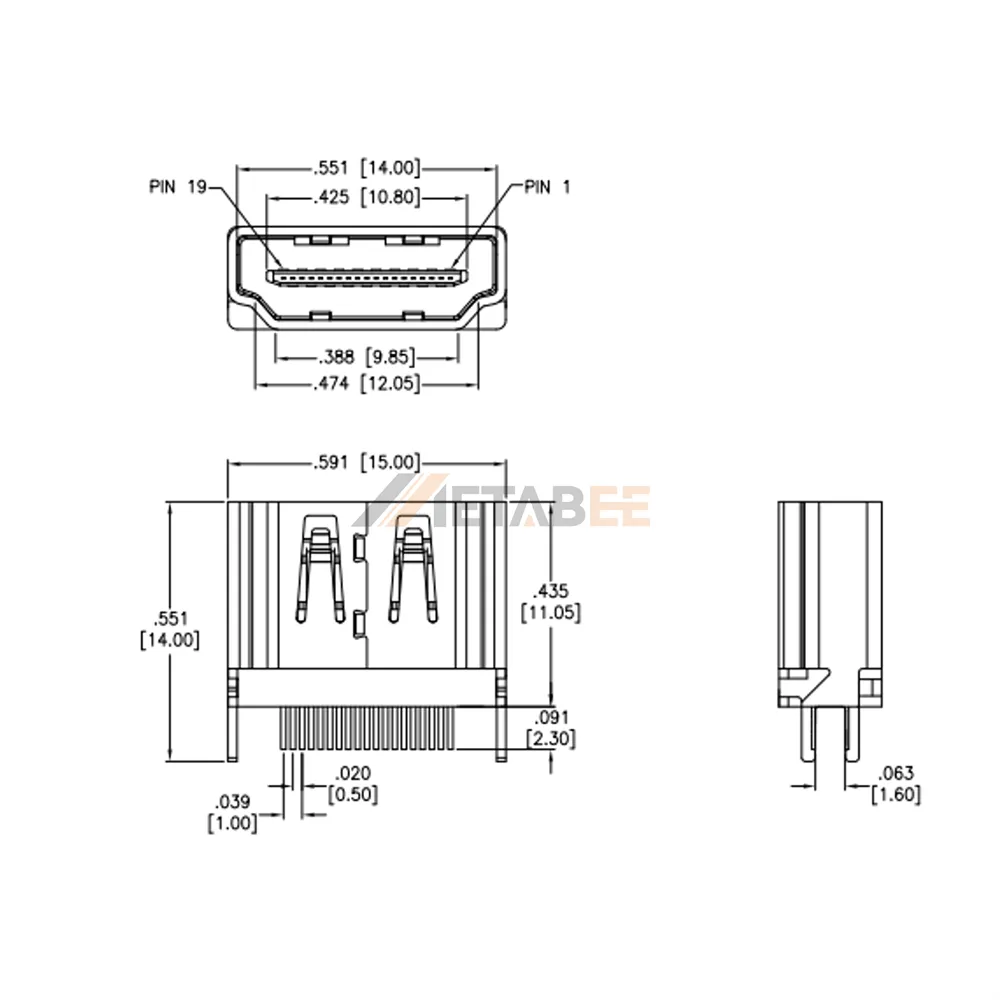

Vertical HDMI Type A Female PCB Connector, Thru Hole
Introduction:
Deliver reliable high-definition digital audio and video transmission with this robust 19-pin hdmi type a female receptacle. Designed with through-hole pcb mounting, this single-port connector provides superior mechanical retention and solder joint strength, making it ideal for high-stress interfaces in industrial displays, gaming consoles, and audio-visual equipment.
Its space-efficient right-angle mounting orientation ensures clean board edge integration while simplifying cable routing. Engineered for harsh operating environments, the connector features an electrical rating of 0.5 a and 40 v, durable ul94v-0 flame-retardant housing, and stable performance across an extreme temperature range of -55°c to 85°c.
Key Features
- Interface: Standard 19-pin type a female single-port receptacle.
- Mounting style: Right-angle pcb through-hole for maximum joint strength.
- Current rating: 0.5 a per pin for stable power transmission.
- Voltage rating: 40 v operational rating.
- Flame resistance: Ul94v-0 certified thermoplastic housing for safety.
- Operating range: Wide thermal endurance from -55°c to 85°c.
Main Specifications:
General Information:
| Product No.: | HDMI-S-V-1-SM | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Thru Hole | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Vertical HDMI Type A Female PCB Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
