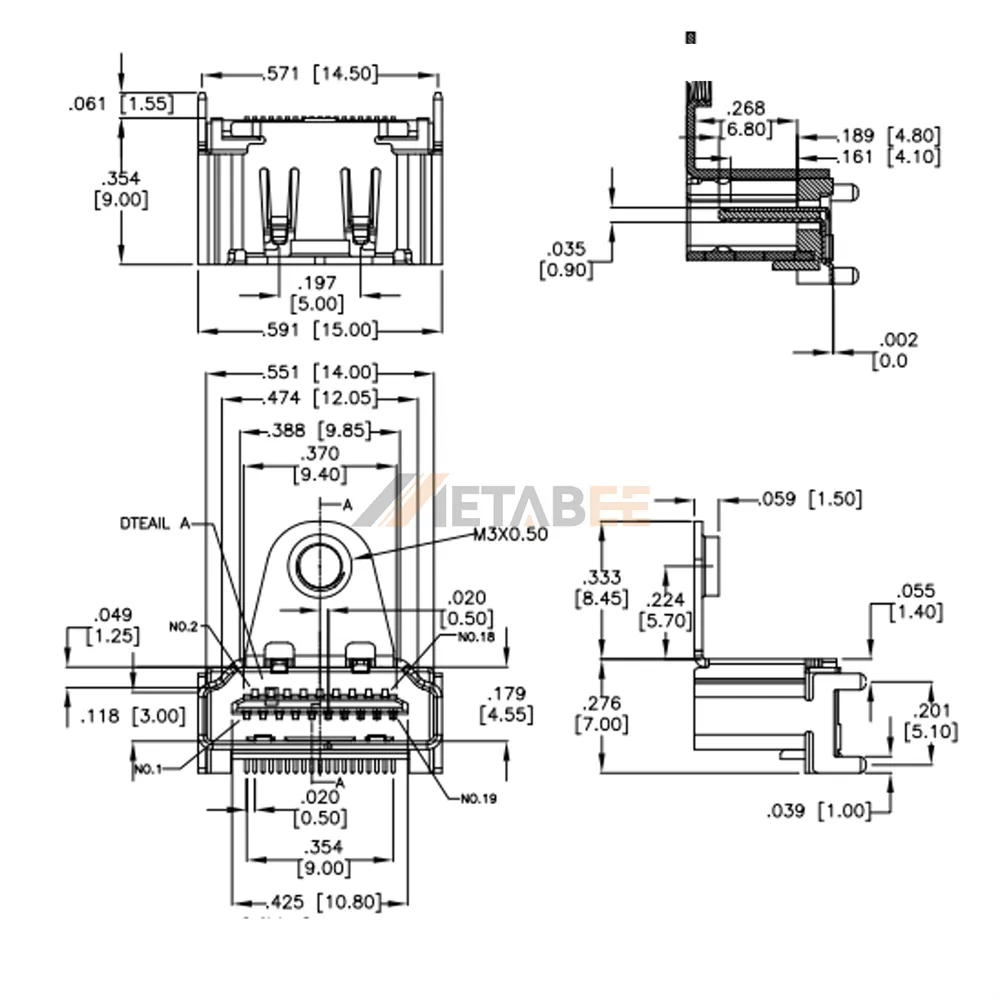

Vertical HDMI Type A Female Connector for PCB, SMT
Introduction:
Deliver high-definition multimedia connectivity with this precision-engineered 19-pin hdmi type a female receptacle. Designed for efficient surface mount technology (smt), this single-port pcb connector ensures low-loss digital audio and video transmission across modern consumer electronics, embedded systems, and commercial multimedia displays.
Featuring a space-efficient right-angle mounting orientation, it provides excellent mechanical stability while optimizing edge-of-board layout efficiency. Built for consistent operation under demanding environmental conditions, the connector features an electrical rating of 0.5 a and 40 v, safe ul94v-0 flame-retardant construction, and an operating temperature range of -55°c to 85°c.
Key Features
- Interface: Standard 19-pin type a female receptacle (single-port).
- Mounting style: Right-angle pcb surface mount for low-profile layouts.
- Current rating: 0.5 a continuous load capacity per contact.
- Voltage rating: 40 v rated operational performance.
- Safety rating: Ul94v-0 certified flame-retardant housing.
- Operating range: Broad thermal resistance from -55°c to 85°c.
Main Specifications:
General Information:
| Product No.: | HDMI-S-V-TSMT-MF | |
| Connector Series: | HDMI Connectors | |
| Connector Type: | Type A | |
| Brand: | Metabee | |
| Number of Contacts: | 19 Pin | |
| Number of Ports: | Single Port | |
| Connector Gender: | Receptacle | |
| Contact Termination: | Solder | |
| Mounting Orientation: | Vertical | |
| Mounting Method: | PCB Mount | |
| Mounting Feature: | Surface Mount | |
| Mating Cycles: | ＞10000 Times | |
| Other Feature: | None |
Materials and Plating:
| Shell Material: | Phosphor Bronze | |
| Shell plating: | Nickel Plated | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | N/A | |
| Insulator: | Hi-Temp Thermoplastic |
Electrical Performance:
| Rated Current: | 0.5A | |
| Rated Voltage: | 40V |
Environmental Performance:
| Flammability Rating: | UL 94 V-0 | |
| Operating Temperature: | -55℃ to +85℃ |
Applications of this Vertical HDMI Type A Female Connector:
HDMI (High-Definition Multimedia Interface) connectors transmit uncompressed digital video and multi-channel audio over a single interface.
Here are some key applications:
- Consumer Televisions & Home Theater Systems
- Gaming Consoles & High-Refresh Displays
- Personal Computers & Graphics Processing Units (GPUs)
- Professional Broadcasting & Studio Equipment
- Digital Cameras & Camcorders
- Medical Imaging Systems
- Commercial Digital Signage & Video Walls
- Automotive Infotainment & Rear-Seat Entertainment
- Embedded Systems & Single-Board Computers (SBCs)
- Commercial Projectors & Conference Room Presentation Hubs
