Vertical 6P6C RJ11 Phone Connector Socket, Single Port, Unshielded, Through Hole, Tab-Down, No LED
Introduction:
This is a single port vertical 6P6C RJ11 phone connector socket designed for stable top-entry through hole mounting on printed circuit boards. It features a durable black PBT or hi-temp PA9T thermoplastic housing that ensures high thermal stability during industrial soldering while providing 500 mohms minimum insulation resistance. The Phosphor Bronze contacts include a premium Gold finish to maintain high conductivity for a standard 1.5A current rating. Utilizing a Tab-Down vertical configuration, this component effectively saves board space while handling dielectric voltages up to 1000 VAC. Technicians utilize this reliable unshielded interface for telecommunication gear and networking hardware requiring secure vertical board-to-cable connectivity.
Key Features
- Vertical Mounting Design: Optimizes top-entry connectivity for compact board layouts.
- Gold Plated Contacts: Ensures superior conductivity and lasting signal stability.
- Hi-Temp Material: PA9T option survives intense industrial soldering heat.
- 6P6C RJ11 Interface: Provides standard modular connectivity for voice systems.
- Industrial Temp Range: Performs reliably between -40°C and +85°C.

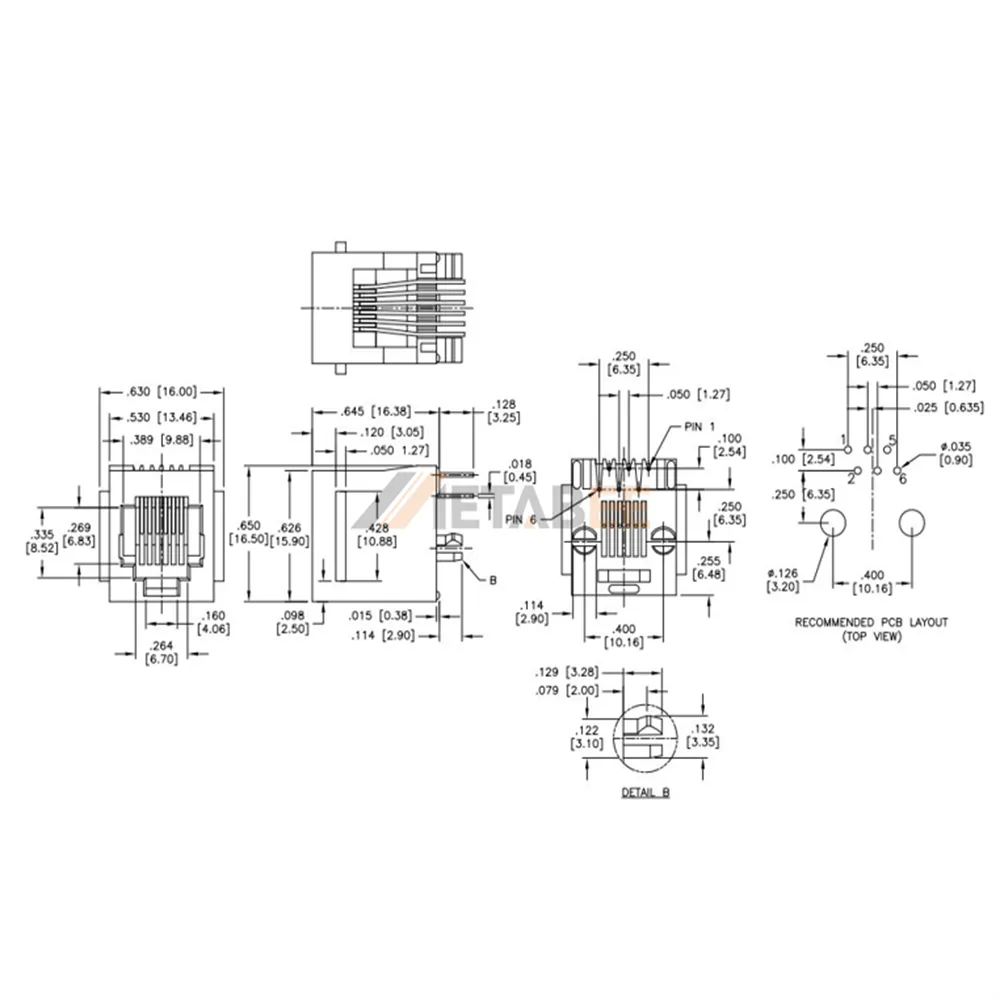

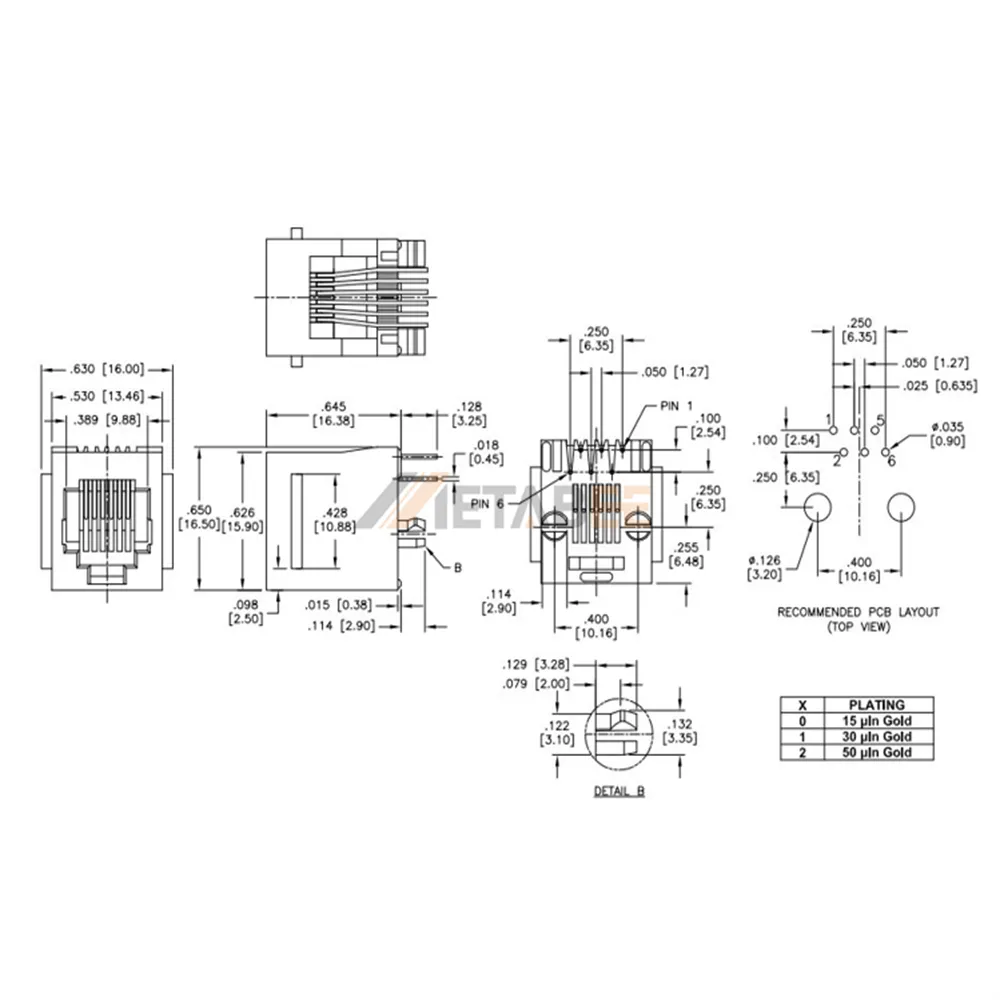

Main Specifications:
General Information:
| Product No.: | MTJ-663X1-SP, MTJ-663X1-SP-HT | |
| Series: | MTJ | |
| Category: | Single Port RJ11 Jack | |
| Product Type: | Jack | |
| Number of Positions/Contacts: | 6P6C | |
| Number of Ports: | 1×1 Port | |
| Mounting Orientation: | Vertical | |
| Mounting Type: | Through Hole | |
| Termination Method: | Solder | |
| Latch Direction: | Tab-Down | |
| Shielding: | Unshielded | |
| LED indicator: | No LED |
Electrical:
| Rated Current: | 1.5A | |
| Rated Voltage: | 150V AC | |
| Contact Resistance: | 20mΩ Max | |
| Insulation Resistance: | 500mΩ Min | |
| Dielectric withstanding voltage: | 1000 VAC for 1 minute |
Materials and Plating:
| Insulator Material: | PBT / Hi-temp thermoplastic (PA9T) | |
| Insulator Color: | Black | |
| Contact Material: | Phosphor Bronze | |
| Contact Plating: | Gold over Nickel Plated | |
| Shield Material: | N/A |
Environmental:
| Operating Temperature: | 40℃ to +85℃ | |
| Flammability Rating: | UL 94 V-0 |
Structure of Modular Jack
Engineering Options of RJ45 Modular Jack
Applications:
- Data Center Servers & Storage
- High-End Network Switches
- Industrial Ethernet Systems
- 5G Wireless Infrastructure
- IP Security and Surveillance
- Medical Imaging Equipment
- Smart Home and IoT Gateways
- Consumer Electronics and Gaming
